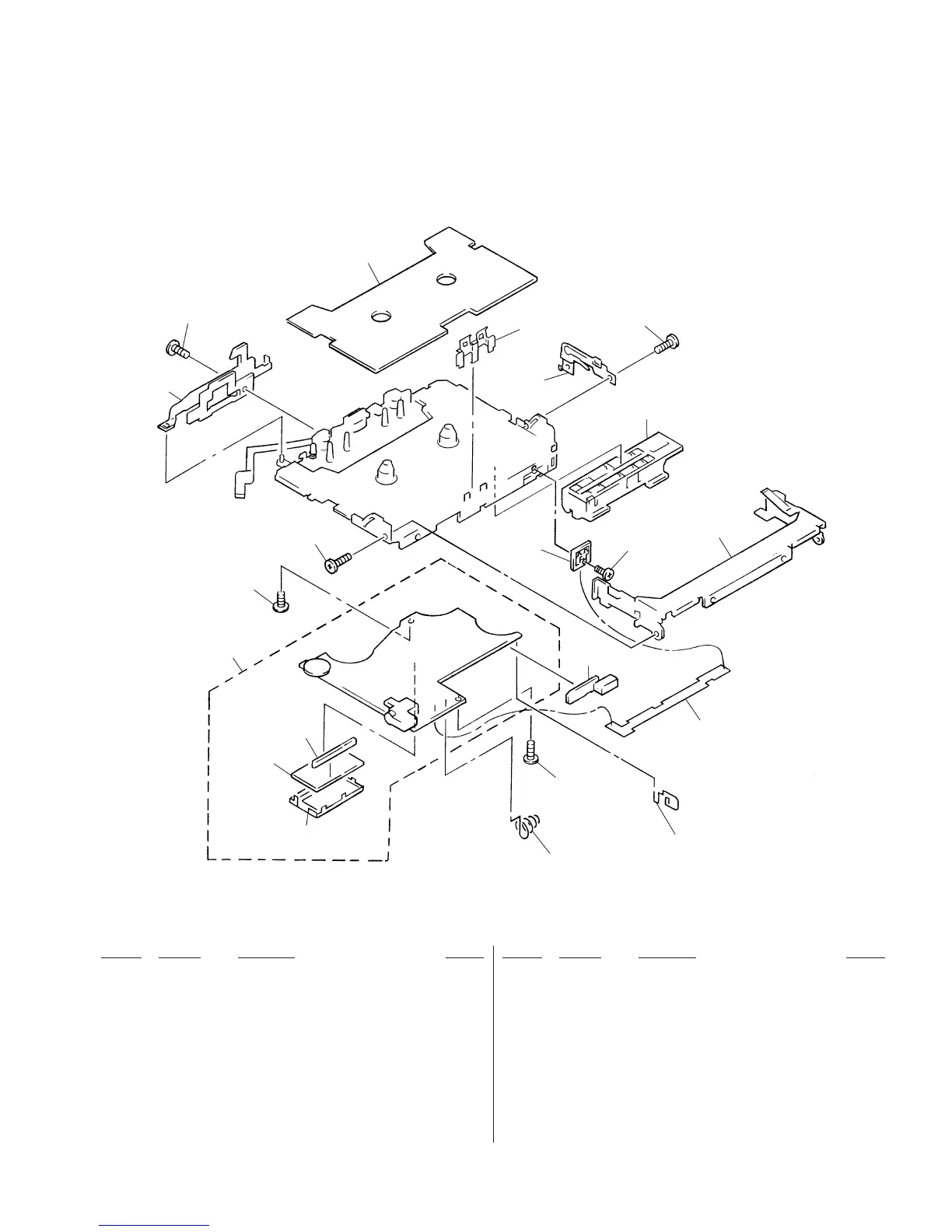

7-2. MAIN BOARD SECTION
51 3-928-466-11 COVER, MD
52 3-928-465-01 DETENT, CASSETTE
53 3-928-464-01 LEVER (B), LOCK
54 3-366-892-01 SCREW (M1.4X1.1)
55 X-3370-961-1 BRACKET ASSY
56 3-928-463-01 HOLDER
57 X-3370-960-1 HOLDER ASSY, CASSETTE
58 3-365-611-35 SCREW (M1.4)
59 A-3016-752-A MAIN BOARD, COMPLETE (GX512)
59 A-3016-778-A MAIN BOARD, COMPLETE (GX510)
* 60 1-537-981-11 CONDUCTIVE BOARD, CONNECTION
61 3-928-461-01 TERMINAL (+), BATTERY
* 62 1-658-322-11 SUB BOARD
63 1-658-564-11 ATS FLEXIBLE BOARD
64 3-355-424-01 SCREW, TAPPING
65 3-928-462-01 TERMINAL (-), BATTERY
ND701 1-801-055-11 DISPLAY PANEL, LIQUID CRYSTAL
S903 1-762-080-11 SWITCH, LEAF (ATS)
REF.No. Part No. Description RemarkREF.No. Part No. Description Remark
52
51
53
54
56
57
63
65
64
61
not supplied
ND701
60
59
58
55
54
54
54
S903
62
To Next Page
