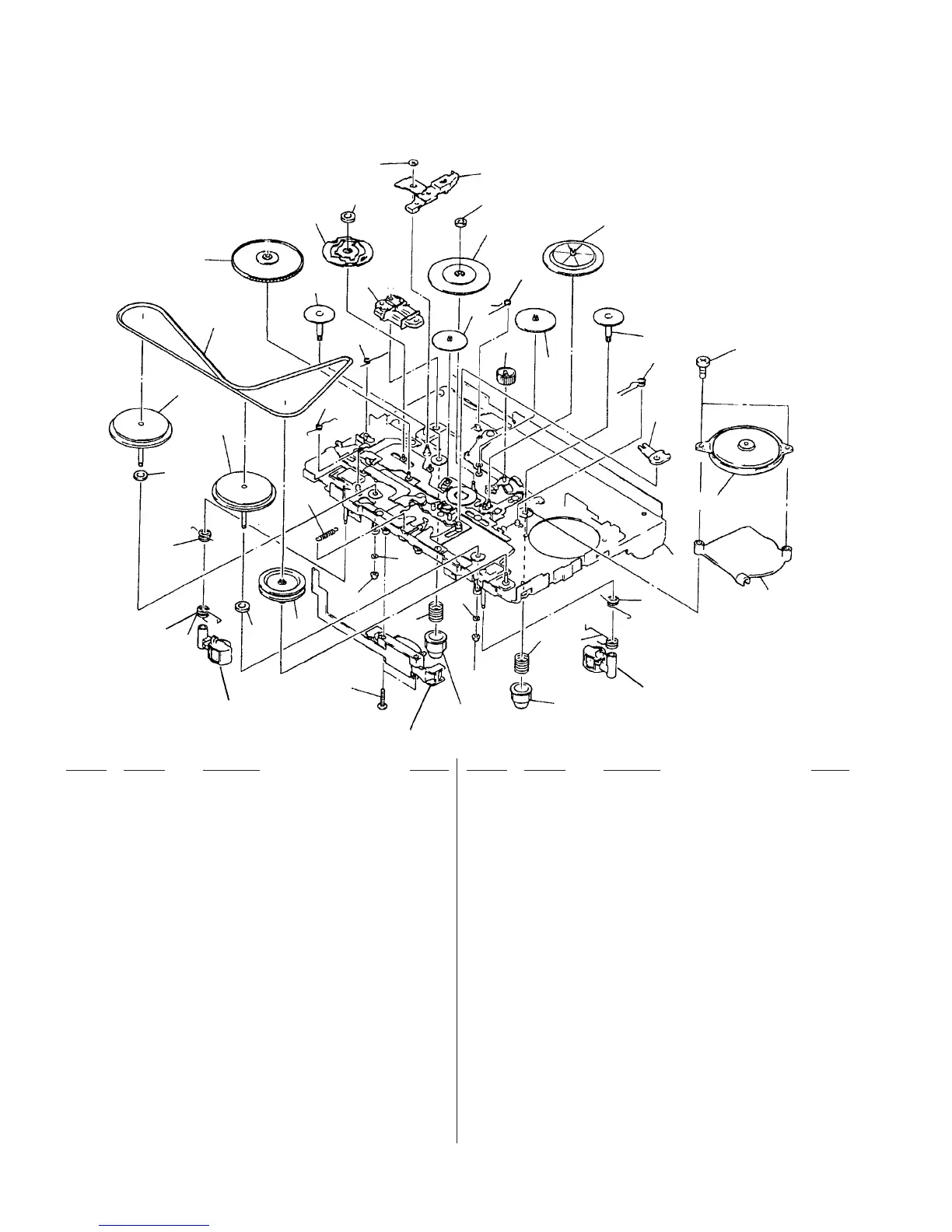

7-3. MECHANISM SECTION (MF-WMGX614-112)
101 X-3368-776-1 PINCH LEVER (N) ASSY
102 3-916-341-01 SPRING (PINCH N)
103 3-704-413-31 SCREW (M1.4X7.2)
104 3-916-357-01 GEAR (REEL)
105 3-366-058-01 SPRING, COMPRESSION
106 X-3368-777-1 PINCH LEVER (R) ASSY
107 3-916-342-01 SPRING (PINCH R)
108 3-916-344-01 SPRING (RETURN R)
109 3-928-445-01 DECK, FIXED, TERMINAL
110 X-3370-948-1 CHASSIS ASSY
111 3-366-017-11 BUSHING (CAPSTAN)
112 3-918-943-01 WASHER, STOPPER
113 3-916-350-01 PULLEY (REVERSE)
114 3-916-346-01 SPRING, TENSION
115 X-3370-951-1 CLUTCH ASSY
116 3-928-441-01 SPRING (RETURN N)
117 X-3368-778-1 WHEEL (R) ASSY, CAPSTAN
118 X-3368-779-1 WHEEL (N) ASSY, CAPSTAN
119 3-928-444-01 BELT
120 3-928-442-01 SPRING (LOCK LEVER)
121 3-928-443-01 SPRING (R), TORSION
122 3-365-801-01 TABLE, REEL
123 3-916-353-01 GEAR (A)
124 3-916-352-01 GEAR (FR)
125 3-916-354-01 GEAR (B)
126 3-916-347-01 SPRING (NR), TORSION
127 3-916-339-01 LEVER (NRSW)
128 3-358-455-11 SCREW, PRECISION WASHER HEAD
129 3-338-645-31 WASHER (0.8-2.5)
130 A-3042-517-A GEAR (C) BLOCK ASSY
131 3-916-348-01 SPRING (TRIGGER), TORSION
132 3-348-953-31 WASHER
133 3-916-338-01 LEVER (TRIGGER)
134 3-928-439-01 GEAR (K)
135 3-928-440-01 GEAR (CAM)
136 3-932-724-11 WASHER
137 3-386-694-01 WASHER
HRPE901
1-500-279-11 HEAD, MAGNETIC (REC/PB/ERASE)
M901 1-698-633-11 MOTOR (REEL/CAPSTAN)
PM901 1-454-674-31 SOLENOID, PLUNGER
REF.No. Part No. Description RemarkREF.No. Part No. Description Remark
117
132
135
122
114
120
121
PM901
134
119
118
116
102
101
113
HRPE901
104
111
105
111
103
112
112
133
129
115
131
123
124
125
130
122
126
127
M901
110
108
105
106
104
128
109
137
137
136
107
