 Use a power supply wire with a fuse (60 A)
attached.
 All power wires connected to the positive battery
post s
hould be fused within 450 mm (17
3
/4 in) of
the battery post, and before they pass through
any metal.
 Make sure that the car’s battery wires connected
to th
e car (ground (earth) to chassis) are of a wire
gauge at least equal to that of the main power
wire connected from the battery to the amplifier.
 D
uring full-power operation, a current of more
than
60 A will run through the system. Therefore,
make sure that the wires to be connected to the
+12 V and GND terminals of this unit are at least 8-
Gauge (AW
G-8) or have a sectional area of more
than 8 mm² (
11
/32 in²).

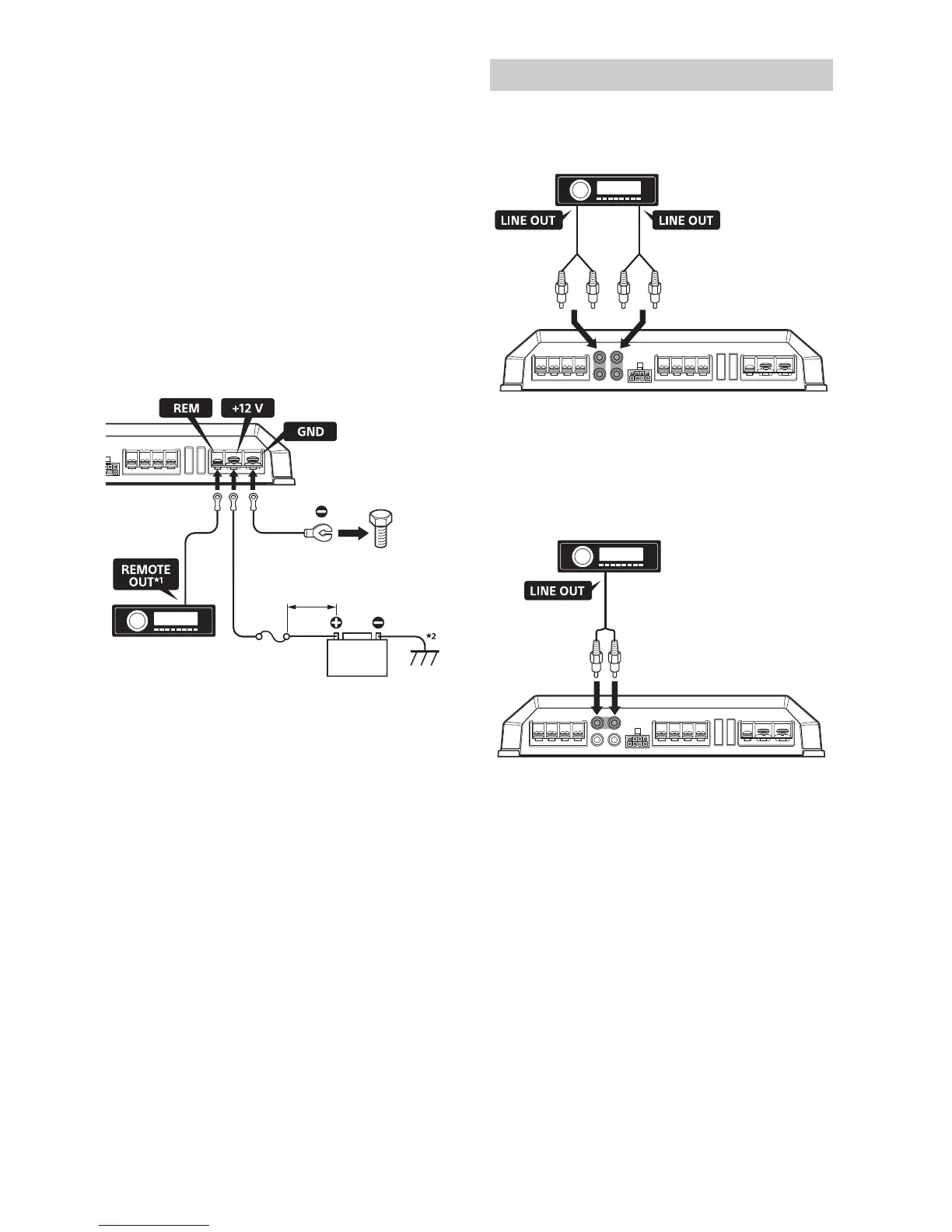

Making power connections
Power connection wires (not supplied) are required.
*1 If you have the factory original or some other car
audio unit without a remote output for the amplifier,
connect the remote input (REM) terminal to the
accessory power supply. In High level input
connection, the car audio unit can also be activated
without need for REMOTE connection. However, this
function is not guaranteed for all car audio units.
*2 Ground (earth) to chassis.
 Line input connection
With the speaker connection , ,  or 
(page 7, 8)
Note
You can enjoy high-resolution sound when this unit is
connec
ted to a high-resolution audio supported car
audio unit (e.g. RSX-GS9).
 Line input connection
With the speaker connection  (page 8)
Note
You can enjoy high-resolution sound when this unit is
connec
ted to a high-resolution audio supported car
audio unit (e.g. RSX-GS9).
Fuse (60 A)
+12 V car battery
less than 450 mm (17
3
/4 in)
to a metal point of the car
Input Connections
Front Rear
Left Right
