Sony XR-65A90J User Manual

82
Some control lines are left out.
* depend on destinations.
Video signal
Audio signal
Control Bus

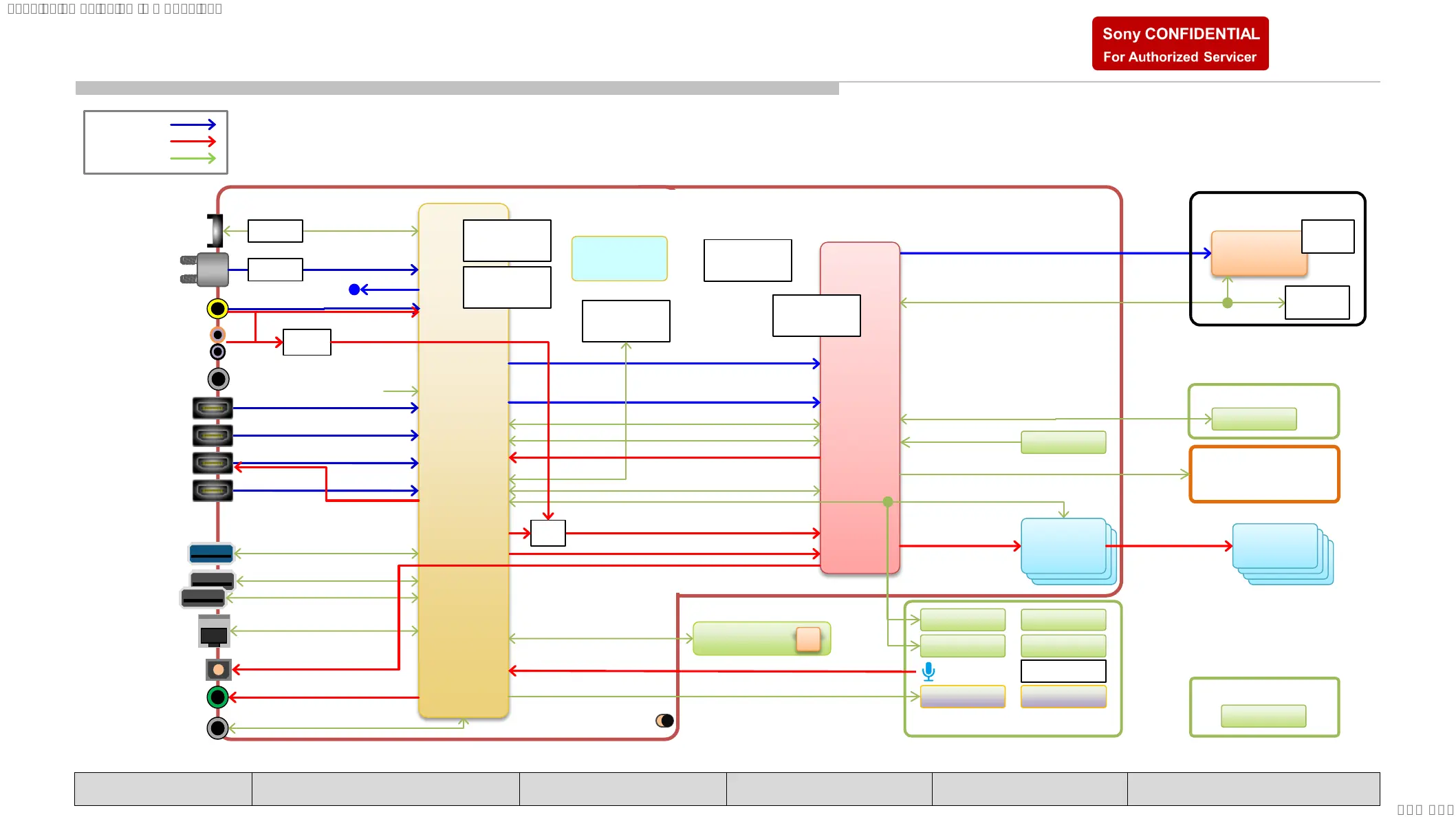

TSP board
Main
SoC
IC1000
Vx1 16-lane
DDCs
4K/120p
BE
SoC
IC5000
LPDDR4
4Gib x 2
I2C
UART
Test point
Video
Out
BM5S board
Power Control
MCU
I2S
* RF
(TW: Tuner less)
* CI
* RS232C
DDCs
I2S for Echo Cancelling
I2C
Panel
Tcon
(V19R)
EEPROM
(Panel ID)
Flash
CEC
D-Amp.
SP
SP
SP
Speaker
2.2-ch
HDMI2.1(12G)
x2
UART
Vx1 16-lane (Video)
Vx1 8-lane (Graphics)
SPI/CI Link
*CI
*Demod
HDMI2.0(6G)
x2
* IR In
Composite
/Center SP In(Bar)
Power board
(PSU)
USB HS
WiFi/BT
(DHUR-SY63)
IR RxTemp Sens.
W/R/RGB LEDs
*ACAS
PDM
PWM
H*
Light Sens.
Mic Tally LED
Mic
RGB Sens.
*Mic Switch (except China)
I2C
Temp Sens.
PWM
I2S
SW
S/PDIF
I2C(debug)
ADC
(AK5522)
Center SP In(AVR)
LPDDR4
16Gib x 2
I2C
Ethernet
HP Out
USB2.0
USB3.0
Optical Out
S/PDIF
ARC/eARC
Center Key
1Key module
eMMC
16GB exc. China
32GB Only China
Analog
Temp Sens.
Wireless
IC
SPI
