7 Board connectors
Several connectors are implemented on the STM32WL Nucleo-64 board.
7.1 CN1 STLINK-V3E USB Micro-B connector
The CN1 USB Micro-B connector is used to connect the embedded STLINK-V3E to a PC for programming and
debugging purposes.

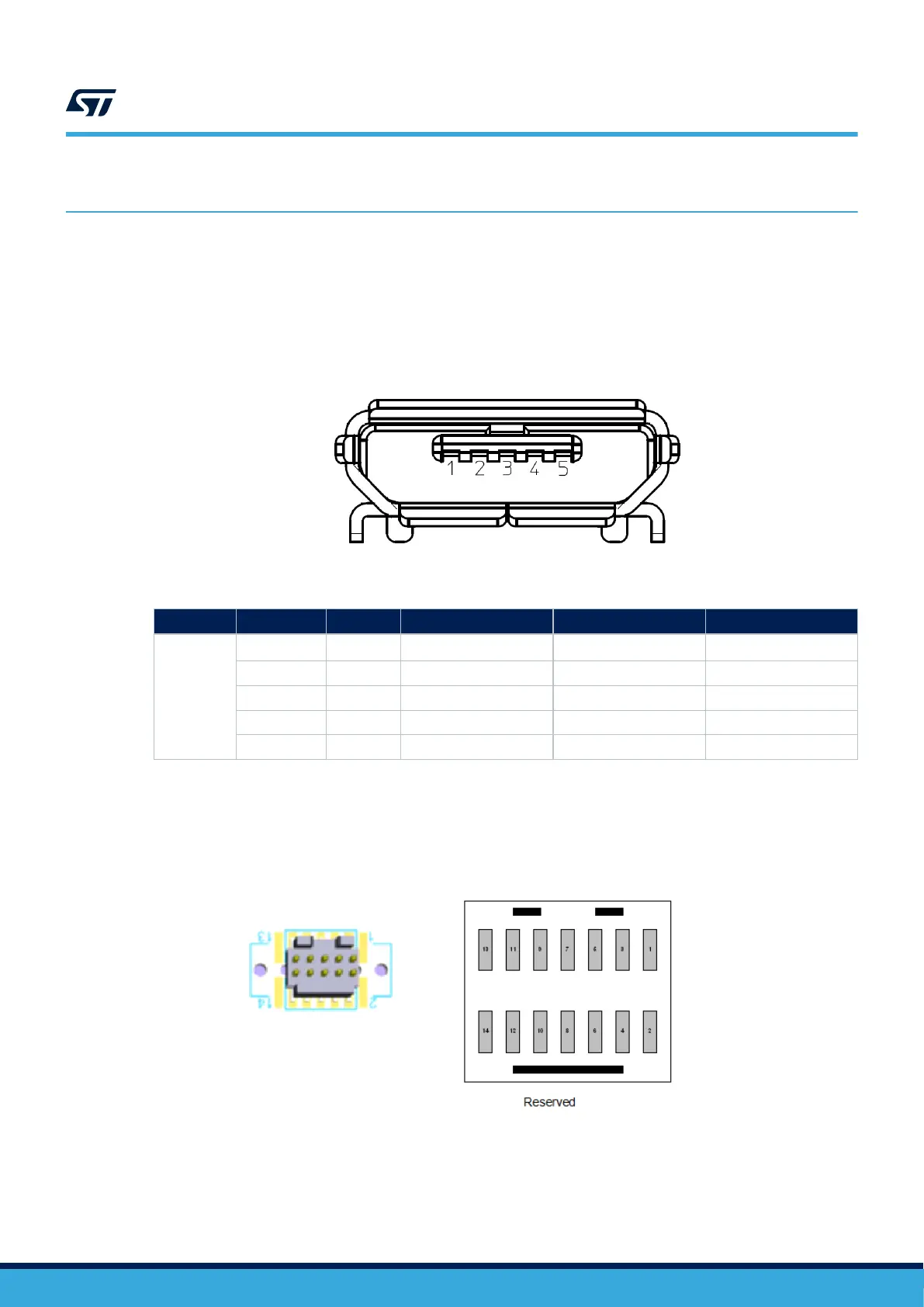

Figure 20. USB Micro-B connector CN23 (front view)
Table 14. USB Micro-B connector CN23 (front view)
Connector Pin number Pin name Signal name STLINK-V3EMCU pin Functions
CN1
1
V
BUS
5V_USB_CHGR - 5 V Power
2 DM USB_DEV_HS_CN_N R14 USB differential pair N
3 DP USB_DEV_HS_CN_P R15 USB differential pair P
4 ID - - -
5 GND - - GND
7.2 CN16 MIPI10 connector
Figure 21. MIPI10 debugging connector CN16 (top view)
The MIPI10 connector is implemented with a footprint compatible with the STDC14 footprint. The related pinout
for the MIPI10 connector is listed in Table 15.
UM2592
Board connectors
UM2592 - Rev 1
page 32/49
