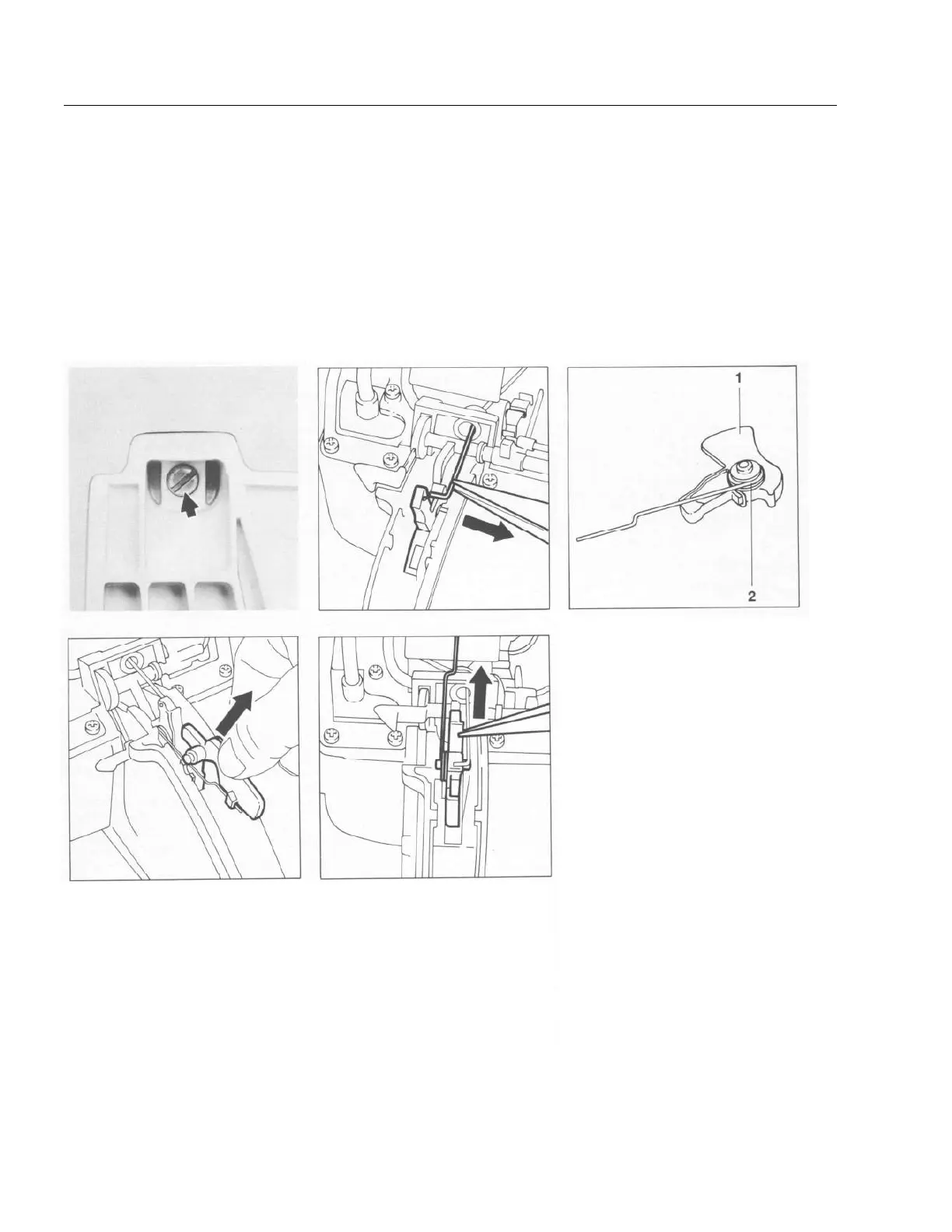

STIHL 064, 066 62
8.2 Throttle Trigger/
Interlock Lever
Top:
Handle molding fastening screw Top:
on underside of rear handle Detaching throttle rod
Bottom: Bottom: 1 = Throttle trigger
Removing throttle interlock lever Removing throttle trigger 2 = Torsion spring
- Remove the air filter - see 11.1. - Move Master Control lever to
"RUN" position.
- Move Master Control lever down
to "CHOKE" position. - Detach throttle rod from the
trigger.
- Take out the handle molding
fastening screw. Lift away the - Take the throttle trigger and tor-
handle molding. sion spring out of the handle.
- Pull the throttle interlock lever out of
its seat.
- Remove the torsion spring from the
throttle trigger.
Installation is a reversal of the removal
sequence.
Note: Pay special attention to the
following points:
- Fit the torsion spring on the throttle
trigger and position the trigger in its
seat so that the hole for the throttle rod
is at the top and the torsion spring
points toward the Master Control lever.
- Fit the throttle rod and carefully move
the Master Control down to "CHOKE"
position.
- Fit the interlock lever.
Note: The torsion spring must be under
the interlock lever and locate in the notch.
The arm of the interlock lever must
engage the throttle trigger.
