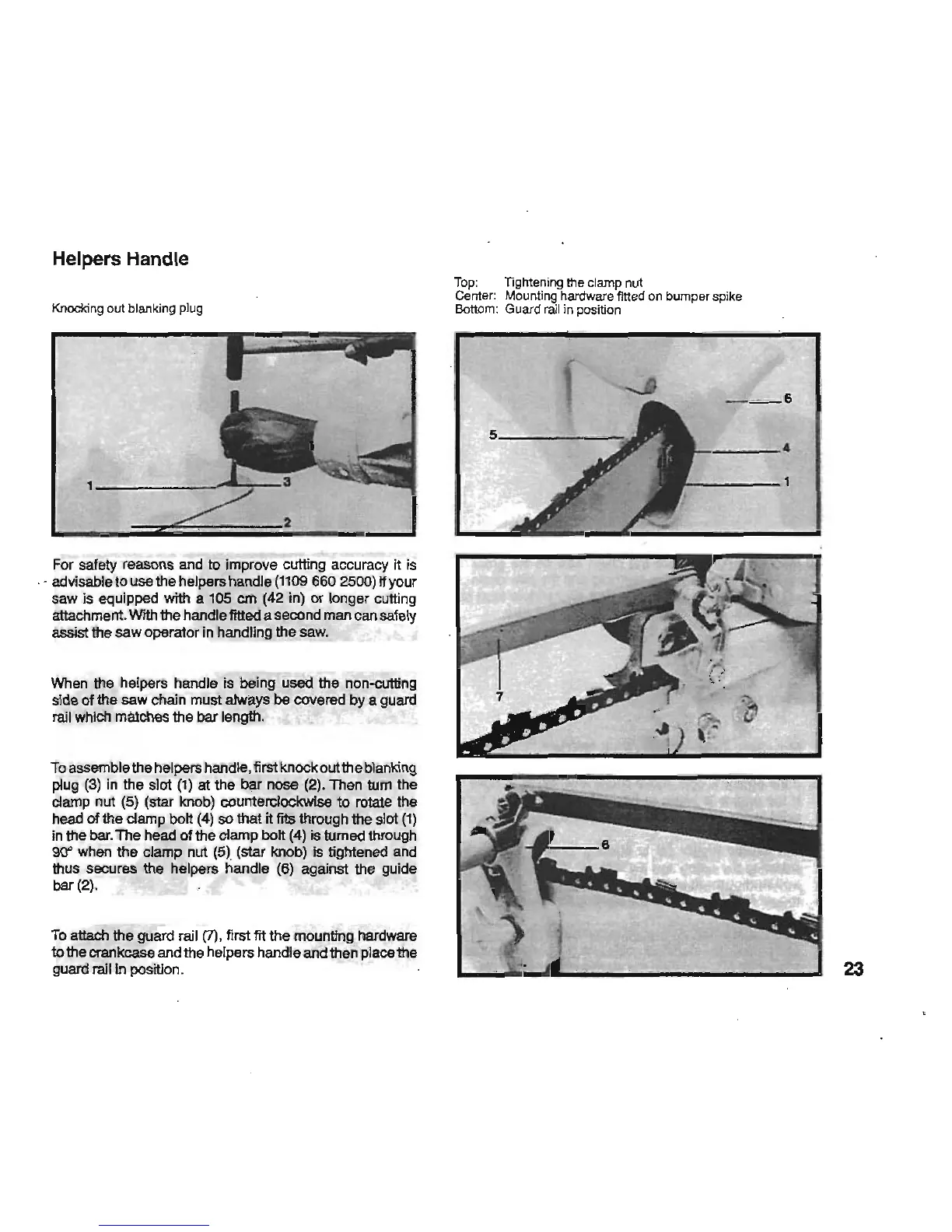

Helpers Handle
Knocking out blanking plug
,--------~~~-~
For safety reasons and
to
Improve cutting accuracy
~
is
. . advisable
to
use
the
helpers handle
(1109
660
2500) n your
saw
is equipped with a 105 em
(42
In)
or
longer cutting
attachment.
With
the
handle fitted a second man can safely
assist
the
saw
operator in handling
the
saw.
When the helpers handle Is being
used
the
non-cutting
side
of
the
saw
chain
must
always be covered
by
a guard
rail which matches
the
bar
length.
To
assemblethe helpers handle, first
knockoutthe
blanking
plug (3) In
the
slot
(1)
at
the
bar
nose
(2).
Then
tum
the
clamp nut (5) (star knob) counterclockwise to rotate
the
head
of
the
clamp bott (4)
so
that
it
fits through the slot
(1)
in
the
bar.
The
head
of
the
clamp bon (4) is turned through
90" when
the
clamp nut (5) (star knob) Is tightened and
thus secures
the
helpers
handle
(6) against
the
guide
bar
(2).
To
attach
the
guard rail (7), first ffl
the
mountfng
hardware
to
the
CI8J1kcase
and
the
helpers
handle
and then place
the
guard rail
In
posiIJon.
Top:
TIghtening
the
clamp
nut
Center:
Mounting
hardware
fitted
on
bumper
spike
Bottom:
Guard
rail
in
posttion
___
6
'-'-
____
1
23
