0RXQWLQJWKH%DUDQG&KDLQ

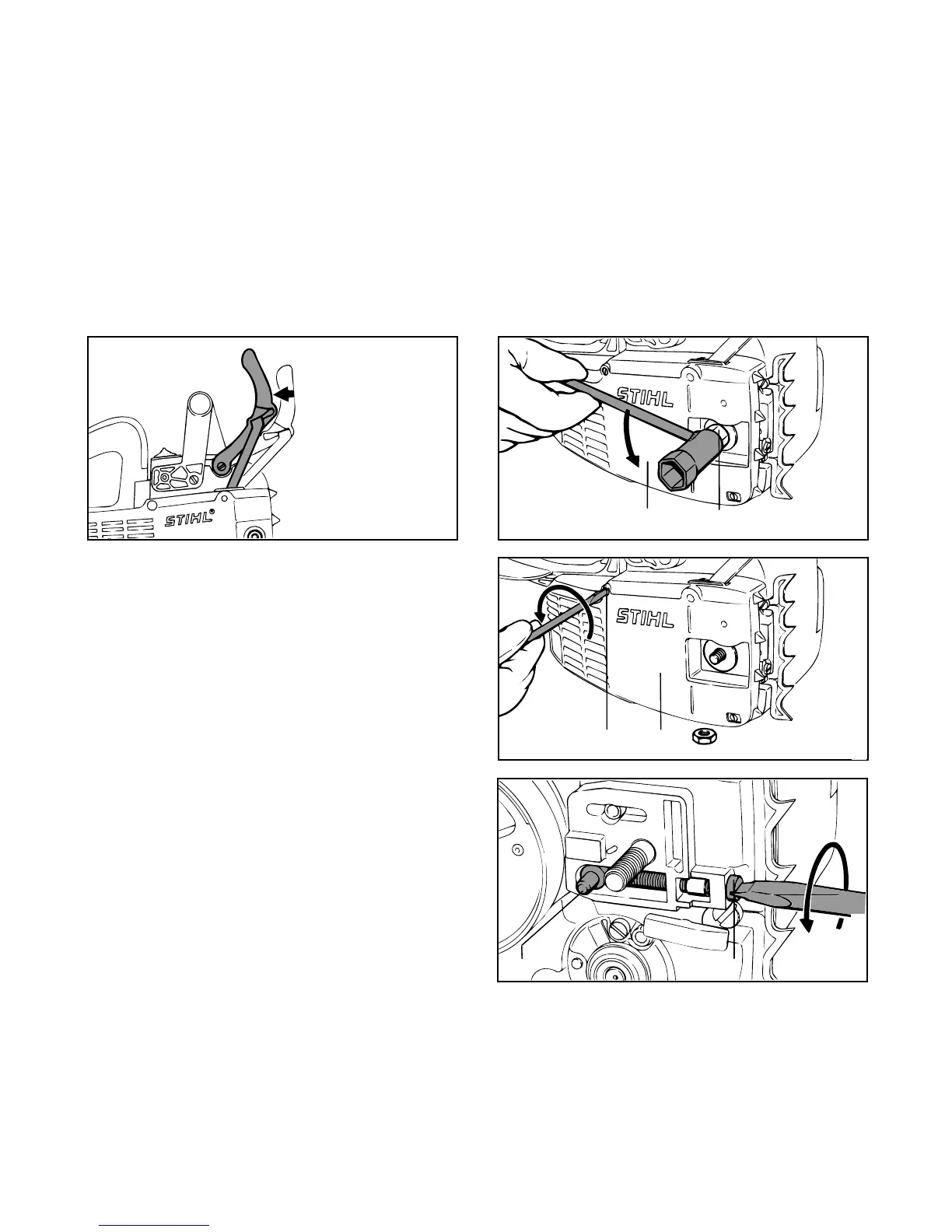

Chain brake disengaged
Top: Unscrewing collar nut
Center: Removing pan head screw
(on machines without chain brake)
Bottom: Backing off tensioning nut
125BA002 LA
3
2
125BA001 LA
3
1
125BA000 LA
125BA003 LA
5
4
You can run chains of different pitches on this chainsaw -
depending on the chain sprocket (see "Specifications"). The
chain pitch must match the guide bar. The drive link gauge
must match the guide bar groove width.
The guide bar and Oilomatic chain are supplied separately.
To mount them, first unscrew the collar nut and - if your
machine does not have a chain brake - take out the pan
head srew and remove the sprocket cover . If you
have a Quickstop model, the chain brake must be disenga-
ged before you remove the sprocket cover by pulling the
hand guard toward the front handle.
Now back off the tensioning nut by turning the tensioning
screw counterclockwise until the end of its thread is level
with the tensioning nut.
Locate the slot of the guide bar over the stud bolt and
push it at an angle between the clutch drum of the sprocket
and the peg of the tensioning nut until the stud bolt
is at the forward end of the slot.
To protect yourself from being injured by the sharp cutting
edges you should always wear gloves when fitting the saw
chain and guide bar or tensioning and checking the chain.
