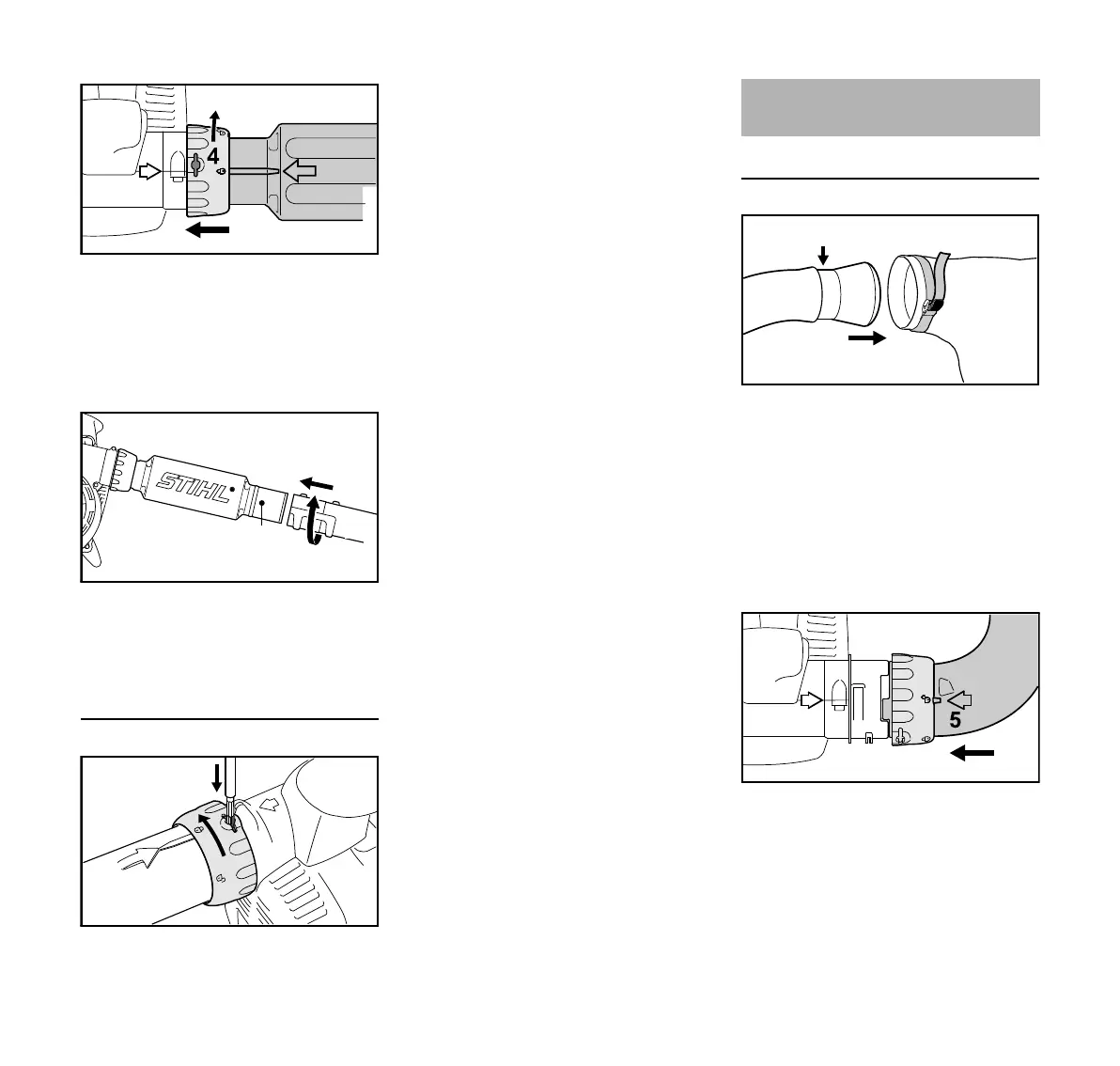

N Push the union nut (4) over the fan
housing stub as far as stop.
N Rotate the union nut (4) in direction
of arrow until symbol ƒ is in line
with the arrows – union nut snaps
audibly into position.
N Push nozzle (5) in position (a) onto
the blower tube (2) as far as lug (6)
and rotate in direction of arrow to
lock in position.
Removing the Blower Tube
N Shut down the engine.
N Insert a suitable tool through the
opening in the union nut to press
down the tab.
N Rotate the union nut in the direction
of the arrow as far as the stop.
N Remove the blower tube.
Mounting the Elbow
N Push the elbow (1) into the catcher
bag (2) as far as the mark (smaller
arrow).
N Tighten strap (3) on catcher bag
and press down the tab (4).
NOTICE
Make sure the zipper on the catcher bag
is closed.
N Line up the arrows (5).
N Position the union nut so that the
symbol ‚ is in line with the arrows.
N Push the elbow into the recess in
the fan housing stub (6) as far as
stop.
296BA019 KN
a
6
5
2
296BA032 KN
296BA020 KN
Assembling the Vacuum
Shredder
4
295BA058 KN
3
2
1
5
296BA021 KN
6

Stihl BG 86 Specifications

General

Type	Handheld blower
Airflow	810 m³/h
Suction mode	-
Product color	Black, Orange, White
Airspeed (max)	306 km/h
Airspeed (min)	248.4 km/h
Power source	Gasoline
Vibration emission	2.5 m/s²
Sound pressure level	90 dB

Weight and Dimensions

Weight	4400 g
