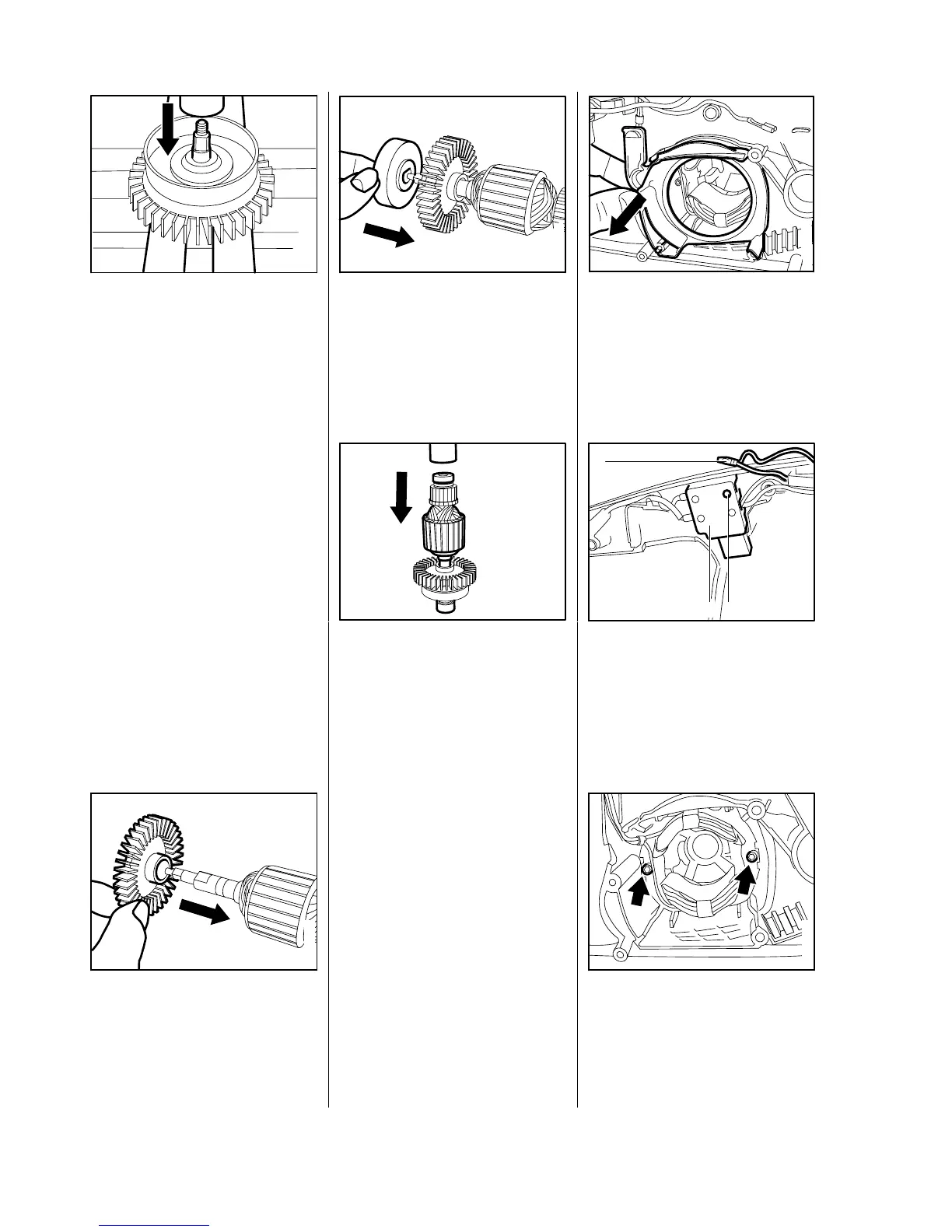

Hold the rotor and press it out of
the brake drum and fanwheel.
- Clean stub of rotor shaft with
standard commercial, solvent-
-based degreasant containing
no chlorinated or halogenated
hydrocarbons - see 10.2.
•
Push the fanwheel, flange first,
onto the rotor shaft as far as it
will go.
- Coat the flats on the rotor shaft
with Loctite 648 - see 10.2.
•
Fit the brake drum so that the
closed side faces the fanwheel.
- Stand the rotor upright on a
socket (e.g. 19 mm) with the
brake drum at the bottom.
•
Press the rotor down until the
brake drum locates against the
shaft shoulder.
- Install the rotor - see 5.2.
- Remove the rotor - see 5.2.
•
Pull the air baffle out of the
housing.
•
Release screw (1) on switch (2).
•
Pull wires out of switch. Cut the
end ferrule (3) off the end of the
wires.
•
Take out the screws.
- Press stator out of housing.
5.5 Stator
100RA053
VA
100RA055
VA
100RA052
VA
VA
100RA050 100RA049
VA
100RA051
VA
100RA054
2
3
1
VA
14
