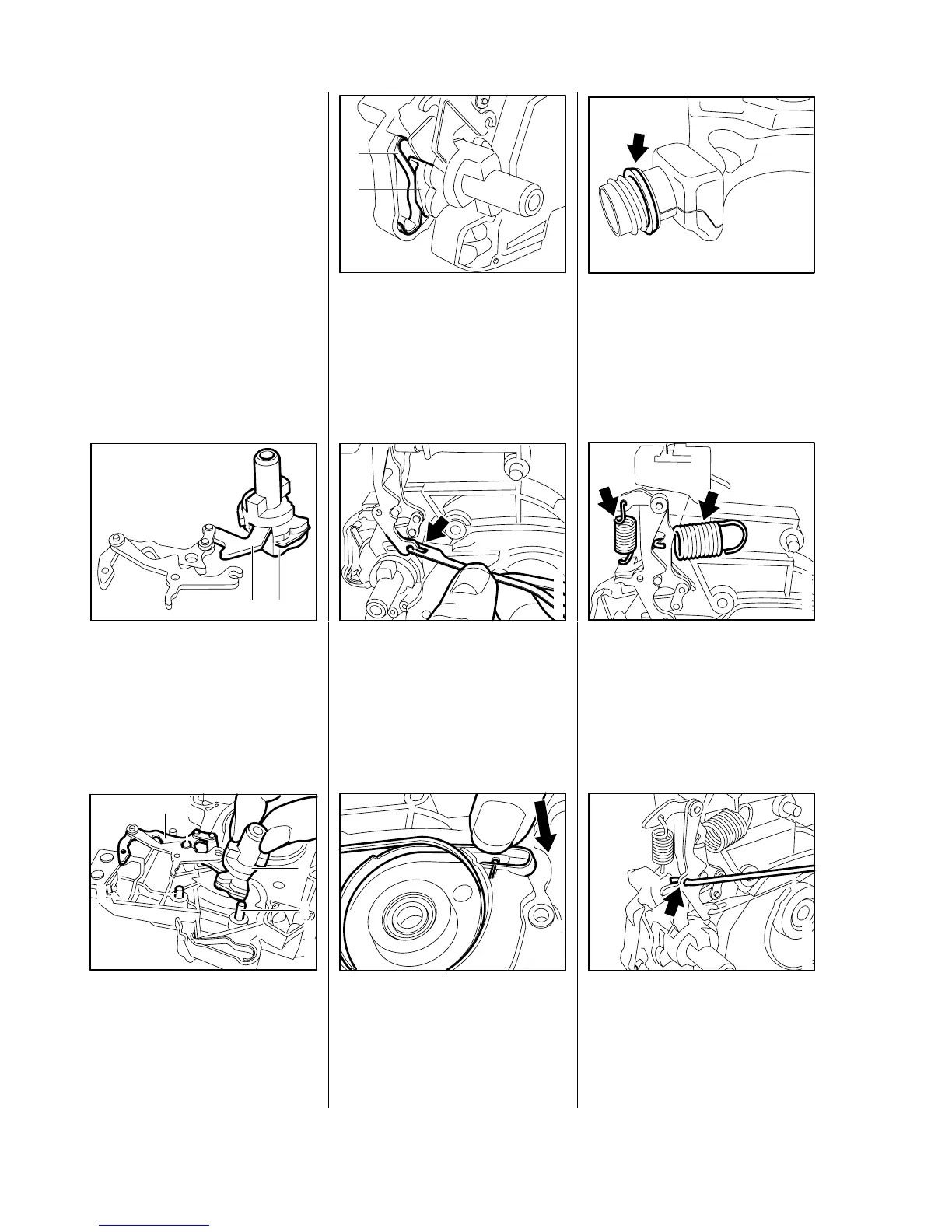

- Coat all sliding aand pivot points
with STIHL multipurpose grease
or, preferably, with molybdenum
grease (e.g. Molykote) - see 10.2.
- Fit the flat spring.
•
Fit articulated lever (1) in
carrier (2) as shown in the
illustration.
•
Slip the carrier (1) over the bea-
ring pin (2) and the bore (3) of
articulated lever (4) over bearing
pin (5).
•
Check that flat spring (1) is
correctly positioned on face (2)
of bearing boss.
•
Attach brake band to brake
lever.
•
Position brake band in slots in
gear housing and press it home.
•
Fit brake band fastening screw
and tighten to 6.0 Nm (4.5 lbf.ft).
•
Attach the springs.
•
Attach brake rod to brake lever.
- Install the rotor - see 5.2.
- Fit the switch lever - see 8.1.
8.2 Installation
100RA099
1 2
VA
100RA100
2
5
1
4 3
VA
100RA101
2
1
VA
100RA095
VA
100RA102
VA
100RA103
VA
VA
100RA092
VA
100RA091
20
