FR 130 T
English
14

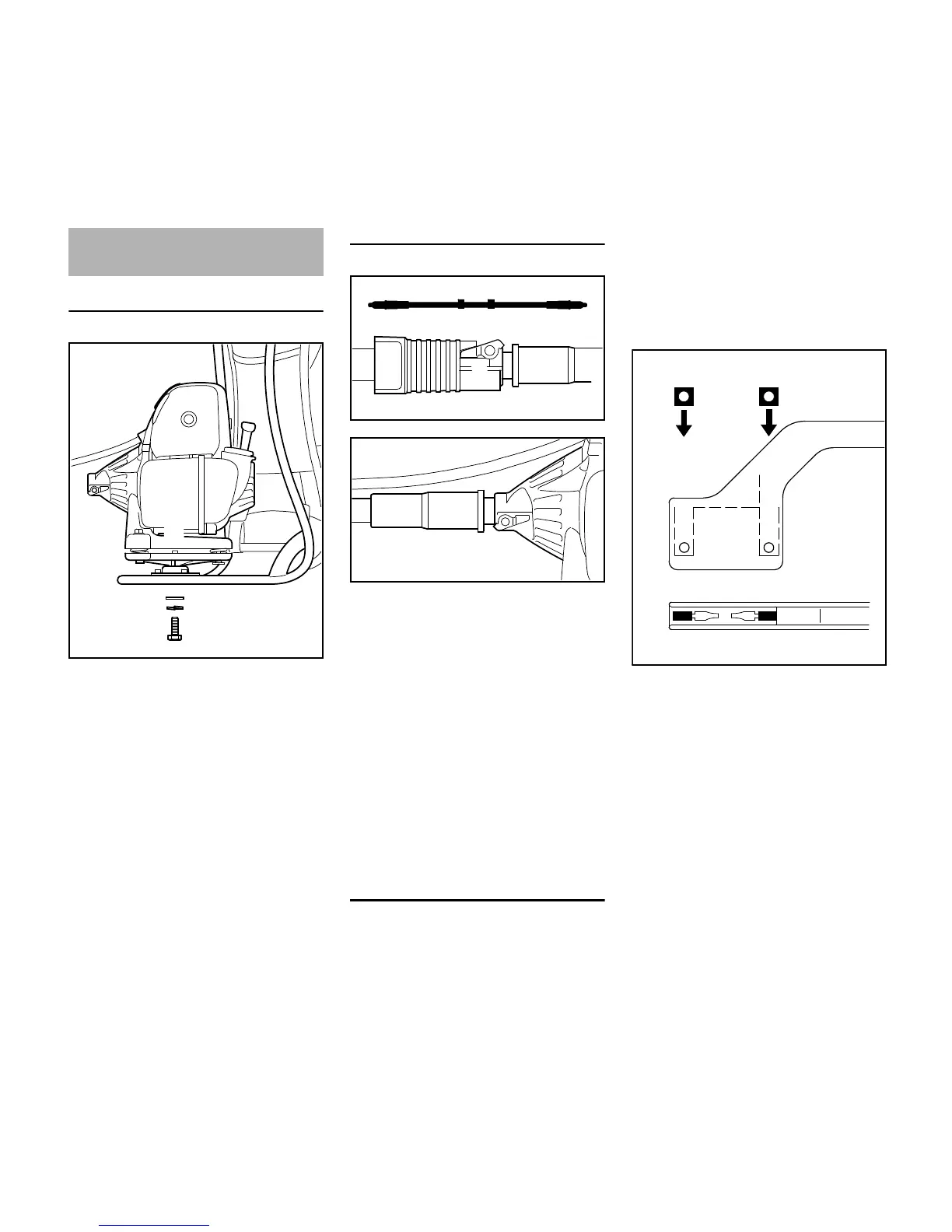

Mounting the Support Frame
N Loosen and remove the M 10 x 40
screw (1) with lock washer (2) and
plain washer (3) from the
powerhead (4).
N Secure the support frame (5) to the
powerhead with the screw and
washer (torque down to 20
Nm/177 lbf. in).
Installing the Flexible Shaft
N Remove the protective cap from
one end of the shaft.
N Push the end of the flexible shaft (1)
into the sleeve (2) until it engages –
turn the shaft back and forth at the
same time.
N Remove the protective cap from the
other end of the shaft.
N Push the flexible shaft into the
powerhead coupling (3) until it
engages – turn the shaft back and
forth at the same time.
N Keep the protective caps in a safe
place.
Mounting Loop Handle with Barrier Bar
A barrier bar may have to be mounted to
the loop handle to suit the market and
the cutting attachment you intend to use
– see "Approved Combinations of
Cutting Attachment, Deflector and
Handle".
The barrier bar comes standard with the
machine or is available as a special
accessory.
N Fit the square nuts (1) in the barrier
bar (2) – make sure the holes line
up.
Assembling the Unit
266BA001 KN
1
3
5
2
4
2
266BA010 KN
1
1
3
266BA011 KN
1
1
2
2
11
389BA001 KN
