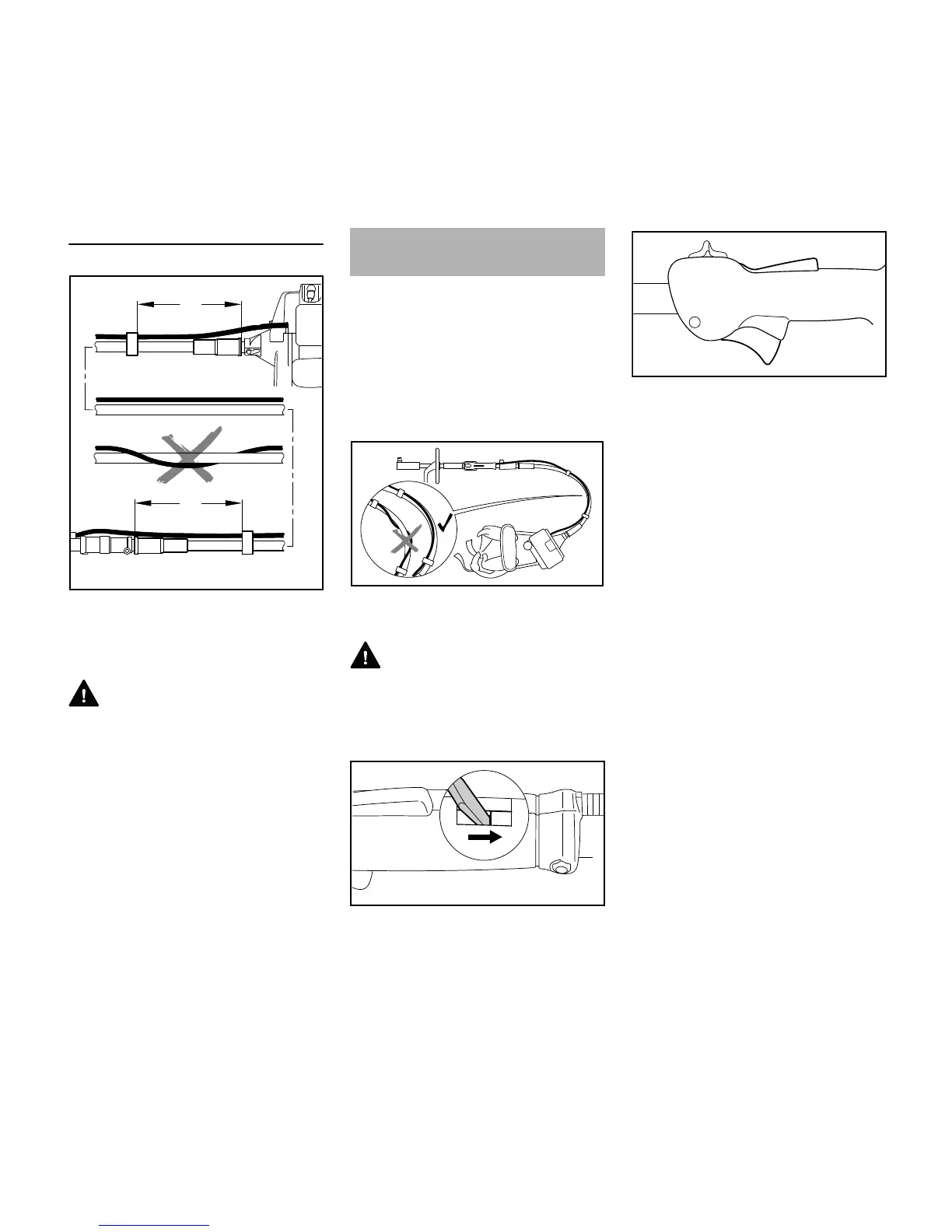

Fitting the Throttle Cable
N Push the throttle cable (1) into the
two cable retainers (2)
about 20 cm/8 in (A) from either
end of the shaft.
WARNING
The whole length of the throttle cable
must run parallel to the flexible shaft. Do
not wrap the throttle cable around the
flexible shaft.
N Go to "Adjusting the Throttle Cable".
A properly adjusted throttle cable is the
precondition for correct operation in the
full throttle, starting throttle and idle
positions.
Adjust the throttle cable only after the
unit is fully assembled – the control
handle must be in the normal operating
position.
N Put the machine on the ground in
the normal operating position.
WARNING
The throttle cable must be positioned
parallel to the flexible shaft, not wrapped
around it. Correct adjustment of throttle
cable is otherwise not possible.
N Use a suitable tool to push the slide
to the end of the slot (see
illustration).
N Press down the trigger lockout (1)
and squeeze the throttle trigger (2)
(full throttle) – this sets the throttle
cable correctly.
1
2
A
1
2
A
266BA022 KN
Adjusting the Throttle Cable
002BA450 KN
002BA163 KN
2
1
002BA161 KN
