Placing Power Tool on the Ground
N Shut off the engine.
N Position your power tool so that the
cutting attachment mounting face is
pointing up.
Mounting Hardware for Cutting
Attachments
The mounting hardware supplied
depends on the cutting attachment that
comes as original equipment with the
new machine.
If mounting hardware is packed with
machine
Mowing heads and metal cutting
attachments may be mounted.
Depending on the cutting attachment, it
may be necessary to use the nut (3),
rider plate (4) and thrust washer (5).
These parts are included in a kit
supplied with the machine and are also
available as special accessories.
Removing the transport lock
N Pull the hose (1) off the shaft (2).
If mounting hardware is not packed with
machine
Only mowing heads may be used which
mount directly to the shaft (2).
Blocking the shaft
The output shaft (2) must be blocked
with the stop pin (6) or screwdriver (6) to
mount or remove cutting attachments.
These parts come standard with the
machine or are available as special
accessories.
N Insert the stop pin (6) or
screwdriver (6) in the hole (7) in the
gearbox as far as stop – and apply
slight pressure.
N Rotate shaft, nut or cutting
attachment until the stop pin slips
into position and blocks the shaft.
Mounting the cutting attachment
WARNING
Use a deflector that matches the cutting
attachment – see "Mounting the
Deflector".
Fitting Mowing Head with Screw
Mounting
Keep the instruction leaflet for the
mowing head in a safe place.
Mounting the Cutting
Attachment

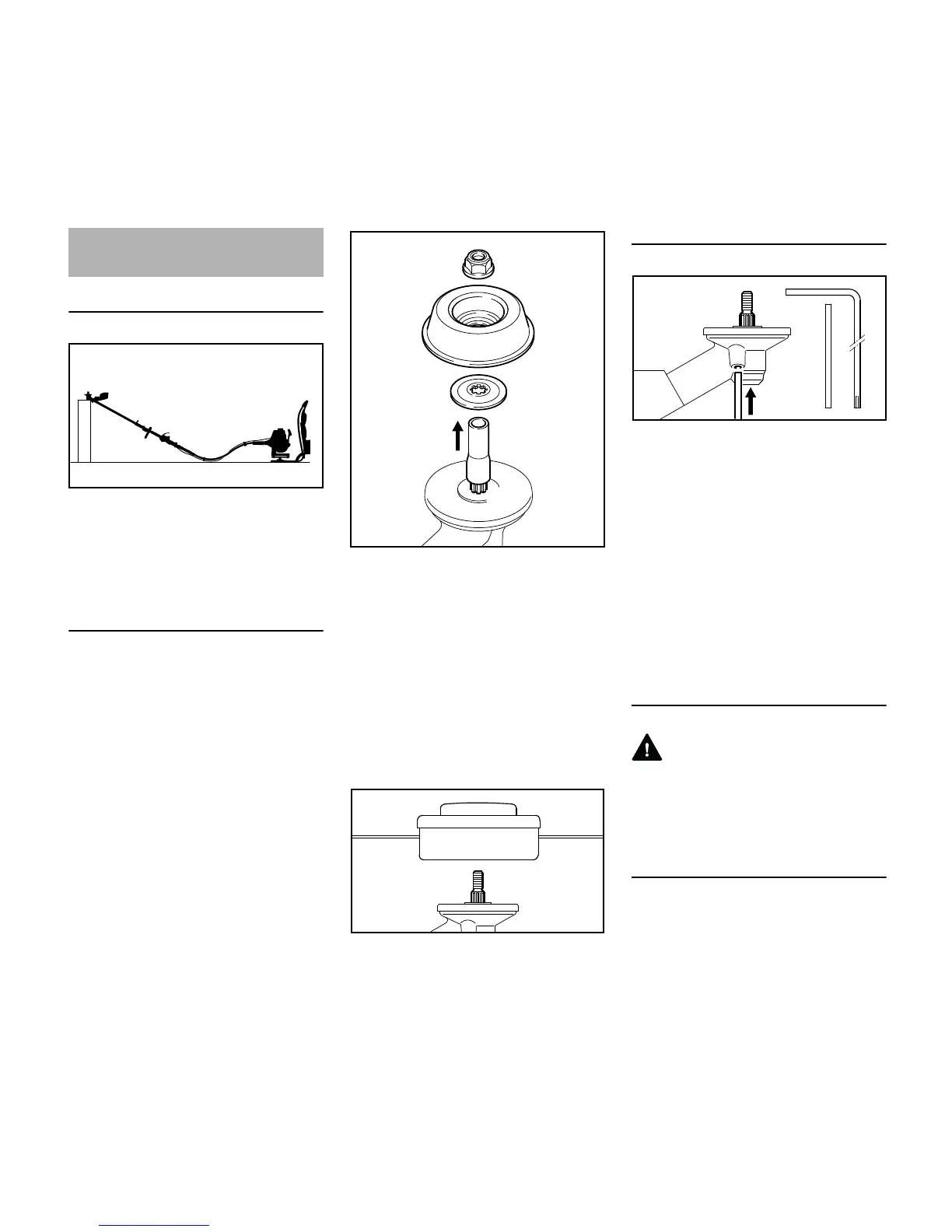

002BA134 KN
2
002BA164 KN
1
3
4
5
2
002BA266 KN
6
7
2
002BA330 KN
6
