Stihl FS 410 C K User Manual

FS 410 C K
English
10

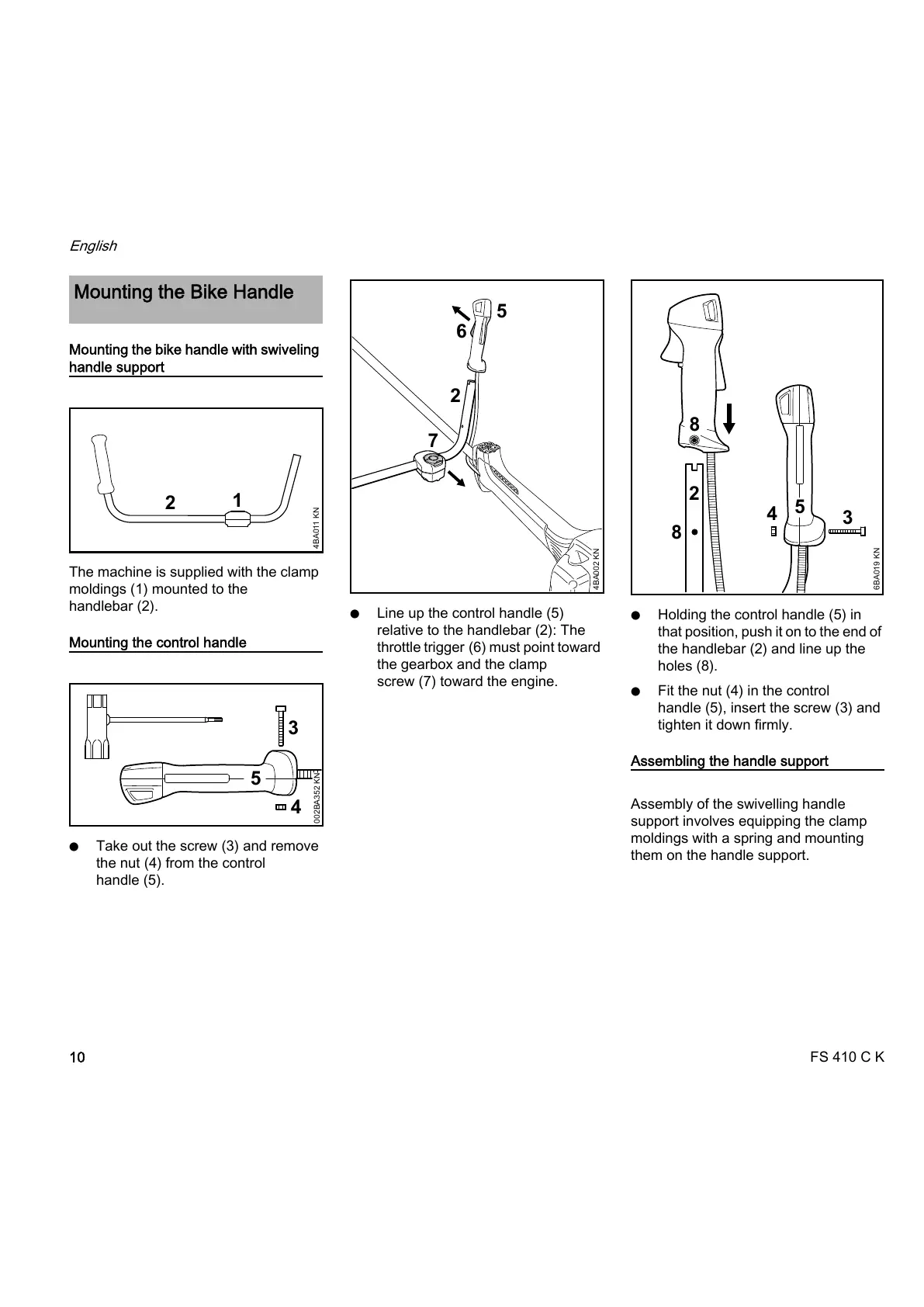

Mounting the bike handle with swiveling
handle support
The machine is supplied with the clamp
moldings (1) mounted to the
handlebar (2).
Mounting the control handle
N Take out the screw (3) and remove
the nut (4) from the control
handle (5).
N Line up the control handle (5)
relative to the handlebar (2): The
throttle trigger (6) must point toward
the gearbox and the clamp
screw (7) toward the engine.
N Holding the control handle (5) in
that position, push it on to the end of
the handlebar (2) and line up the
holes (8).
N Fit the nut (4) in the control
handle (5), insert the screw (3) and
tighten it down firmly.
Assembling the handle support
Assembly of the swivelling handle
support involves equipping the clamp
moldings with a spring and mounting
them on the handle support.
Mounting the Bike Handle
2
1
4BA011 KN
3
4
5
002BA352 KN
7
5
4BA002 KN
6
2
8
6BA019 KN
2
8
3
5
4
