Stihl FS 75 User Manual

16
English / USA
FS 75

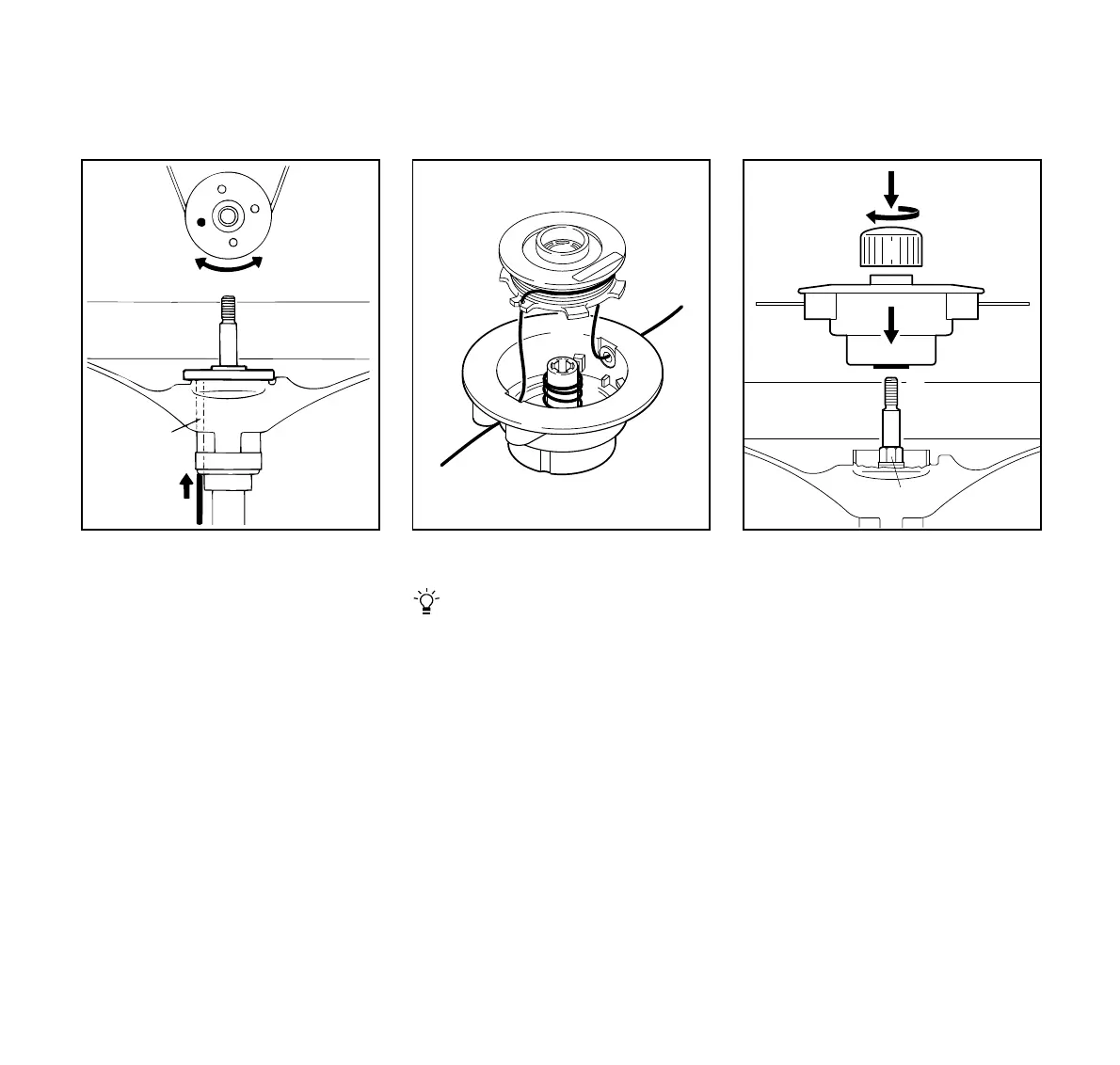

Blocking the Drive Shaft
: Insert the stop pin (1) in the bores
(2) in the defelector and thrust plate.
Turn thrust plate to and fro until the
stop pin slips into position and
blocks the shaft.
Mounting the Mowing Head
Keep instruction sheet for cutting
head in a safe place.
Assembling STIHL AutoCut 11-2
: Fit spring (1) in the spool
housing (2).
: Wind the nylon lines onto the spool:
see "Replacing Nylon Line"
: Assemble the mowing head: see
"Replacing Nylon Line"
: Slip the mowing head (2) over the
shaft (3) and engage hexagon
recess (4) on external hexagon (5).
: Fit the cap (6) on the mowing head
and screw it clockwise onto shaft as
far as stop. Tighten it down firmly.
342BA021 KN
1
2
2
1
681BA014 KN
2
4
3
6
2
5
681BA015 KN
