40 FC 75, FC 85, FH 75, FS 75, FS 80, FS 85, HL 75, KM 85, KW 85

FS 75, 80, 85, KM 85 only

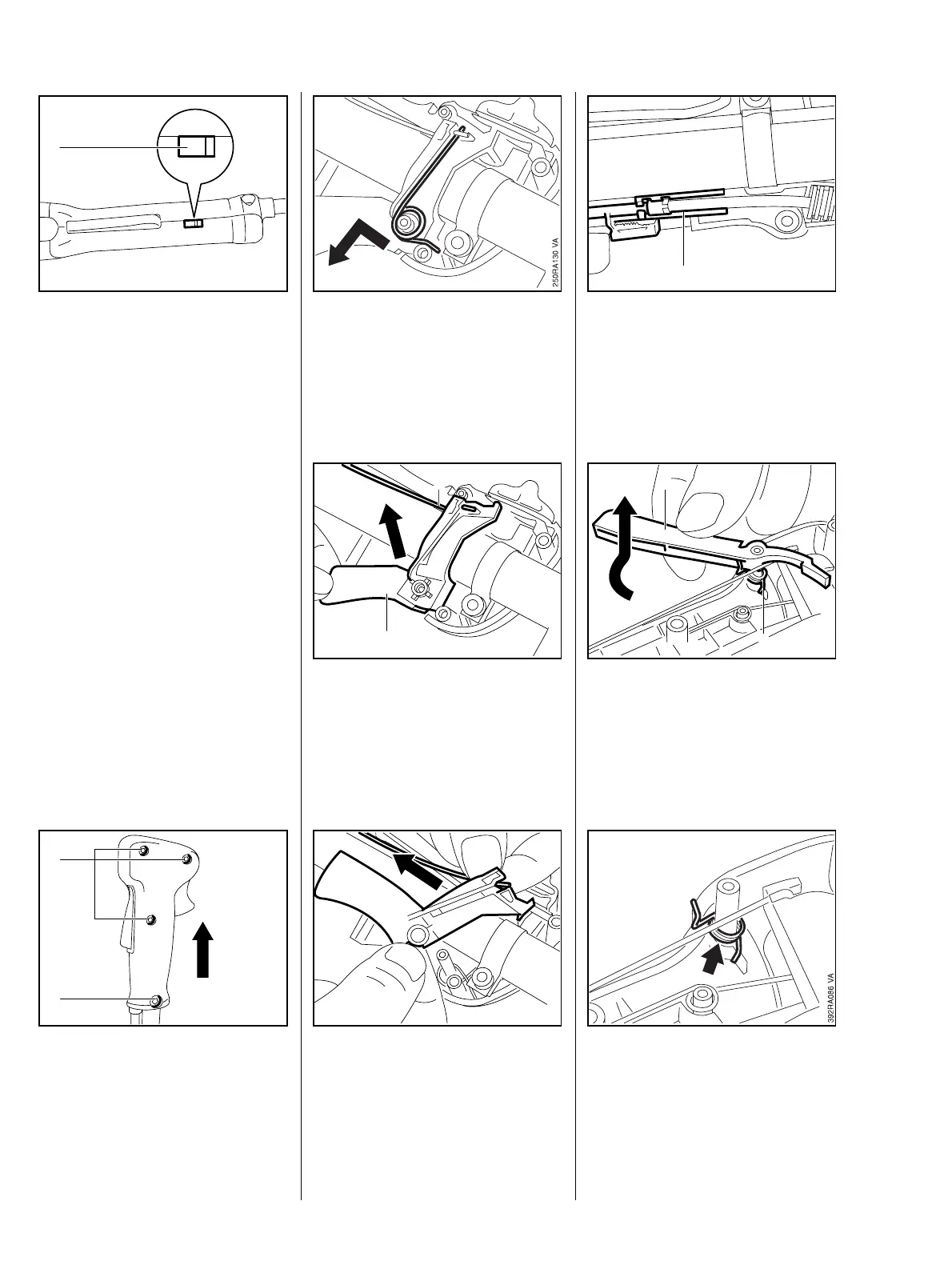

This control handle has a slide (1)

for automatic adjustment of the

throttle cable.

: Insert a screwdriver in the slot,

press the slide down and push it

936RA437

in the direction of the engine.

: Take out the screw (1) and

remove the control handle.

: Take out the screws (2) and

remove the handle molding.

932RA293

: Remove the torsion spring.

: Remove the throttle trigger (1)

with attached throttle cable (2)

from the pivot.

936RA251

: Disconnect the throttle cable

from the throttle trigger.

936RA249

: Take the slide (1) out of the guide

and remove the throttle cable.

249RA104

: Lift the interlock lever (1) slightly

and turn it sideways until the

torsion spring (2) is relaxed.

: Pull the interlock lever (1) off the

pivot.

936RA253

: Remove the torsion spring

(arrow).

Install in the reverse sequence.

8.7 Control Handle on Bike Handle from 2002

8.7.1 Throttle Trigger/Interlock Lever
