Stihl FS 85 Service Manual

57FC 75, FC 85, FH 75, FS 75, FS 80, FS 85, HL 75, KM 85, KW 85

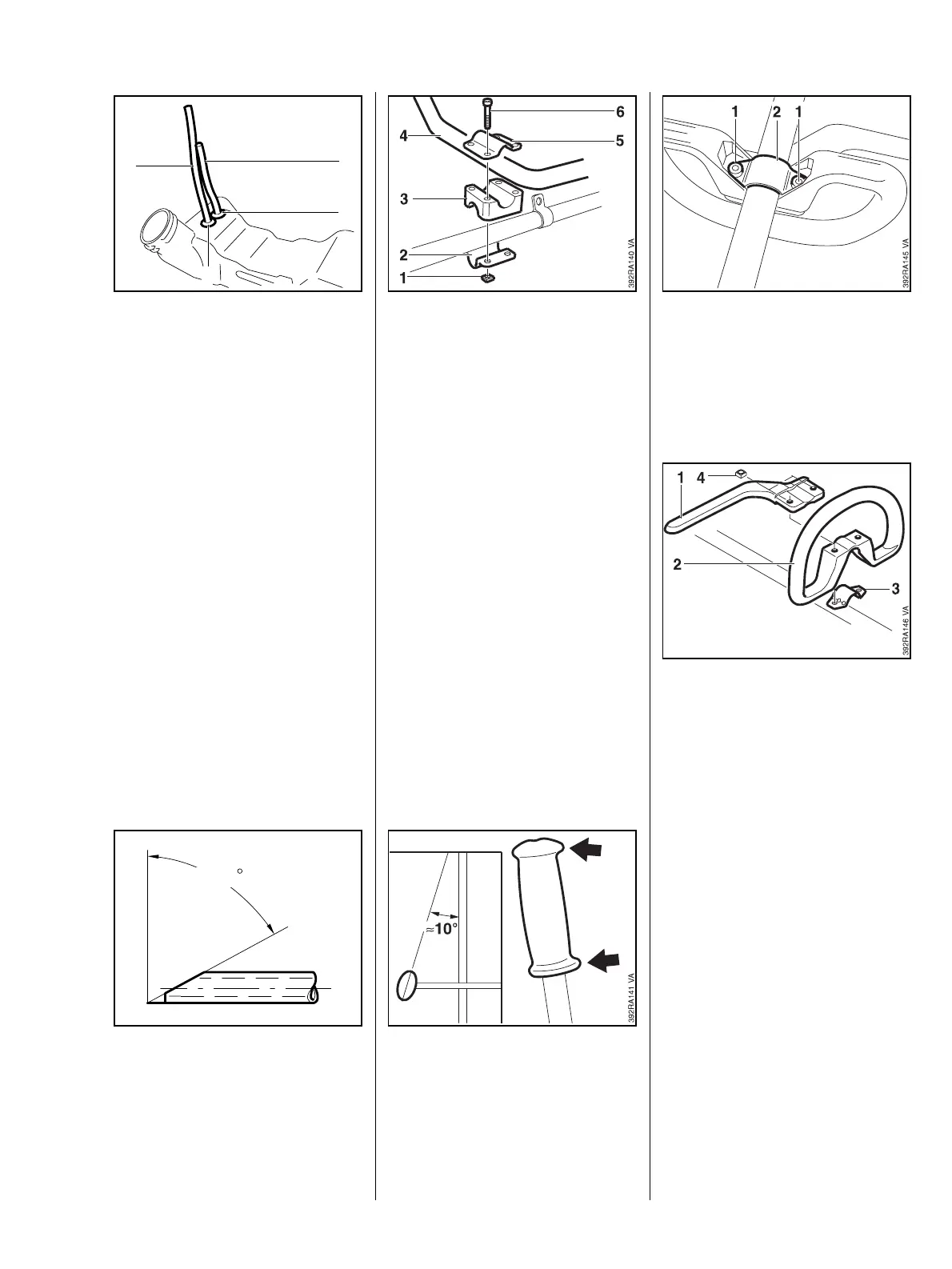

: Pull out the vent hose (1) with
grommet (2) and fuel hose (3)
with grommet (4).
Install in the reverse sequence.
VA
936RA186
1
4
3
2
To ease installation, cut the end of
the vent hose to an angle of about
60°.
VA
362RA166
ca.60
FH 75, FS 80, 85, 85 T, KM 85 only
– Remove the control handle,
b 8.5
: Unscrew the nuts (1) (if fitted).
: Remove the lower clamp (2),
clamp block (3), bike handle (4)
and upper clamp (5) with
screws (6).
– To replace left grip, carefully cut it
open and pull it off.
– Use protective jaws (prism jaws)
to clamp the bike handle in a vise.
– Coat inside of opening in new
grip with a little STIHL press fluid,
b 12.
: Push the grip into position so that
the longer ends (arrows) point
towards the gearbox at an angle
of 10 - 15 degrees to the drive
tube.
FH 75, HL 75, KW 85 only
: Take out the screws (1).
: Remove the lower clamp (2).
: Remove the barrier bar (1), loop
handle (2) and upper clamp (3).
: Take the square nuts (4) out of
the barrier bar.
Install in the reverse sequence.
10. Drive Tube
10.1 Bike Handle
10.2 Loop Handle
10.2.1 Loop Handle with Barrier
Bar
