Stihl FS 85 Service Manual

62 FC 75, FC 85, FH 75, FS 75, FS 80, FS 85, HL 75, KM 85, KW 85
– Remove the drive shaft, b 10.3
– Remove the bike handle, b 10.1
– Remove the loop handle, b 10.2
Version up to 2002
: On loop-handled machines,

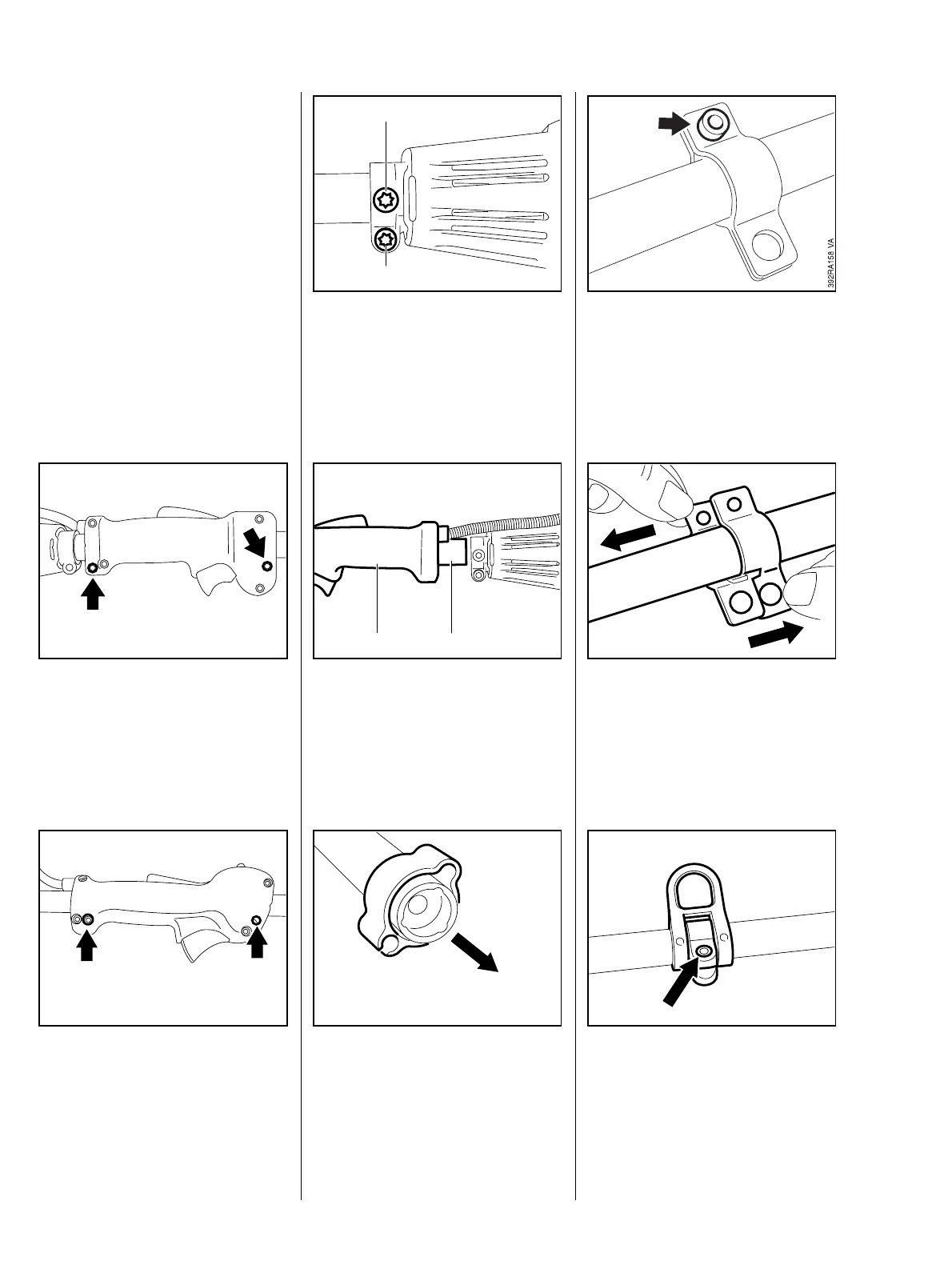

loosen the clamp screws
(arrows) in the control handle.
VA
936RA232
Version from 2002
: Loosen the clamp screws
(arrows) in the control handle.
VA
936RA313
: Take the fixing screw (1) out of
the AV sleeve.
: Loosen the clamp screw (2).
VA
936RA233
1
2
– Pull out the drive tube.
: On loop-handled machines, pull
the drive tube (1) out of the
control handle (2) at the same
time.
VA
936RA210
2 1
: Pull off the throttle cable retainer
(if fitted).
VA
936RA211
: Remove the screw (arrow) from
the carrying ring.
: Pull the carrying ring apart and
take it off the drive tube.
FH 75, HL 75 only
VA
936RA266
: Loosen the screw (arrow) on the
carrying ring.
– Pull off the carrying ring.
Install in the reverse sequence.
VA
936RA067
10.4 Drive Tube
10.4.1 FS 80, 85, FH 75, HL 75
