Stihl FSA 30.0 User Manual

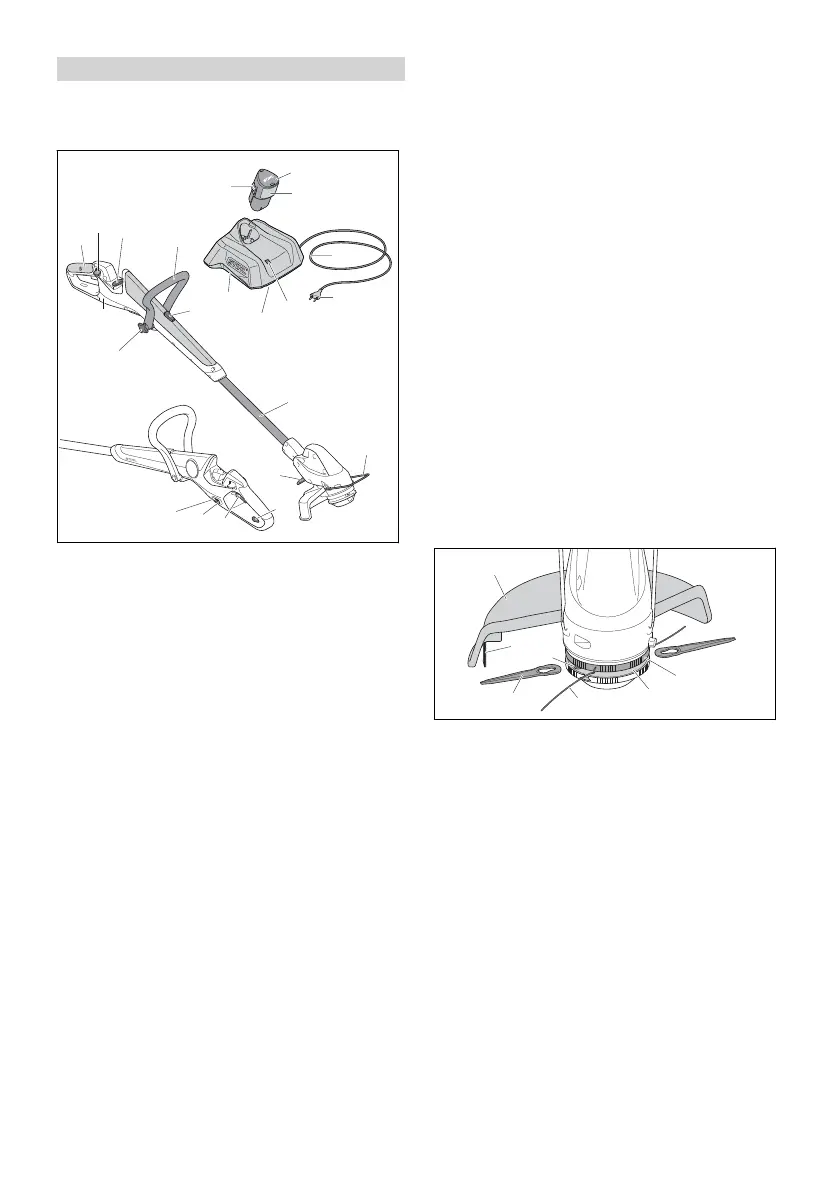

3 Overview
3.1 Brushcutter, battery and
charger
10
9
7
8
5
4
12
11
1
2
3
6
18
#
15
14
16
17
19
#
#
13
00000099120_001
1 Control handle
The control handle is used for operating,
holding and guiding the brushcutter.
2 Locking levers
Unlocks the trigger.
3 Battery compartment
Holds the battery.
4 Loop handle
For holding and controlling the brushcutter.
5 Locking button
Locks the shaft at the required length.
6 Shaft
The shaft connects all components.
7 Bump guard
Protects the objects from contact with the cut‐
ting attachment.
8 Levers
Locks the selected angle between the shaft
and the motor housing.
9 Star knob nut
Secures the loop handle to the shaft.
10 LEDs
The LEDs indicate the state of charge of the
battery and any faults.
11 Pushbutton
Activates the LEDs on the brushcutter.
12 Trigger
Switches the brushcutter on and off.
13 Ring
Serves to hang up the brushcutter.
14 Mains plug
The mains plug connects the connecting
cable with a socket
15 Connecting cable
The connecting cable connects the charger to
the mains plug.
16 LED
The LED indicates the status of the charger.
17 Charger
The charger charges the battery.
18 Battery
The battery supplies power to the brushcutter.
19 Locking hook
Holds the battery in the battery compartment.
# Rating plate with machine number
3.2 Deflector and cutting attach‐
ments
1
2
3
6
5
4
7
00000099121_001
1 Deflector
Protects the user from flying debris and con‐
tact with the cutting attachment.
2 Line-limiting blade
The line-limiting blade trims the surplus mow‐
ing line to correct length while working.
3 Blade
The blades cut the grass.
4 Mounting
The mounting secures the blades in position.
5 Mowing line
The mowing lines cut grass.
6 Mowing head
Houses the mowing lines and cutting blades.
7 Fanwheel
Cools the electric motor.
3 Overview English
0458-039-0101-A 3
