Stihl HLA 86 User Manual

0458-185-9821-A
46

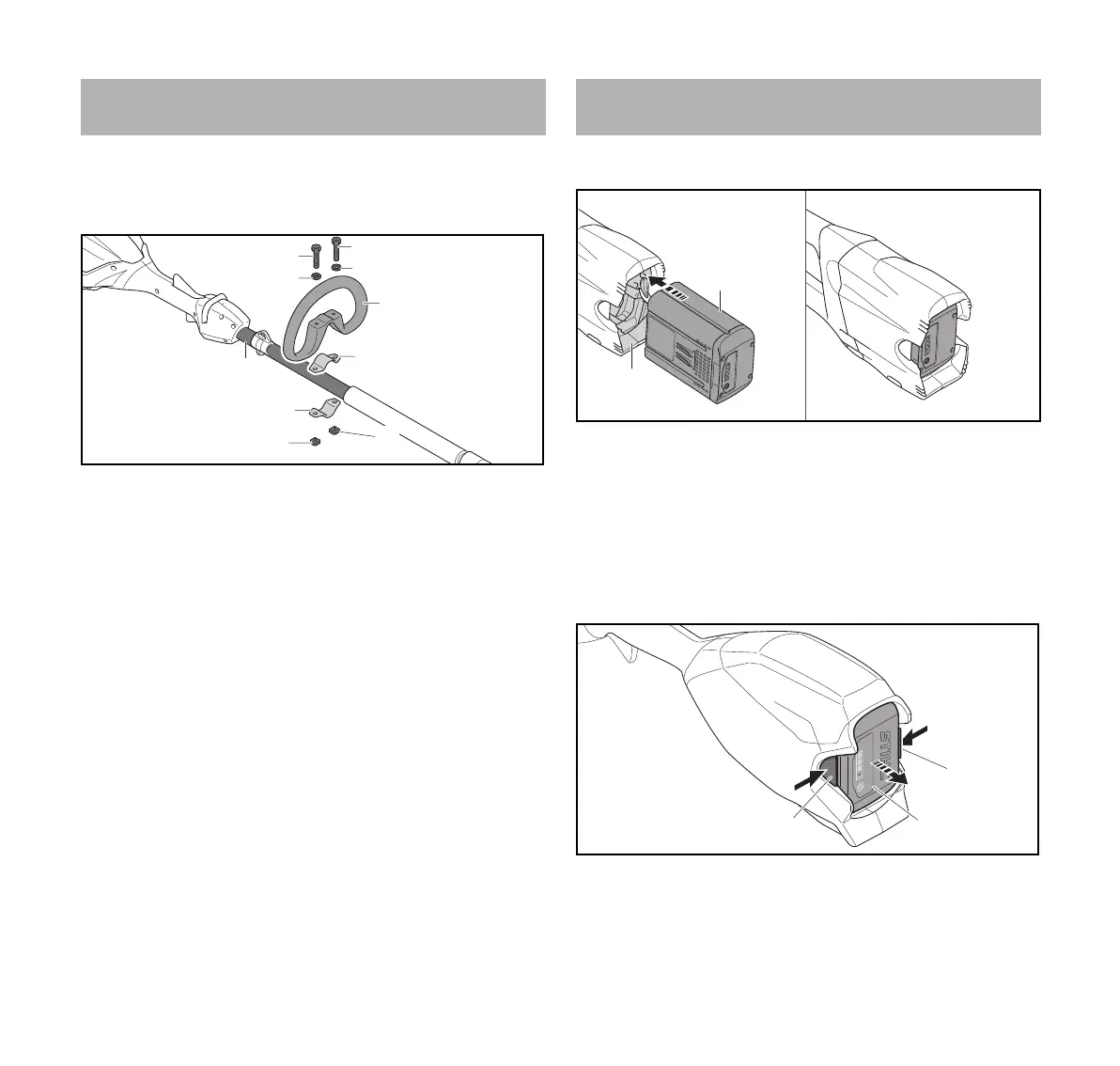

English 7 Assembling the Hedge Trimmer
7.1 Mounting the Loop Handle (HLA 66)
► Switch off the long-reach hedge trimmer and remove the
battery.
► Fit the clamp (4) in the loop handle (3).
► Place the loop handle (3) with clamp (4) on the shaft (5).
► Fit the washers (2) on the screws (1).
► Press the clamp (6) against the shaft (5).
► Insert the screws (1) through holes in the loop handle (3)
and clamps (4 and 6).
► Fit and tighten down the nuts (7) firmly.
8.1 Inserting the battery
► Insert the battery (1) up to the limit stop into the battery
compartment (2).
The battery (1) engages with a click and is now locked.
8.2 Removing the Battery
► Lay the long-reach hedge trimmer on a level surface.
► Keep one hand in front of the battery compartment so that
the battery (2) cannot fall out.
► Press both locking levers (1).
The battery (2) is released and can be removed.
7 Assembling the Hedge Trimmer
7
4
6
1
1
2
2
5
3
7
0000097231_001
8 Removing and Fitting the Battery
1
2
0000-GXX-2991-A0
1
1
2
0000097076_001
