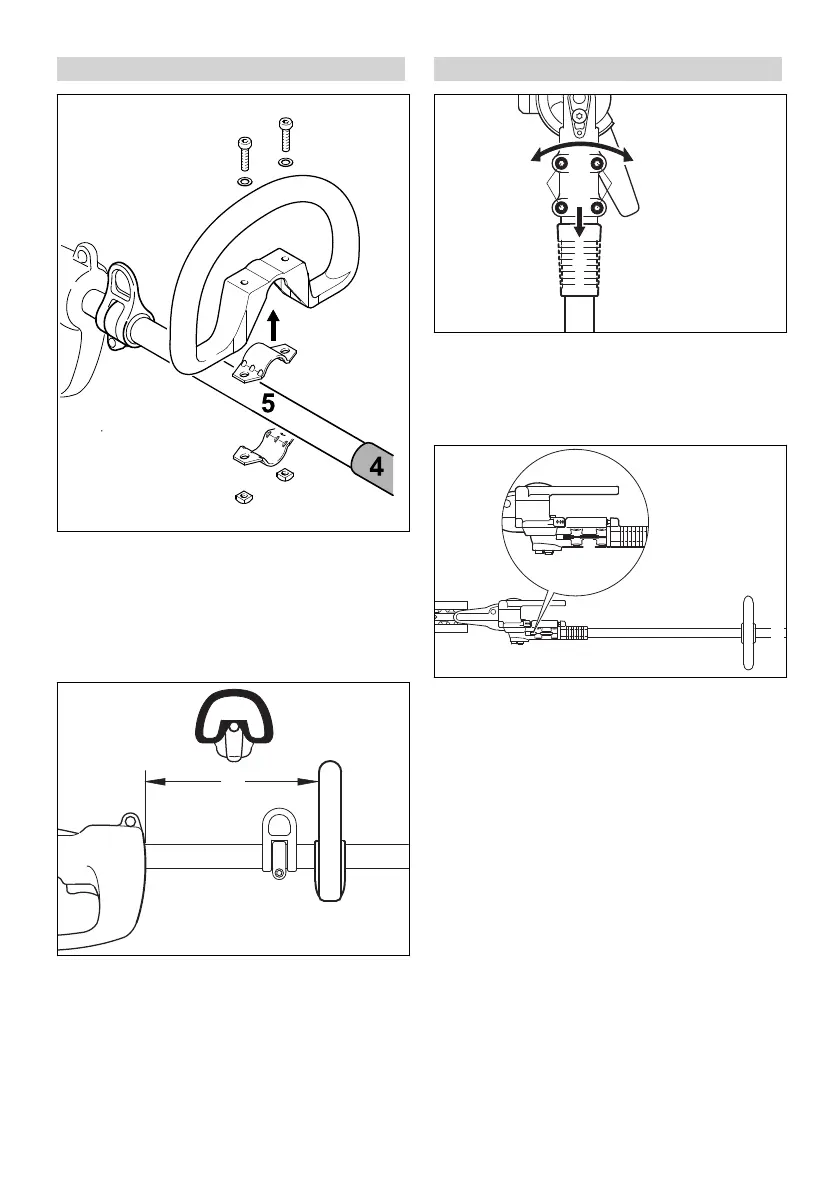

5 Mounting the Loop Handle
► Place the clamp (1) in the loop handle (2) and
place it between the lifting eye (3) and the
handle hose (4) on the shaft (5)
► Position the clamp (6) against the shaft
► Line up the holes
► Insert the screws (7) with washers (8)
► Fit the square nuts (9) and screws
► Align the loop handle (2) and move it to the
most comfortable position
Distance (A) must not be more than 45 cm. Rec‐
ommendation: about 35 cm
► Tighten screws
6 Mounting the Gearbox
► Loosen the clamp screws (1)
► Line up the sliding sleeve (2) – it must be in
line with the opening in the angle drive
► Push the gearbox (3) onto the drive tube (4),
turn the gearbox back and forth as necessary
► Once the end of the drive tube is inserted
beyond the slot in the clamp (5), push the
gearbox fully home
► Screw in the clamping screws as far as possi‐
ble
► Align the gear unit (3)
► Tighten clamping screws
5 Mounting the Loop Handle English
0458-277-0121-B 9
