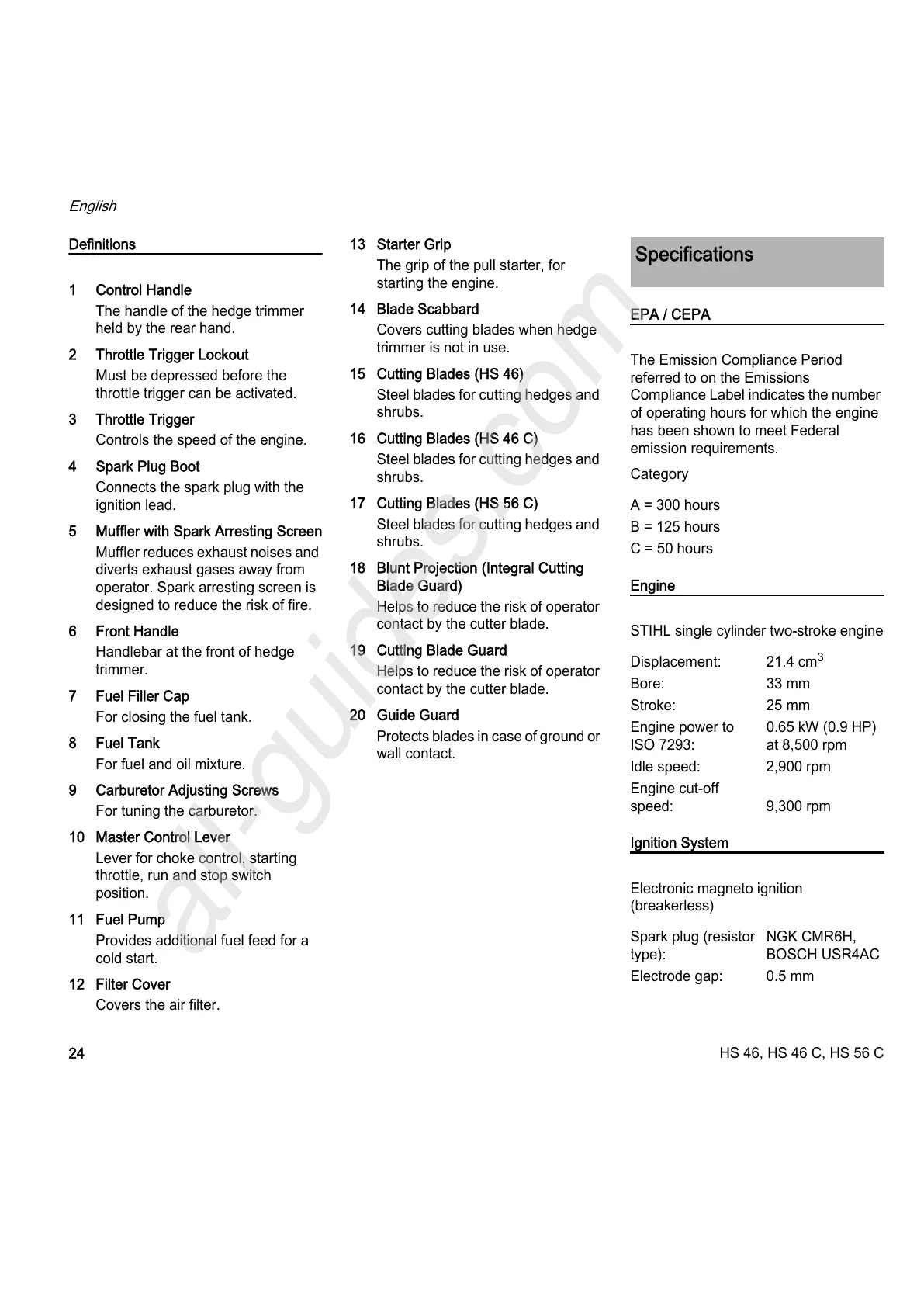

Stihl HS 56 C User Manual

HS 46, HS 46 C, HS 56 C
English
24
Definitions
1 Control Handle
The handle of the hedge trimmer
held by the rear hand.
2 Throttle Trigger Lockout
Must be depressed before the
throttle trigger can be activated.
3 Throttle Trigger
Controls the speed of the engine.
4 Spark Plug Boot
Connects the spark plug with the
ignition lead.
5 Muffler with Spark Arresting Screen
Muffler reduces exhaust noises and
diverts exhaust gases away from
operator. Spark arresting screen is
designed to reduce the risk of fire.
6 Front Handle
Handlebar at the front of hedge
trimmer.
7 Fuel Filler Cap
For closing the fuel tank.
8 Fuel Tank
For fuel and oil mixture.
9 Carburetor Adjusting Screws
For tuning the carburetor.
10 Master Control Lever
Lever for choke control, starting
throttle, run and stop switch
position.
11 Fuel Pump
Provides additional fuel feed for a
cold start.
12 Filter Cover
Covers the air filter.
13 Starter Grip
The grip of the pull starter, for
starting the engine.
14 Blade Scabbard
Covers cutting blades when hedge
trimmer is not in use.
15 Cutting Blades (HS 46)
Steel blades for cutting hedges and
shrubs.
16 Cutting Blades (HS 46 C)
Steel blades for cutting hedges and
shrubs.
17 Cutting Blades (HS 56 C)
Steel blades for cutting hedges and
shrubs.
18 Blunt Projection (Integral Cutting
Blade Guard)
Helps to reduce the risk of operator
contact by the cutter blade.
19 Cutting Blade Guard
Helps to reduce the risk of operator
contact by the cutter blade.
20 Guide Guard
Protects blades in case of ground or
wall contact.
EPA / CEPA
The Emission Compliance Period
referred to on the Emissions
Compliance Label indicates the number
of operating hours for which the engine
has been shown to meet Federal
emission requirements.
Category
Engine
STIHL single cylinder two-stroke engine
Ignition System
Electronic magneto ignition
(breakerless)
Specifications
A = 300 hours
B = 125 hours
C= 50hours
Displacement: 21.4 cm
3
Bore: 33 mm
Stroke: 25 mm
Engine power to
ISO 7293:
0.65 kW (0.9 HP)
at 8,500 rpm
Idle speed: 2,900 rpm
Engine cut-off
speed: 9,300 rpm
Spark plug (resistor
type):
NGK CMR6H,
BOSCH USR4AC
Electrode gap: 0.5 mm
