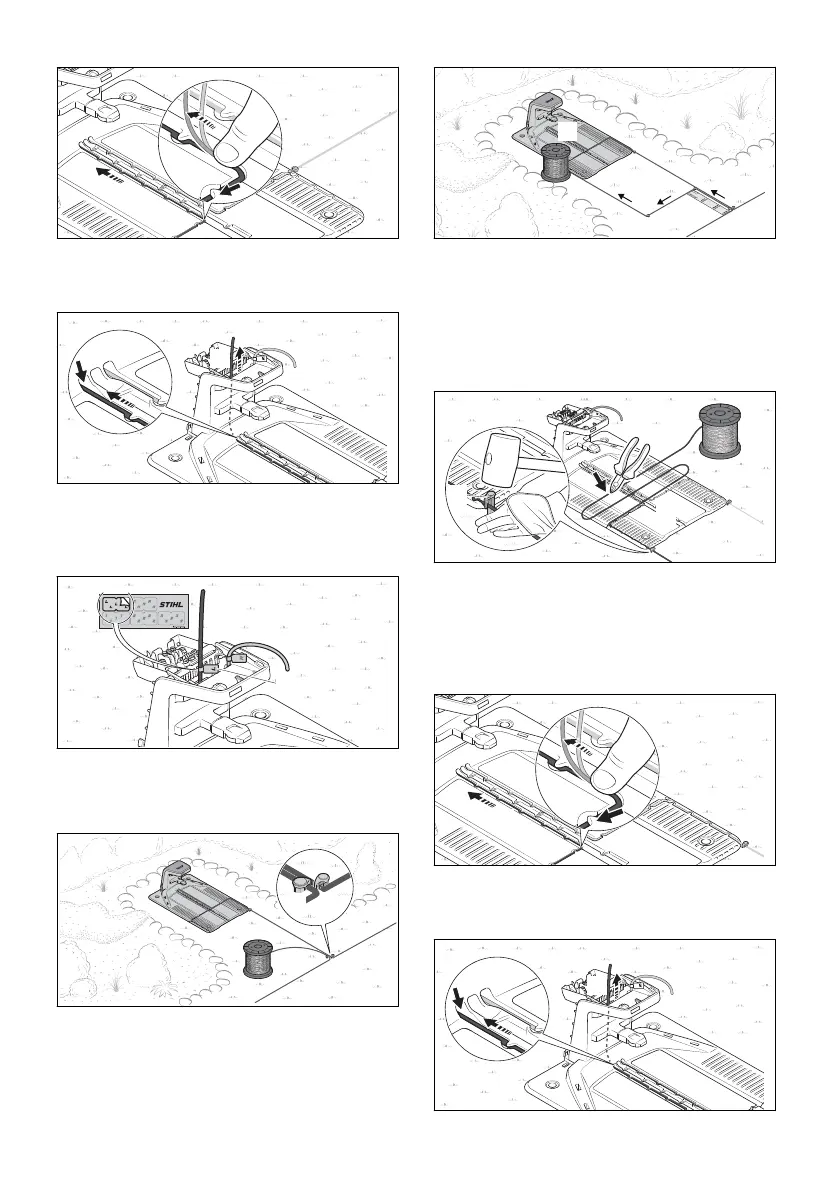

► Install the perimeter wire (1) in the base plate
so that the guide wire lies flat in the cable duct
and is secured by the hook (4).
► Insert the perimeter wire (1) into the left con‐
duit (5) and feed it through.
Push the wire end (1) upward inside the docking
station.
► Mark the wire end (1) near the housing using
the matching cable marker (6).
Docking station outside the mowing area
► Route the perimeter wire (1) close to the
already routed perimeter wire and secure with
a fixing pin (2).
► Route the perimeter wire (1) parallel and
closely to the other perimeter wire for 37 cm
(length: 1x iMOW
®
Ruler) back to the docking
station without crossing over the perimeter
wires.
► Route the perimeter wire (1) back to the edge
and further toward the base plate (3).
► Attach the perimeter wire (1) directly on the
base plate (3) with a fixing pin (4).
► Use the perimeter wire (1) to measure two
times the width of the base plate (3) and then
cut the perimeter wire (1) to length with a wire
cutter.
► Install the perimeter wire (1) in the base plate
so that the guide wire lies flat in the cable duct
and is secured by the hook (5).
English 9 Completing the Perimeter Wire Installation
30 0458-012-0101-A
To Next Page
