Never attempt to modify the controls or safety
devices.
Keep the handles dry and clean – free from oil
and dirt – this is important for safe control of
the machine
Adjust carrying harness and handles in
accordance with body height. Observe the
chapter "Fitting the Harness"
To reduce the risk of personal injury, do not
operate your power tool if it is damaged or not
properly assembled!
To prepare for emergencies when using a har‐
ness: Practice setting down the machine quickly.
To avoid damage, do not throw the machine to
the ground when practicing.
3.4 Holding and guiding the
machine
Always hold the unit firmly with both hands on
the handles.
Make sure you always have a secure footing and
hold the machine so that the cutting blades are
always facing away from your body.
Some versions of the machine can be carried on
a harness to relieve the weight on the operator's
arms.

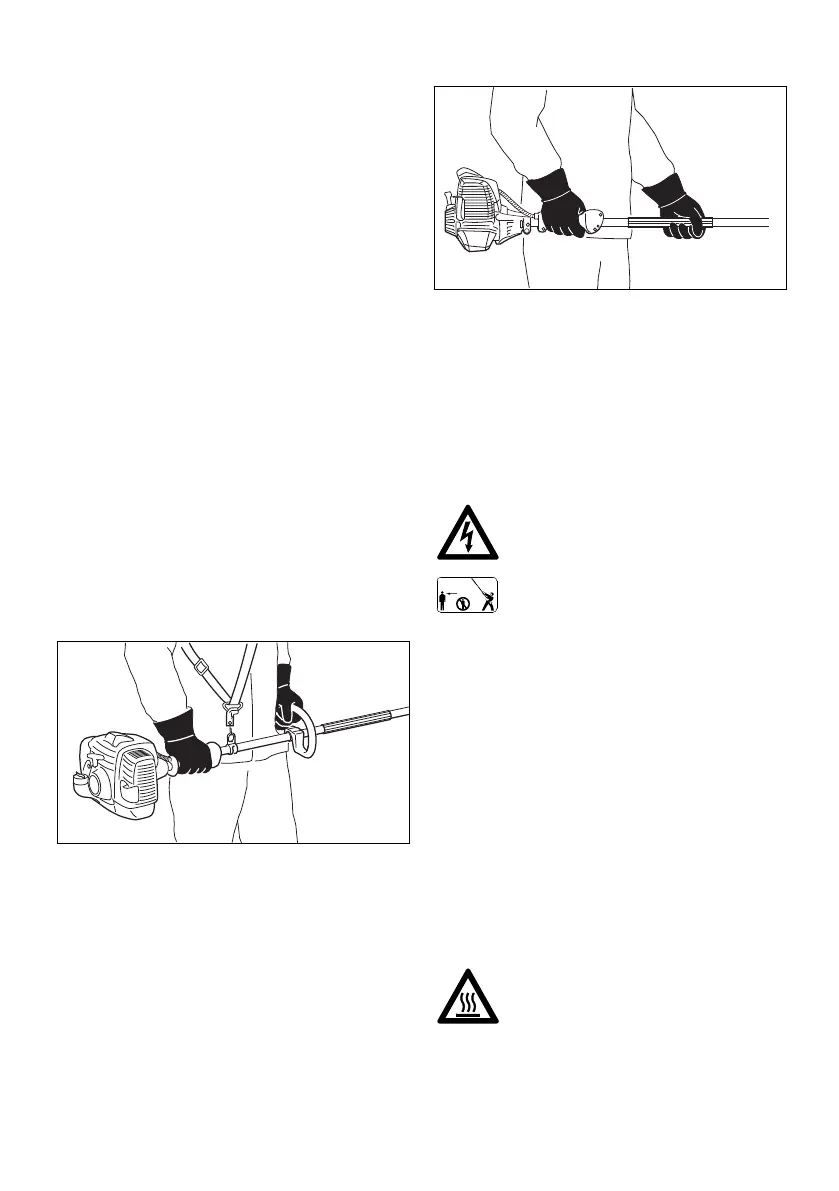

3.4.1 Models with Loop Handle
0000-GXX-1677-A0
Right hand on control handle, left hand on loop
handle on the shaft, even if you are left-handed.
Wrap your fingers and thumbs around the han‐
dles.
3.4.2 Machines with handle hose
0000-GXX-1678-A0
Right hand on control handle, left hand on han‐
dle hose on the shaft, even if you are left-
handed. Wrap your fingers and thumbs around
the handles.
3.5 While working
In the event of impending danger or in an emer‐
gency, switch off the engine immediately by mov‐
ing the slide control / stop switch/button to
0 or STOP.
This power tool is not insulated. Keep
away from power cables – danger of
electrocution!
5m (17ft)
To reduce the risk of injury from mov‐
ing blades or falling cuttings, do not
allow bystanders within 5 meters of
your own position.
This distance must also be maintained in relation
to objects (vehicles, window panes) – risk of
property damage!
Check for correct idling, so that the cutting
blades stop moving when the throttle trigger is
released. Check and correct the idle speed set‐
ting at regular intervals. If the cutting blades still
run, have your dealer check your machine and
make proper adjustments or repairs – see
instruction manual of basic power tool.
Watch the cutting blades at all times – do not cut
areas of the hedge that you cannot see.
Be extremely careful when cutting tall hedges;
check the other side of the hedge before starting
work.
The gearbox becomes hot during
operation. To reduce the risk of burn
injury, do not touch the gear housing!
Take special care in slippery conditions – damp,
snow, ice, on slopes or uneven ground!
Clear away fallen branches, scrub and cuttings
from the work area.
English
3 Safety Precautions and Working Techniques
4 0458-401-0121-E
