Operate the charger only indoors, in dry rooms and within an
ambient temperature range of 41 °F to 104 °F (5 °C to
40 °C).
The battery heats up during operation of the power tool. If a
hot battery is connected to the charger, it may be necessary
for it to cool down before charging starts. The charging
process begins only after the battery has cooled down
sufficiently.
Charging time depends on a number of factors, including
battery condition and the ambient temperature. For a
complete list of approximate charging times, see
www.stihl.com/charging-times.

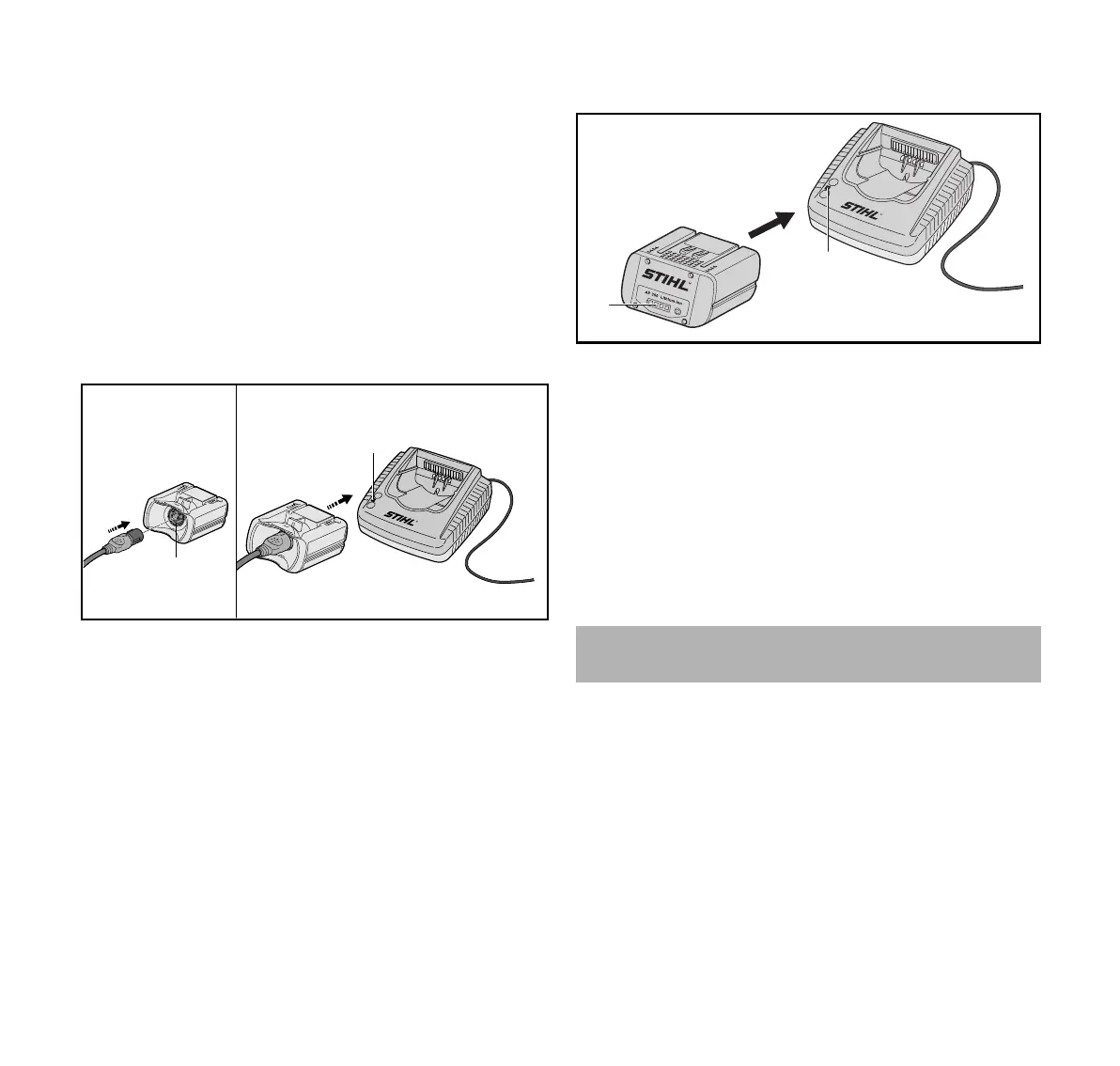

To charge an AR battery:
► Push the plug of the connecting cord (1) into the
socket (2) of the AP Adapter (3) until it stops.
► Push the AP Adapter into the charger (5) until it stops.
The LED on the charger (4) glows green when the battery
is charging.
The LEDs on the AR battery glow green and show the
state of charge.
When the LEDs on the battery turn off, the charging
process is complete and the charger will shut itself off.
► Remove the AP Adapter from the charger and disconnect
the charger's power supply cord from the electrical outlet
when charging is complete.
► Charge STIHL AR backpack batteries only with genuine
STIHL AL 300 or AL 500 series chargers.
To charge an AP battery:
► Push the battery (2) into the charger (3) until it stops.
The LED on the charger glows green when the battery is
charging.
The LEDs (1) on the battery glow green and show the
state of charge.
When the LEDs on the battery go out, the charging
process is complete and the charger will shut itself off.
► Remove the battery from the charger and disconnect the
charger's power supply cord from the electrical outlet.
► Charge STIHL AP series batteries only with genuine
STIHL AL 101, AL 300 or AL 500 series chargers.
12.1 STIHL AR Backpack Battery
12.1.1 Battery Status
Six LEDs and an acoustic signal indicate the status of the
battery.
