Stihl MS 170 User Manual

30
English / USA
MS 170, MS 180, MS 180 C

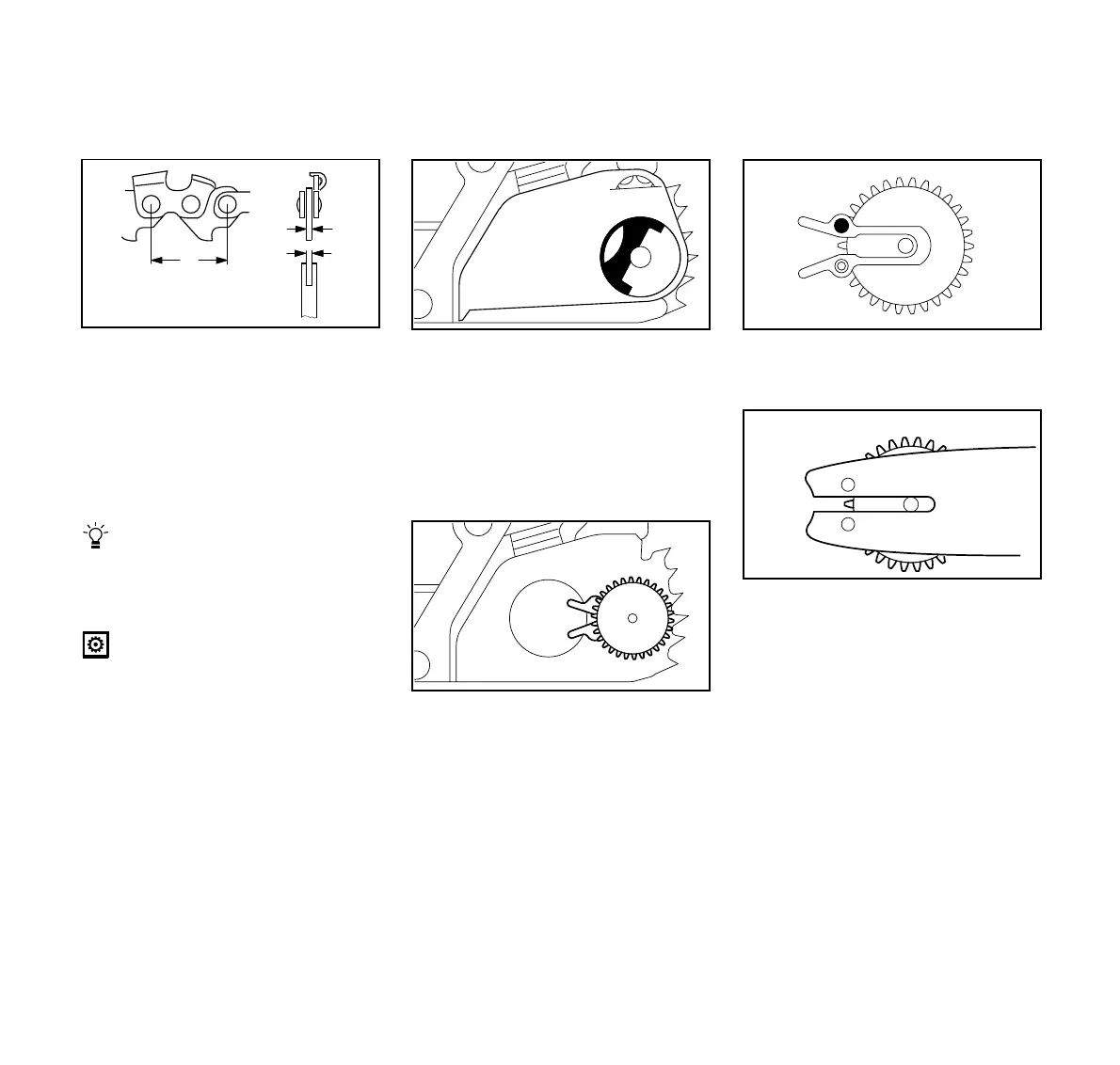

You can run chains of different pitches
on this chainsaw – depending on the
chain sprocket (see “Specifications”):
The chain pitch (1) must match the pitch
of the sprocket and the guide bar (for
Rollomatic). The drive link gauge (2)
must match the bar groove width (3).
The pitch is marked on the chain
sprocket and guide bar in inches
(e.g. 3/8 or .325). The groove width
is marked on the guide bar in
millimeters (e.g. 1.6).
If non-matching components of the
wrong pitch or drive link gauge are
run together on the same machine
they may be damaged beyond
repair after a short period of
operation.
: Pull out the hinged handle (4) so
that it snaps into position.
: Turn the wingnut (5) counterclock-
wise until it hangs loose in the
sprocket cover (6).
: Remove the sprocket cover.
: Remove the tensioning gear (7)
and turn it over.
: Take out the screw (8).
: Position the tensioning gear (7)
against the guide bar (9).
Mounting the Bar and Chain
(Quick Chain Tensioner)
001BA105 KN
1
2
3
a
t = a : 2
6
140BA000 KN
4
5
7
140BA001 KN
8
140BA002 KN
7
9
140BA003 KN

Stihl MS 170 Specifications

General

Idle speed	- RPM
Chain pitch	3/8 \
Blade length	350 mm
Product color	Black, Orange, White
Automatic oiling	Yes
Oil tank capacity	0.145 L
Fuel tank capacity	0.25 L
Engine displacement	30.1 cm³
Engine power	1.7 hp
Power source	Gasoline

Weight and Dimensions

Weight	3900 g
