66 MS 192 T
– Remove fan housing, b 10.2
– Remove the sprocket cover and
bar and chain, b 5.1
– Remove the carburetor, b 14.2
– Push the intake elbow on the
carburetor side out of the handle
housing, b 14.5
The handle need not be dismantled
when replacing the handle housing,
as the handle housing is replaced
as a complete unit – see spare parts
list –

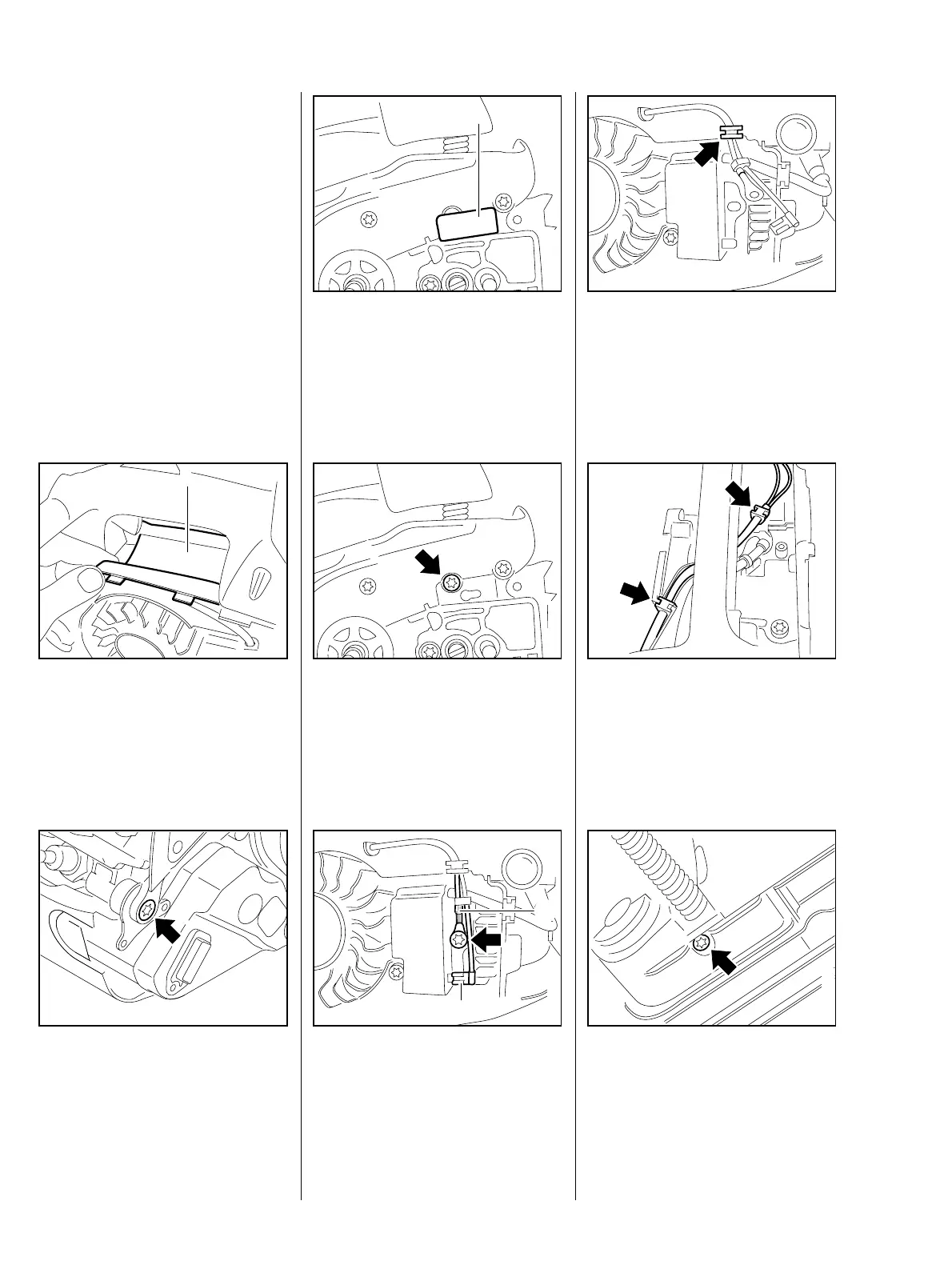

: Remove the cover (1).
217RA103 TG
1
: Remove the screw (arrow).
217RA108 TG
: Remove the bumper strip (1).
217RA172 TG
1
: Remove the screw (arrow).
217RA169 TG
: Take out the screw (arrow) and
remove the ground wire (2).
: Remove the short circuit wire (1).
217RA099 TG
1
2
: Remove the cable guide (arrow).
217RA101 TG
: Remove the cable guides
(arrows).
217RA320 TG
– Disconnect the spring of the front
handle from the engine housing.
: Remove the screw (arrow).
217RA160 TG
12.4 Handle Housing
