65MS 192 T
– Reassemble parts in reverse
order.
– Tightening torques, b 3.5
– Check correct functioning.
– Remove the handle moulding,
throttle rod, interlock lever and
throttle trigger, b 12.1

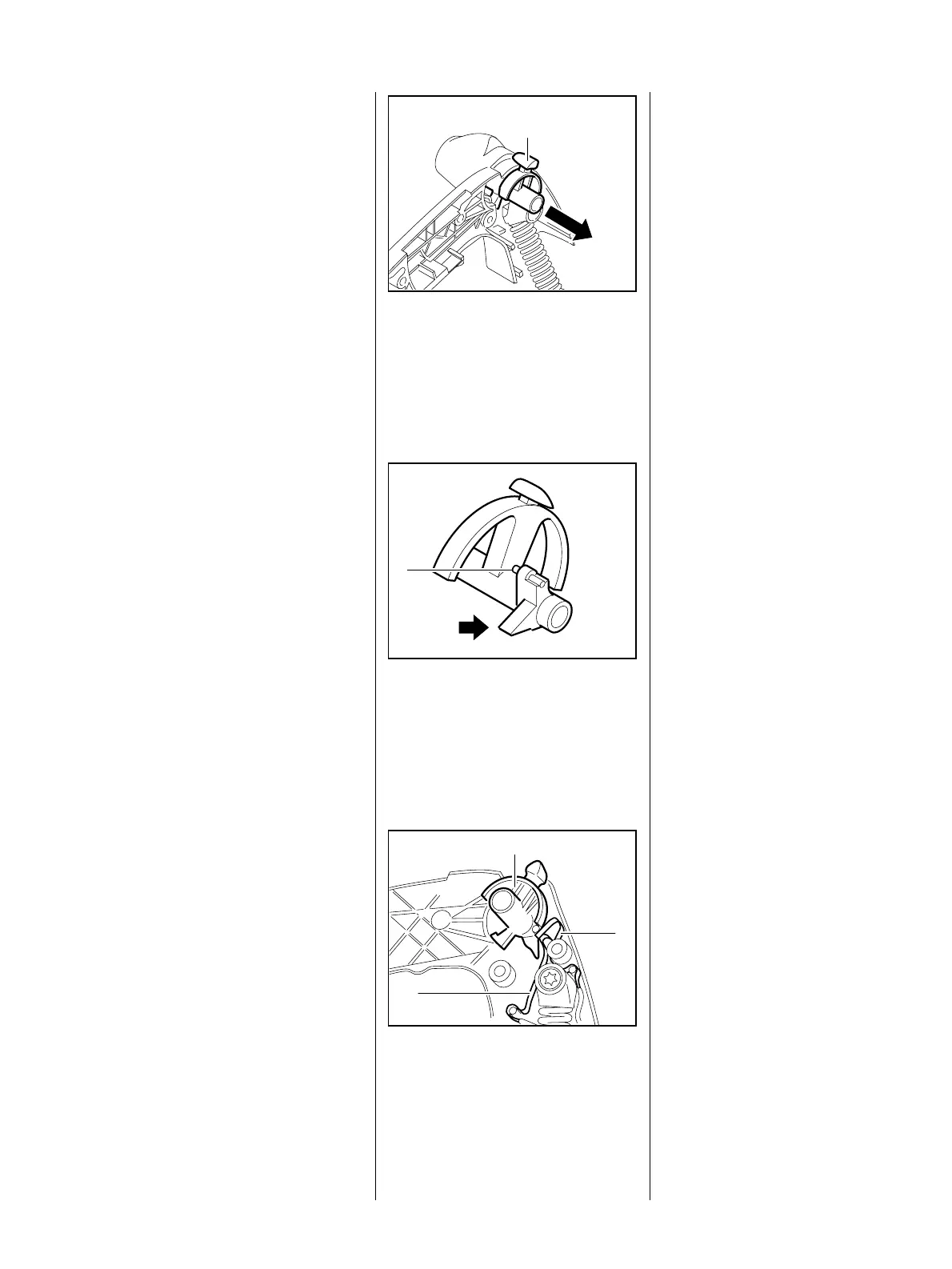

: Pull the switch shaft (1) out of the
bearing.
217RA246 TG
1
: Check the switch shaft – the
metal pin (1) must be firmly
seated in the hole and the cam
(arrow) must be present.
217RA167 TG
1
: Fit the switch shaft (1), pushing
the rear contact spring (3) slightly
to the side.
217RA166 TG
1
3
Check operation
The contact springs are fitted in the
handle housing at different depths.
The rear contact spring (3) and the
front contact spring (2) must make
contact with the metal pin of the
switch shaft when the switch shaft
(1) is in position "0".
– Reassemble remaining parts in
reverse order.
– Tightening torques, b 3.5
– Check correct functioning again.
