64 MS 192 T
When installing the interlock lever
(1) and throttle trigger (2) ensure
that the peg on the interlock lever
engages in the guide (arrow).
1

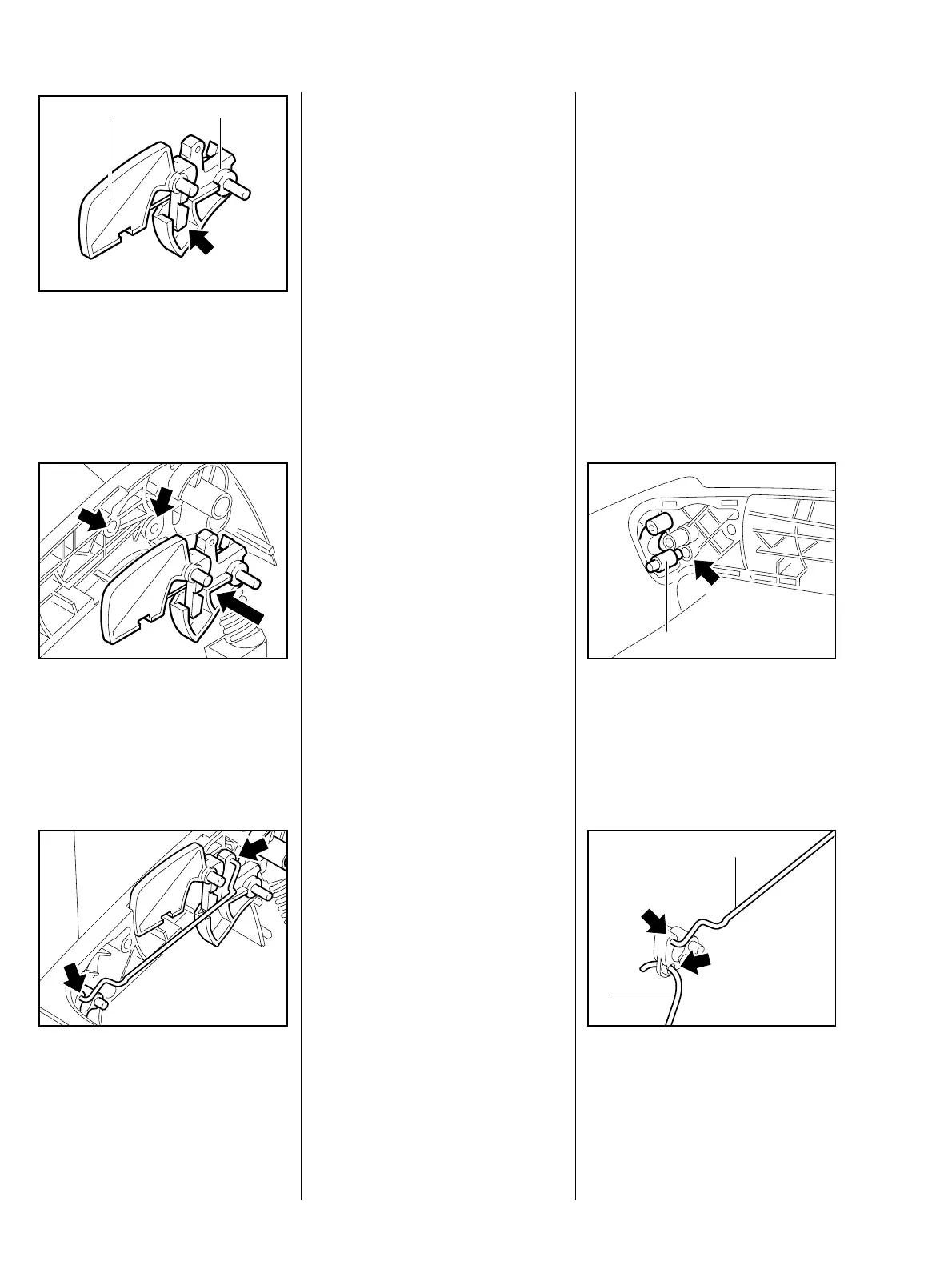

217RA242 TG
2
: Fit the interlock lever and throttle
trigger in the bearing guides
(arrows).
217RA308 TG
: Push the throttle rod into the
holes (arrows) on the throttle
trigger and double lever.
– Install the handle moulding, fit the
screws and tighten them down
securely.
217RA239 TG
– Tightening torques, b 3.5
– Check correct functioning.
– Remove the air filter, b 14.1
– Remove the air filter base,
b 14.1.1
– Remove the handle moulding,
throttle rod, interlock lever and
throttle trigger, b 12.1
– Unhook the rod from the
carburetor, b 14.2
: Remove the double lever (1) from
the bearing hole (arrow).
217RA244 TG
1
: Install the double lever so that the
throttle rod (1) can be fitted in the
upper hole (arrow) and the
throttle rod from the carburetor
(2) in the lower hole (arrow).
217RA245 TG
1
2
12.2 Double Lever
