63MS 192 T

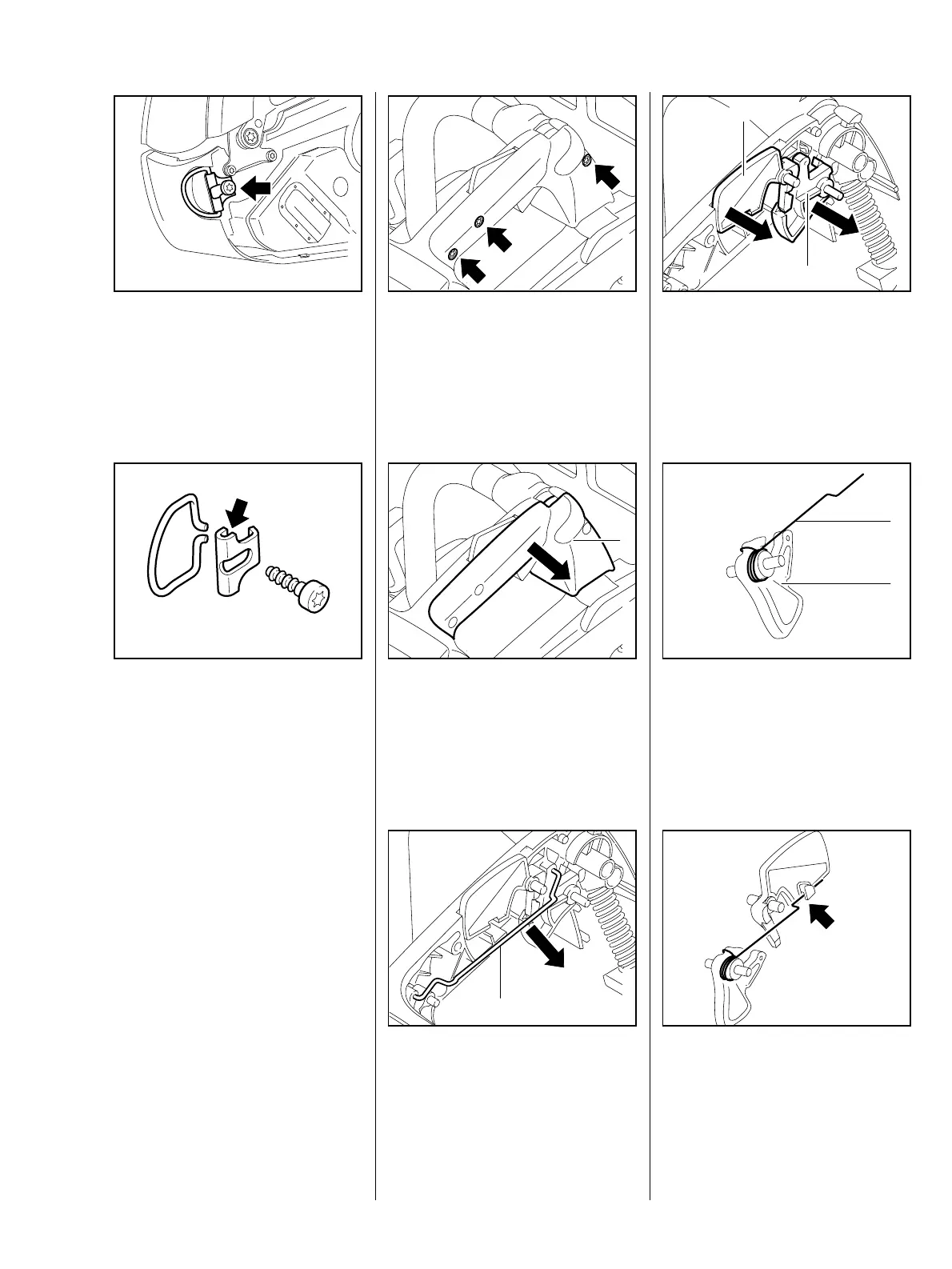

: Remove the screw (arrow).
217RA186 TG
– Examine the retaining plate and
loop and replace them if
necessary.
: Fit the loop in the retaining plate
(arrow) and position both parts on
the engine housing.
217RA171 TG
– Insert and tighten down the
screw.
– Tightening torques, b 3.5
: Take out the screws (arrows).
217RA237 TG
: Carefully remove the handle
moulding (1).
Throttle rod and actuating levers
may drop out as the handle
moulding is removed.
217RA238 TG
1
: Remove the throttle rod (1).
1
217RA240 TG
: Remove the interlock lever (1)
and throttle trigger (2).
217RA241 TG
1
2
: Hook the torsion spring (1) into
the throttle trigger (2).
– note the installed position –
– Examine the torsion spring and
replace it if necessary.
217RA243 TG
1
2
: Place the torsion spring in the
fixture (arrows).
217RA155 TG
11.5 Loop 12. Actuating Levers
12.1 Throttle Trigger / Interlock
Lever / Throttle Rod
