Stihl MS 201 TC-M User Manual

MS 241 C-M
English
40

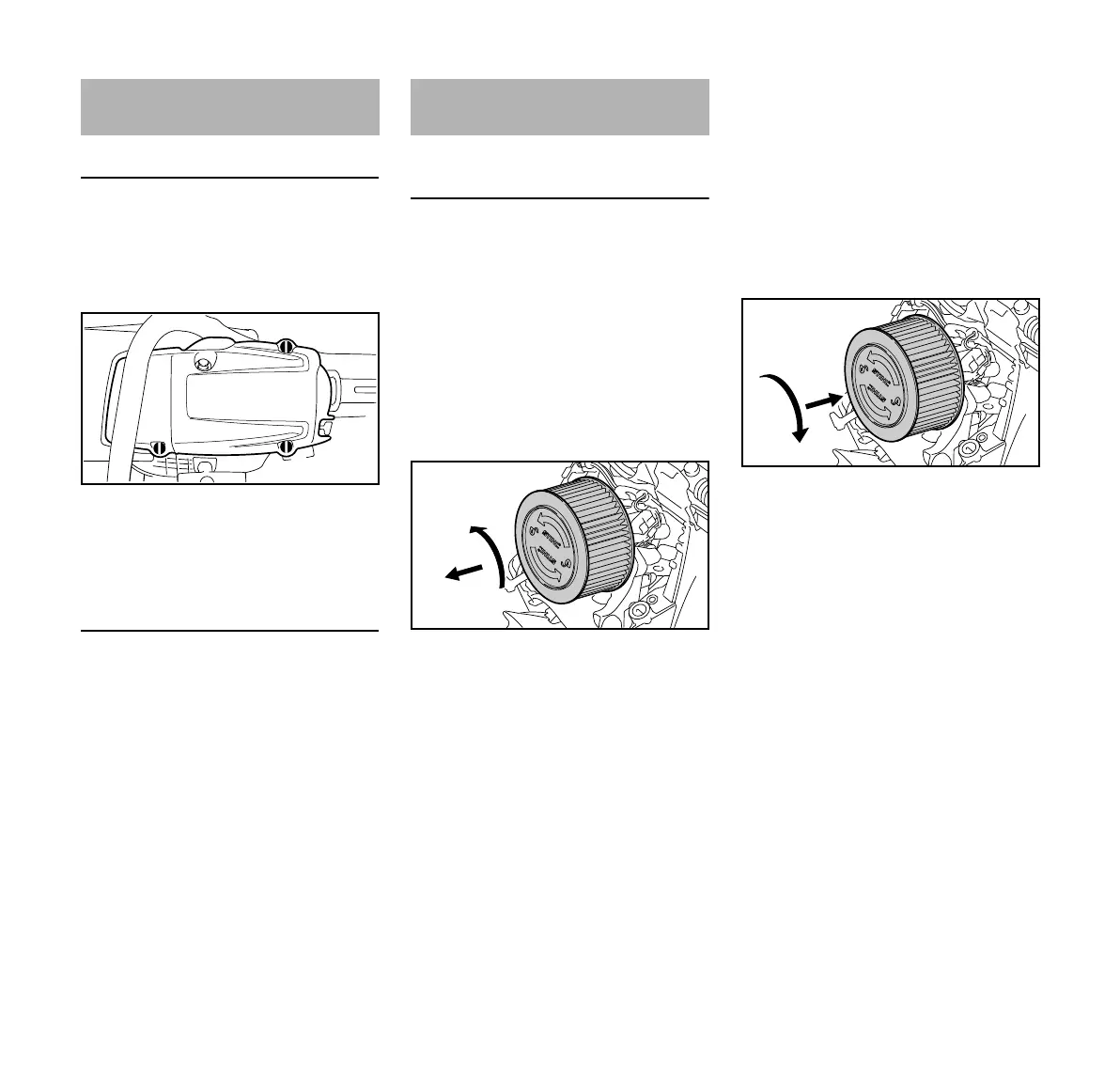

Removing the shroud
N Move the Master Control lever to the
stop position (0).
N Push the hand guard forward – the
chain is locked.
N Open the twist locks (1) by turning
them 1/4 turn counterclockwise with
the combination wrench.
N Remove the shroud (2).
Installing the shroud
N Place the shroud in position.
N Close the twist locks by turning
them a 1/4 turn clockwise.
If there is a noticeable loss of engine
power
N Remove the shroud – see "Shroud"
Removing the air filter
N Clean away loose dirt from around
the filter
NOTICE
Do not use tools to remove and install
the air filter – the air filter could be
damaged in the process.
N Turn air filter 1/4 turn
counterclockwise and remove in the
direction of the rear handle
N Always replace a damaged filter
Cleaning the air filter
N Wash the filter in STIHL special-
purpose cleaner (special
accessory) or a clean, non-
flammable cleaning liquid (e. g.,
warm soapy water) – rinse the filter
from inside to out under a water jet
– do not use high-pressure cleaners
N Dry all filter parts – do not expose to
extreme heat
N Do not oil the filter
N Reinstall filter
Installing the air filter
N Fit air filter
N Press the air filter in the direction of
the filter housing and
simultaneously turn it clockwise
until the air filter engages – the
"STIHL" logo must be horizontal
N Fit the shroud – see "Shroud"
Shroud
1
1
1
5902BA027 KN
2
Cleaning the Air Filter
1.
2.
2410BA016 KN
2410BA017 KN
2.
1.

Stihl MS 201 TC-M Specifications

General

Idle speed	3000 RPM
Motor type	2-stroke motor
Chain pitch	3/8 \
Blade length	350 mm
Product color	Black, Grey, Orange
Motor speed (max)	10500 RPM
Oil tank capacity	0.22 L
Fuel tank capacity	0.31 L
Engine displacement	35.2 cm³
Kickback protection	Yes
Engine power	2.4 hp
Power source	Gasoline
Sound power level	113 dB
Vibration emission	3.5 m/s²
Sound pressure level	100 dB

Weight and Dimensions

Weight	3700 g
