Troubleshooting chart – see 4.1.

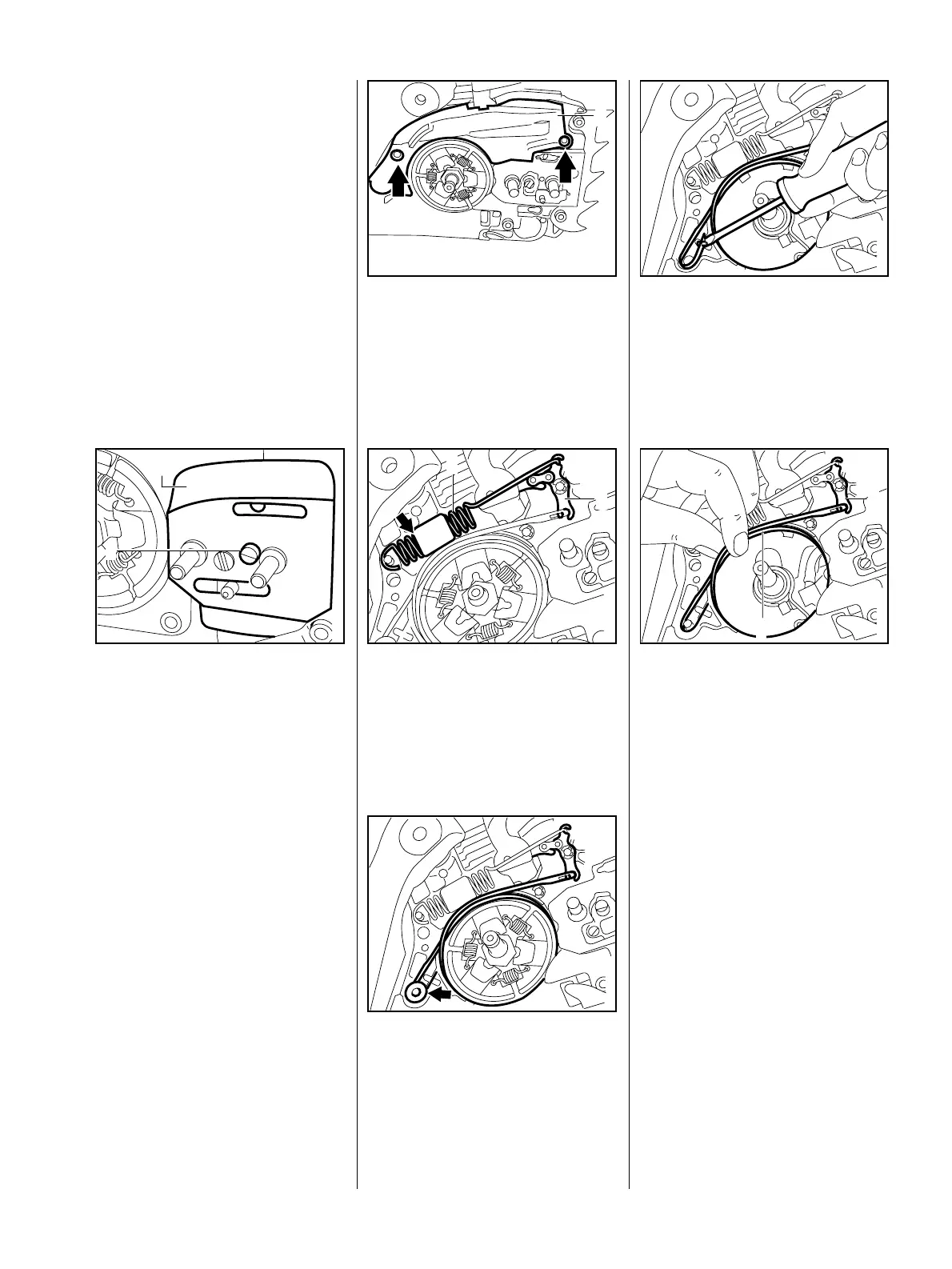

– Remove the chain sprocket
cover, bar and chain – wear work
gloves to protect your hands from
injury.
– Remove the clutch drum/chain
sprocket – see 5.1.
 Take out the screw (1).
 Remove the side plate (2).
– Engage the chain brake by
pushing the hand guard away
from the front handle.
VA
138RA004
1
2
 Take out the screws (arrows).
 Remove the cover (1).
– Relieve tension of brake spring
by pushing hand guard forward.
VA
146RA006
1
 Carefully ease the brake
spring (1) off the anchor pin and
take it off the bell crank (2).
VA
146RA007
1
2
 Take out the screw (arrow).
VA
146RA008
 Pry the brake band out of the
crankcase.
VA
146RA009
 Remove the brake band (1) from
the lugs on the crankcase.
 Disconnect the brake band from
the bell crank (2).
VA
146RA010
2
1
5.4.2 Removing
