82 MS 270, MS 280
The diaphragm pump draws fuel out
of the tank and into the carburetor
via the fuel hose. Any impurities
mixed with the fuel are retained by
the pickup body (filter). The fine
pores of the filter eventually become
clogged with minute particles of dirt.
This restricts the passage of fuel
and results in fuel starvation.
In the event of trouble with the fuel
supply system, always check the
fuel tank and the pickup body first.
Clean the fuel tank if necessary.
VA
176RA296
1

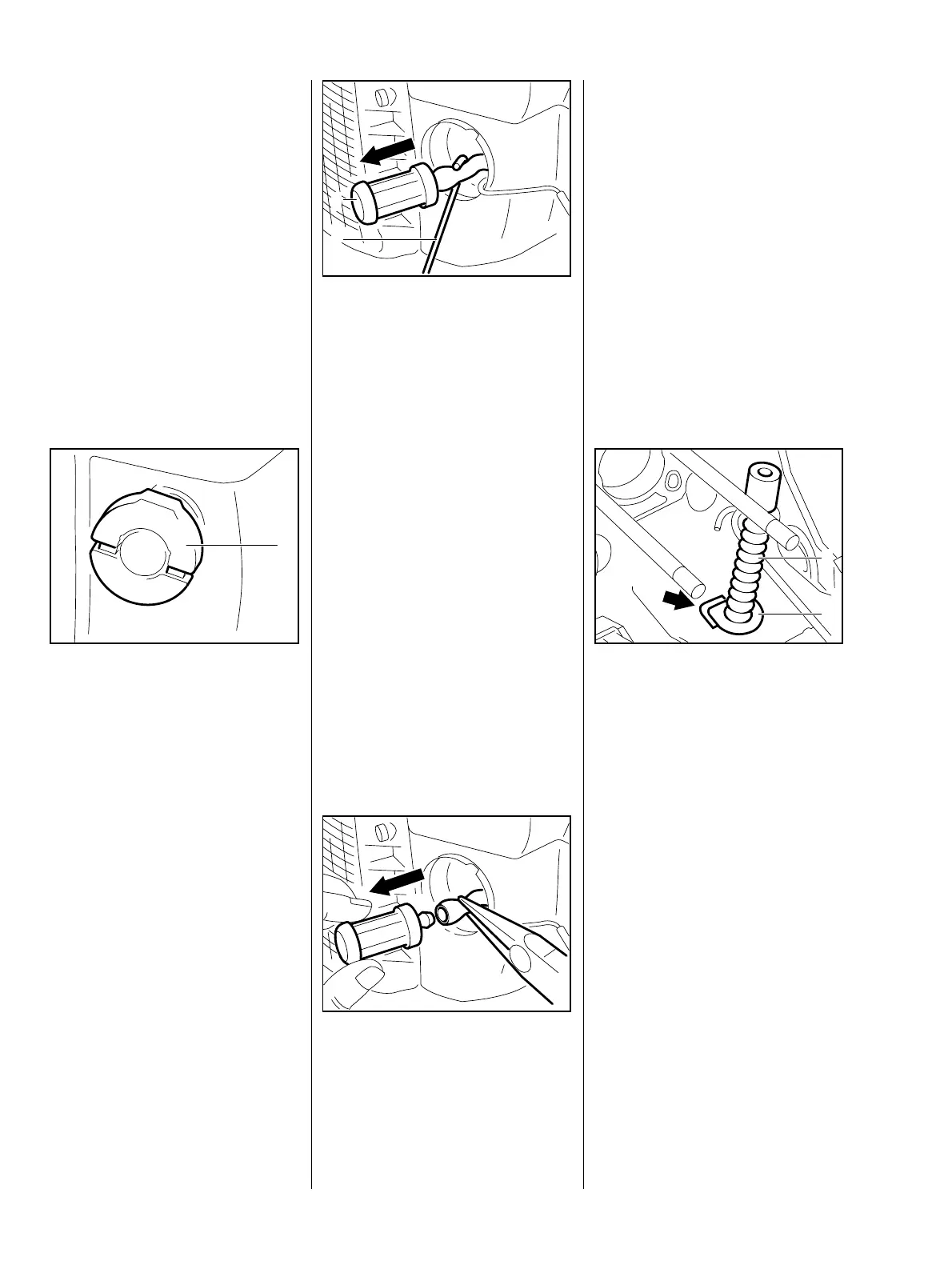

Cleaning the fuel tank
Remove the filler cap (1) and
drain the tank.
– Pour a small amount of clean
gasoline into the tank. Close the
tank and shake the saw
vigorously.
– Open the tank again and drain it.
Dispose of fuel properly.
Pickup body
Use hook (2) 5910 893 8800 to
pull the pickup body (1) out of the
fuel tank.
Do not stretch the fuel hose too
much during this operation.
VA
146RA172
2
1
Pull the pickup body off the fuel
hose.
– Fit a new pickup body.
Install in the reverse sequence.
VA
146RA173
– Remove the carburetor
– see 12.2.1.
– Pull off the pickup body
– see 12.6.
Use a screwdriver to pry the
flange of the fuel suction hose out
of the fuel tank.
Pull the suction hose (1) with
pickup body out of the tank.
Install in the reverse sequence.
VA
146RA174
1
2
Coat the hose flange (2) with a
little oil to simplify installation.
The straight side of the hose
flange must locate against the
marking (arrow) on the housing.
Reassemble all other parts in the
reverse sequence.
12.6 Pickup Body 12.7 Fuel Hose
