23MS 270, MS 280
If the brake spring anchor pin was
removed because it was worn, it
must be installed before starting the
following operations – see 5.6.

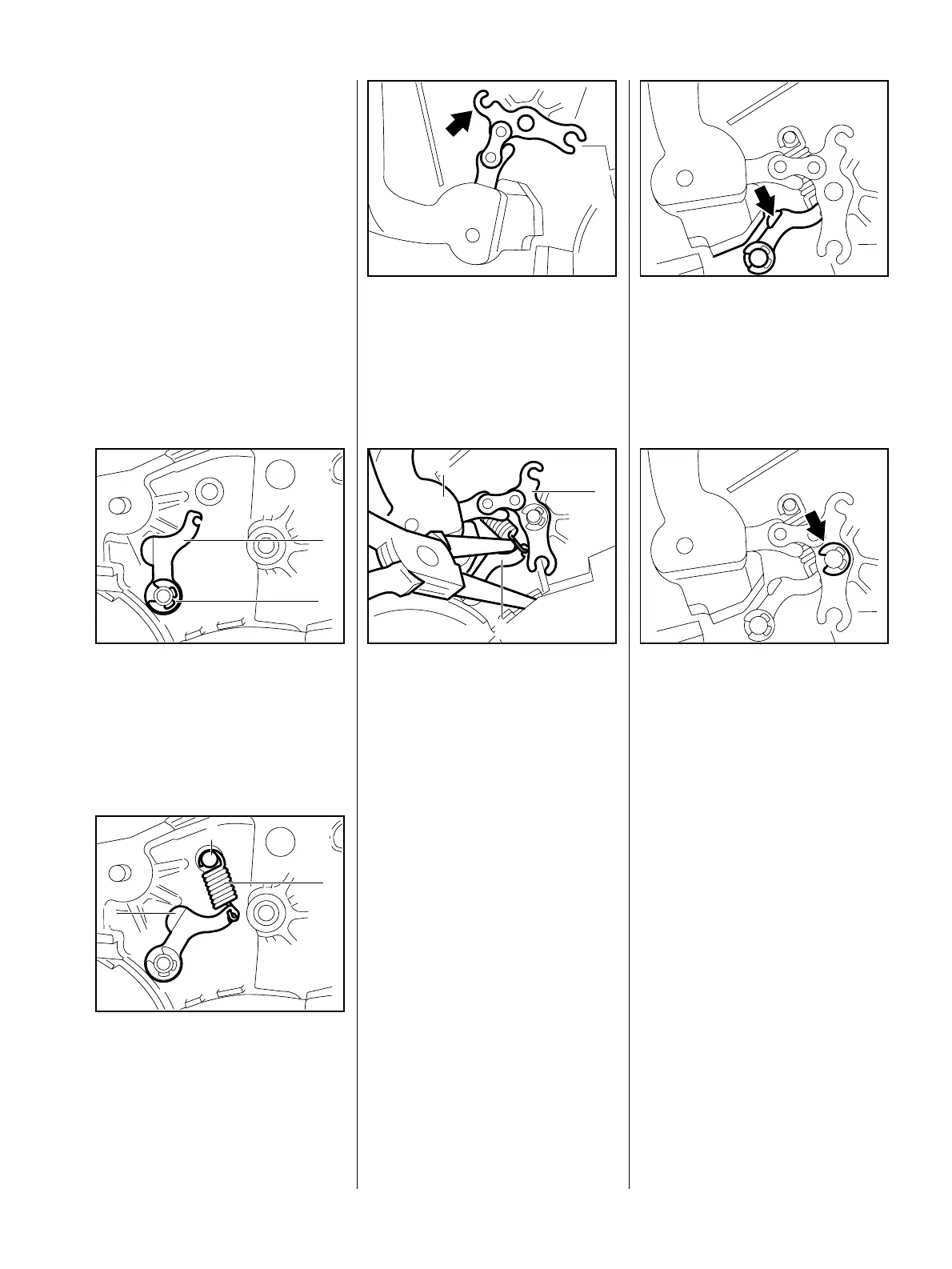

 Push the cam lever (1) into
position.
 Fit the E-clip (2).
VA
146RA211
1
2
 Attach spring (1) to pivot pin (2)
and cam lever (3).
VA
146RA210
2
3
1
 Push the bell crank into the side
of the hand guard.
The short arm of the bell crank must
point to the top of the hand guard.
VA
146RA014
 Position the bearing boss of the
hand guard (1) against the pivot
pin and fit the other side of the
hand guard over the housing.
 Position the bell crank (2) against
the pivot pin.
VA
146RA015
1
3
2
 Press the cam lever (3) slightly
downward and push the hand
guard and bell crank onto their
pivot pins.
– Tighten down the hand guard
mounting screw – see 3.5.
 Check that cam lever is properly
located on face (arrow) of hand
guard bearing boss.
VA
146RA016
 Secure bell crank with E-clip.
– Coat the brake band with chain
oil to protect it from corrosion and
help reduce "snatching" during
the first few brake applications.
VA
146RA017
5.4.3 Installing
