English 13 STIHL AR L Backpack Battery

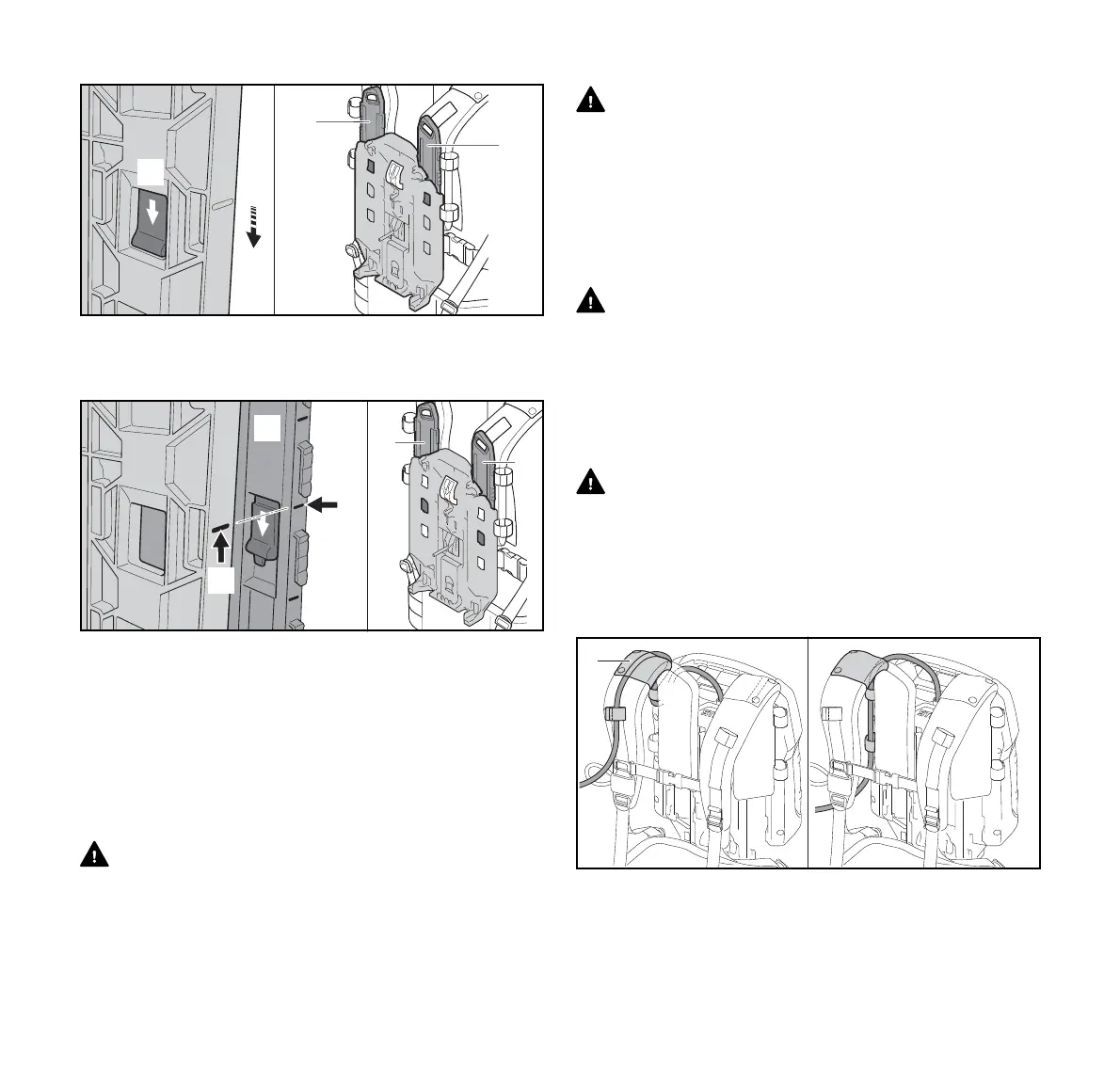

► Depress the locking tab (1) and push it in the direction of
the arrow.
► Remove the slide (2).
► Line up mark (3) with mark (4).
► Insert the slide (2).
► Pull the slide up (opposite the direction of the arrow).
It will engage with a click.
► Adjust the slide at the left and right shoulder straps to the
same position.
13.2 Positioning the Connecting Cord
WARNING
If using an AR series battery or AP series battery in a battery
bag with connecting cord always use a lift bucket for in-tree
use and maintenance. Do not climb in the tree.
WARNING
Place your left hand on the front handle and your right hand
on the control handle. Left-handers must follow these
instructions too. (See illustration, Chapter @ 5.5.2). One-
handed operation increases the risk of injury. Accordingly, to
reduce the risk of personal injury, run the connecting cord
through the guide on the shoulder strap on the opertor's right
side only. Never run the cord through the guides on the
shoulder strap on the operator's left side.
WARNING
To reduce the risk of injury from tripping or losing control of
the chain saw, always secure the connecting cord through
the backpack guides and with the hook and eye fasteners as
described below. Position and secure the connecting cord
on your right side and so that it will not interfere with proper
working technique or your ability to maintain control of the
chain saw.
WARNING
Manage the cord to prevent it from contacting the saw chain
or catching on objects, which could cause you to lose
balance or control of the chain saw, resulting in serious
personal injury and property damage.
The connecting cord can be secured in different positions
and adjusted to suit the height and reach of the operator.
The connecting cord can run through the guide (1) on the
shoulder strap (Illustration A), or along the back
plate (Illustration B). Secure the connecting cord to the
harness with the hook and eye fasteners (2) on the right side
1
2
2
0000-GXX-A271-A0
S
M
L
4
3
2
2
2
0000-GXX-A272-A1
1
2
2
2
2
A B
0000-GXX-C577-A0
