MSE 140 C, MSE 160 C, MSE 180 C, MSE 200 C
1 Guide bar
2 Oilomatic saw chain
3 Bumper spike
4 Front hand guard
5 Front handle
6 Oil filler cap
7 Trigger switch lockout
8 Rear handle
9 Rear hand guard
10 Trigger switch
11 Oil inspection window
# Serial number
20 Overload circuit breaker
(MSE 140 C, 160 C, 180 C)
LED indicator for overload
(MSE 200 C)
21 Chain sprocket
22 Side chain tensioner
23 Front chain tensioner
24 Chain sprocket cover
25 Chain catcher
26 Chain sprocket cover with quick
chain tensioner
27 Adjusting wheel
28 Handle for wingnut

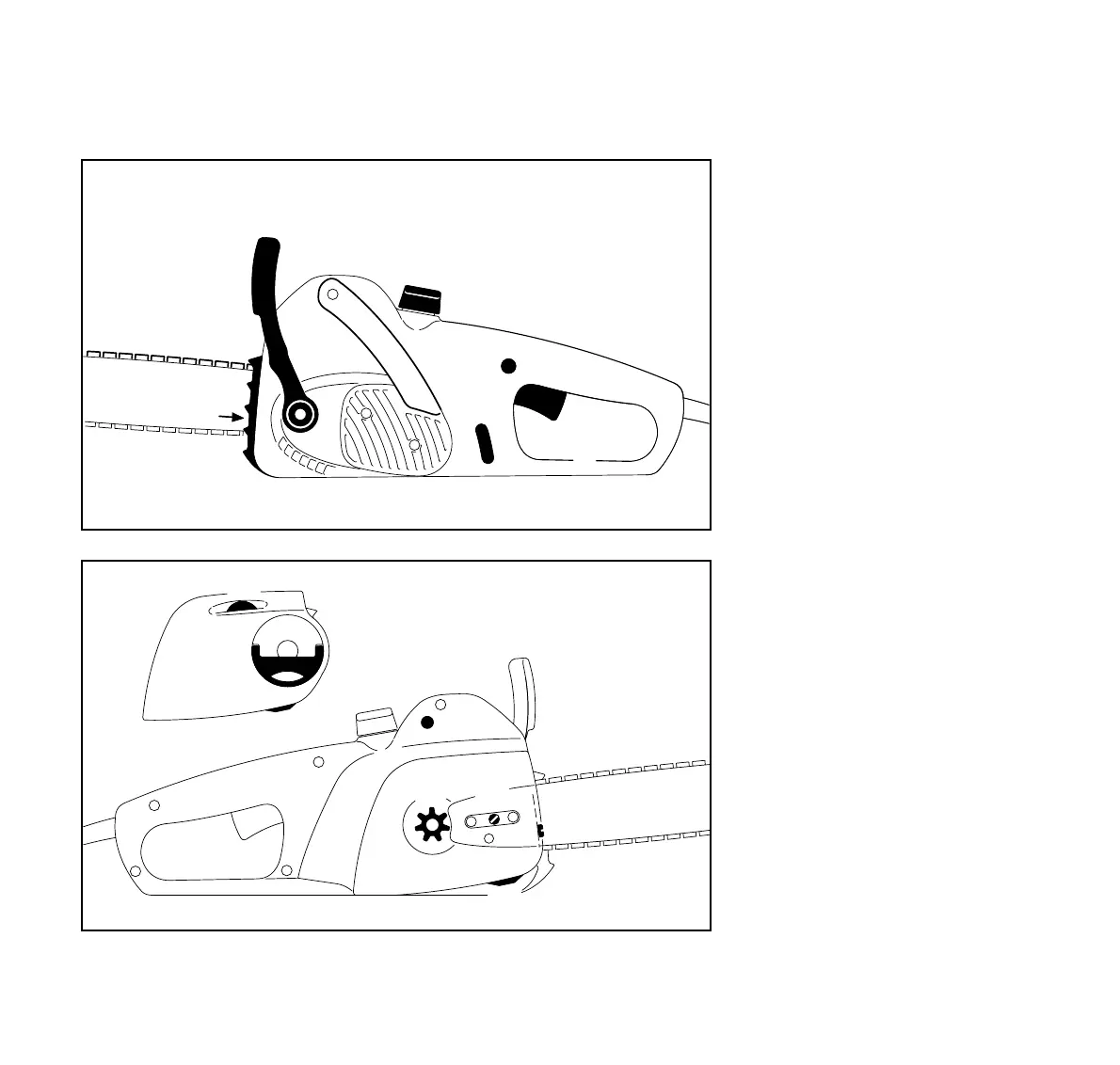

Main Parts of the Saw
11
1
2
3
4
5
6
7
8
9
10
#
100BA031 KN
20
21
22
23
24
25
26
27
28
25
100BA023 KN
