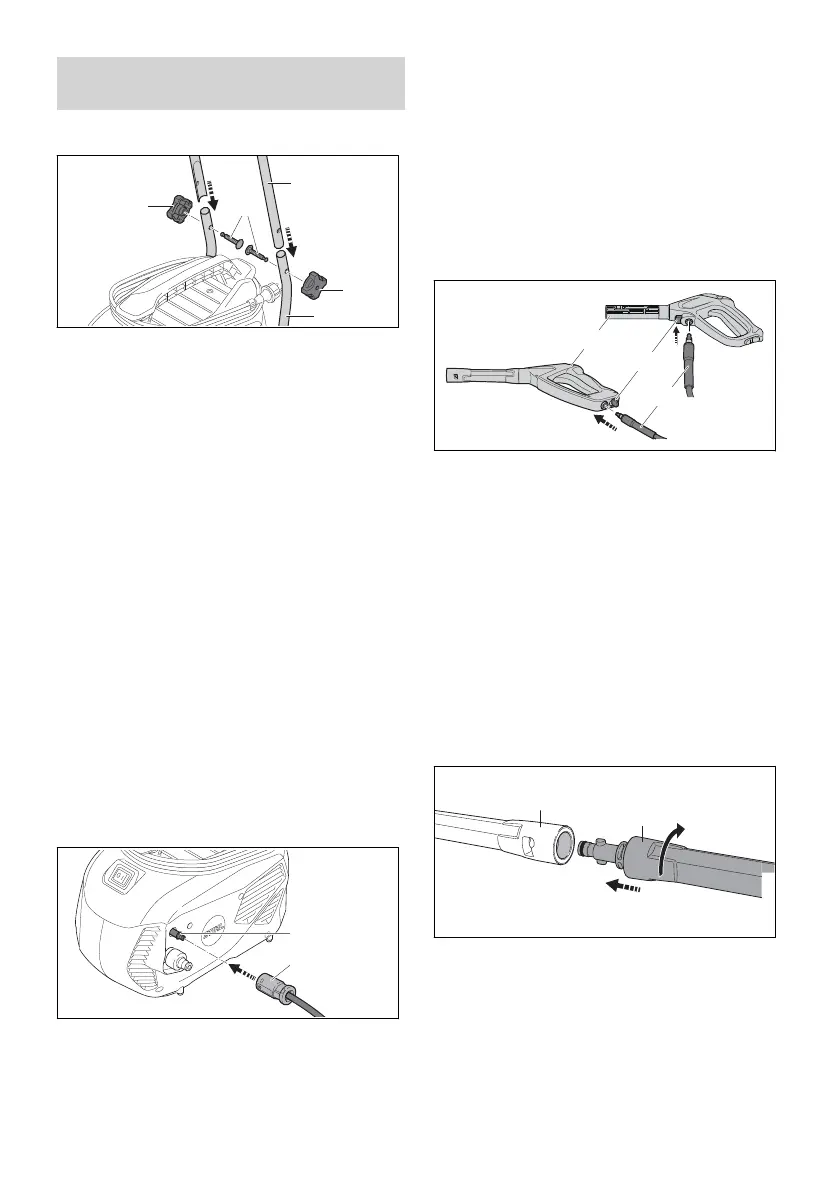

6 Assembling the pressure
washer
6.1 Attaching the Handlebar
► Push the handlebar (1) onto the chassis (3) in
such a way that the holes are aligned.
► Insert the screws (4) through the holes.
► Screw on star knob nuts (2) and tighten firmly.
6.2 Folding Up and Folding the
Handlebar
6.2.1 Unfolding and Folding-Up the Handle‐
bar
To unfold the handlebar:
► Unfold the handlebar and align it parallel to the
chassis
► Tighten the star knob nuts firmly.
The handlebar is firmly connected to the high-
pressure washer.
To fold up the handlebar:
► Hold the handlebar firmly and release the star
knob nuts.
► Fold the handlebar up and towards the front.
6.3 Fitting and removing the high-
pressure hose
6.3.1 Attaching and Detaching the High-
Pressure Hose
Attaching the high-pressure hose:
► Push the coupling (1) onto the connector (2).
The coupling (1) engages with an audible
click.
► If the coupling (1) is difficult to push onto the
connector: Lubricate the gasket on the con‐
nector (2) with a grease suitable for faucets.
Removing the high-pressure hose:
► Disconnect the coupling (1)
6.4 Attaching and removing the
spray gun
6.4.1 Attaching and Detaching the Spray
Gun
Attaching the spray gun:
► Slide the connector (3) into the spray gun (1).
The connector (3) engages with an audible
click.
► If the connector (3) cannot be easily pushed
into the spray gun (1): Grease the gasket on
the connector (3) with grease for fittings.
Detaching the spray gun:
► Press and hold the locking lever (2).
► Pull out the connector (3).
6.5 Attaching and removing the
spray lance
6.5.1 Fitting and Removing the Spray Lance
► Push spray lance (1) into spray gun (2).
► Twist the spray lance (1) clockwise until it
engages.
► If the spray lance (1) is difficult to push into the
spray gun (2): Grease the gasket on the spray
lance (1) with a suitable lubricant.
Removal:
