7 Assembling the Lawn Mower

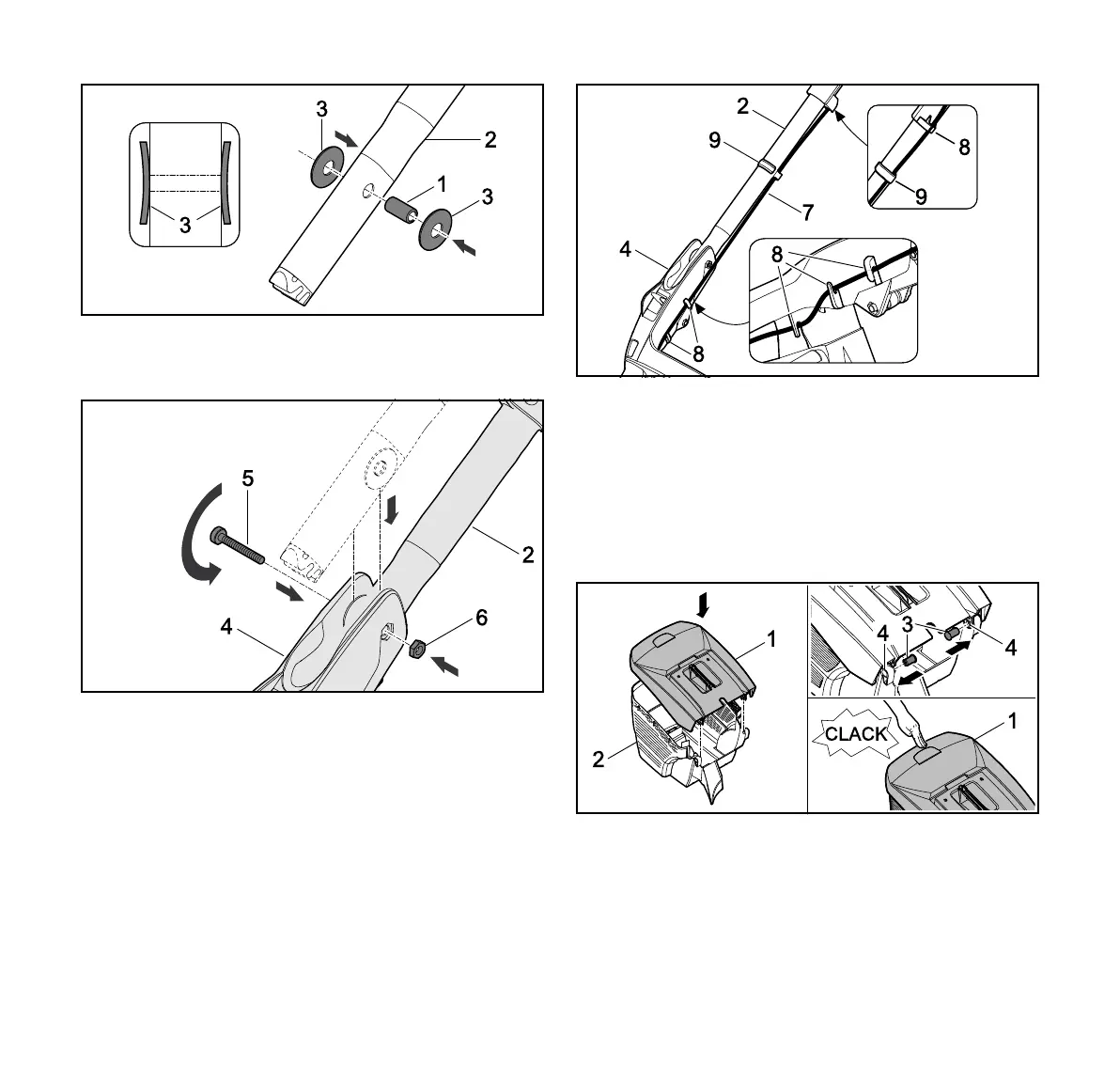

► Press sleeve (1) into the bores in upper handlebar (2).
► Fit spring washers (3) with the convex side facing inwards
onto sleeve (1).
► Guide upper handlebar (2) into handlebar bracket (4).
► Push bolt (5) through the bores in handlebar bracket (4)
and the sleeve in upper handlebar (2).
► Place nut (6) in the notch in handlebar bracket (4).
► Tighten bolt (5).
► Press cable (7) into holders (8).
► Fasten cable (7) to the handlebar using cable clip (9).
The handlebar must not be dismantled again.
7.2 Assembling, Attaching and Detaching the Grass
Catcher Box
7.2.1 Assembling the Grass Catcher Box
► Fit upper part of grass catcher box (1) onto lower part of
grass catcher box (2).
► Press pins (3) through openings (4) from the inside.
► Press upper part of grass catcher box (1) downwards.
The upper part of the grass catcher box engages with a
click.
