18 Maintenance
► Upend the lawn mower.
► Clean the area around the blade and the blade with a
stick, a soft brush or a damp cloth.
17.3 Cleaning the Battery
► Clean the battery with a damp cloth.

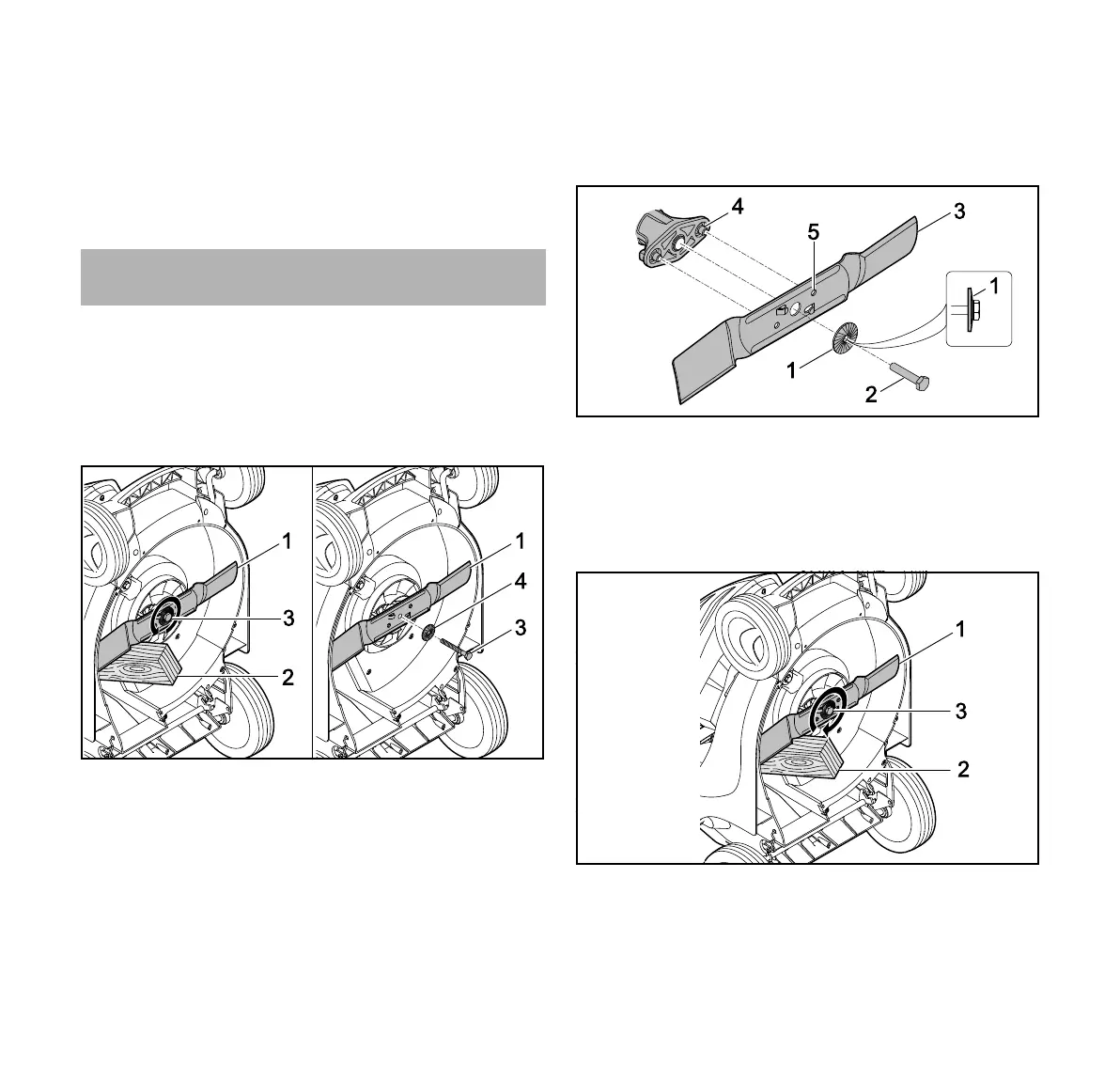

18.1 Removing and Attaching the Blade
18.1.1 Removing the Blade
► Switch the lawn mower off, pull out the activation key and
remove the battery.
► Upend the lawn mower.
► Block blade (1) using a piece of wood (2).
► Unscrew screw (3) in the direction of the arrow and
remove together with washer (4).
► Remove blade (1).
► Discard screw (3) and washer (4).
Use a new screw and washer to attach blade (1).
18.1.2 Attaching the Blade
► Switch the lawn mower off, pull out the activation key and
remove the battery.
► Upend the lawn mower.
► Lay new washer (1) on new screw (2) with the convex side
facing outwards.
► Apply Loctite 243 thread locker to the thread of screw (2).
► Position blade (3) so that the raised areas on contact
area (4) engage in notches (5).
► Screw in screw (2) together with washer (1).
► Block blade (1) using a piece of wood (2).
► Tighten screw (3) to 65 Nm.
