104 SR 430, SR 450

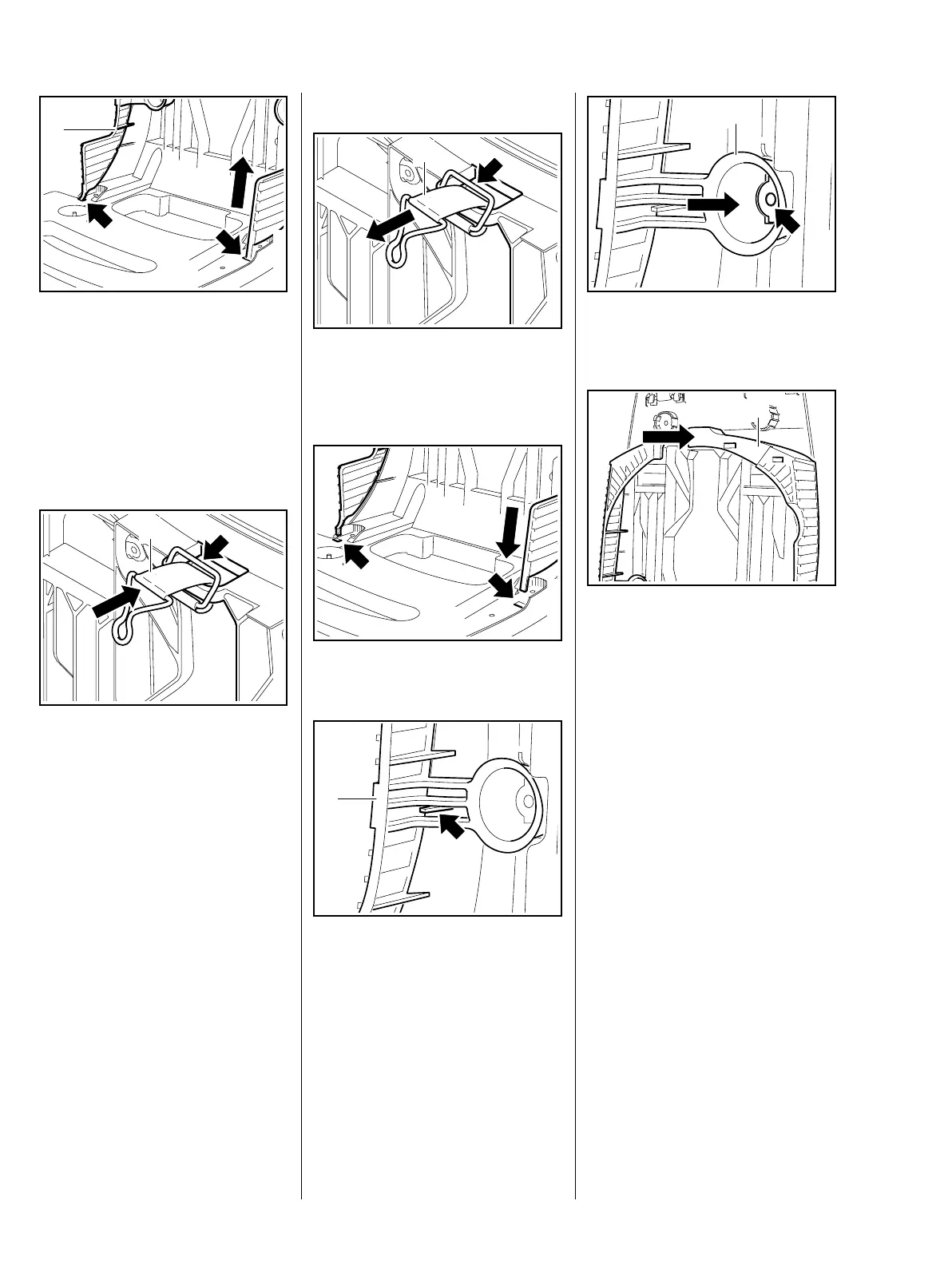

: Pull the protective screen (1) out
of the slots (arrows).
– Inspect clamping strap and
transfer if necessary.
– Inspect harness straps and
transfer if necessary, b 11.3
: Push the clamping strap (1)
through the loop (arrow) and
remove it.
0002RA437 TG
1
0002RA483 TG
1
Installing
: Pass the clamping strap (1)
around the seat and through the
loop (arrow).
: Push lugs into the slots (arrows).
: Place the protective screen (1) in
position so that the lugs (arrow)
are above the first web.
0002RA484 TG
1
0002RA438 TG0002RA439 TG
1
: Push the spring seats (1) into the
seats (arrow).
: Push the protective screen (1)
into position until it snaps into
place.
– Install the blower housing,
b 10.8
– Reassemble all other parts in the
reverse sequence.
0002RA440 TG
1
0002RA441 TG
1

Stihl SR 450 Specifications

General

Product type	Backpack garden sprayer
Product color	Black, Orange, White
Tank capacity	14 L

Weight and Dimensions

Weight	12800 g
