47SR 430, SR 450

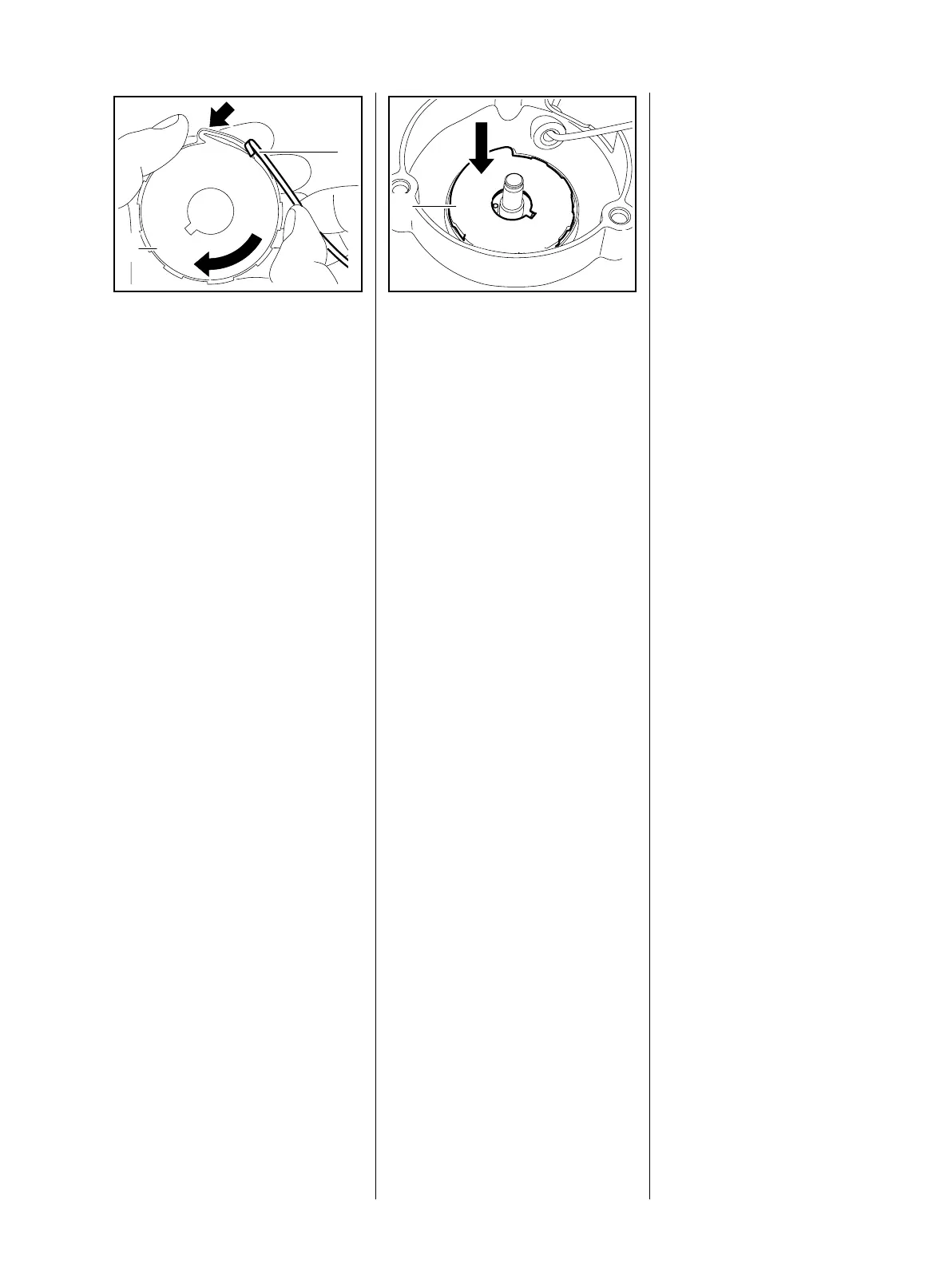

: Engage the outer spring loop (1)
on the guide (arrow) in the spring
housing.
: Fit the rewind spring (1) in the
spring housing (2) in the
clockwise direction, from the
outside inwards.
– Hold the spring windings so that
they cannot pop out.
Make sure the rewind spring is
properly
seated.
0002RA129 TG
1
2
– Fit the rewind spring with housing
in position.
Take care to ensure the rewind
spring is not pushed out of the
spring housing by the starter post
– The rewind spring may pop out
and unwind.
: Push the rewind spring with
spring housing (1) into its seat in
the starter cover.
Make sure that the spring
housing (1) is properly seated.
– Install the rope rotor, b 6.4
– Install the pawls, b 6.3
– Lubricate pegs on pawls with
grease, b 13
– Tension the rewind spring, b 6.6
– Reassemble all other parts in the
reverse sequence.
0002RA128 TG
1
