53SR 430, SR 450

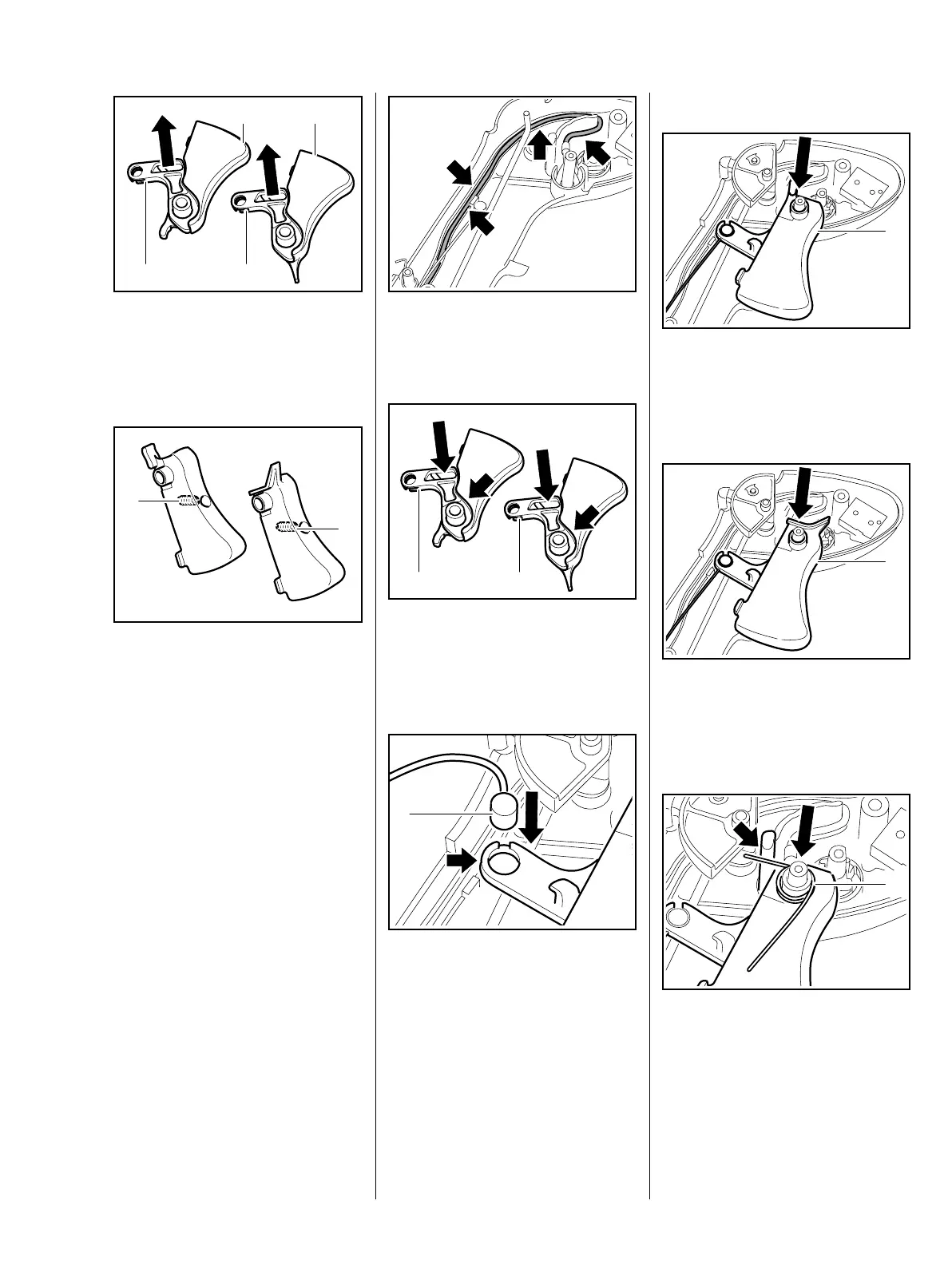

: Pull the lever (1) off the throttle
trigger (2).
Installing
– Check that the grub screw (1) is
in place, fit a new grub screw if
necessary.
A new throttle trigger comes with
the grub screw already fitted.
– The throttle cable must be
readjusted if a new throttle trigger
is installed or the position of the
grub screw is changed, b 9.8.1
0002RA154 TG
1
22
1
0002RA156 TG
1
1
The ground and short circuit wires
must be properly seated in the
guides (arrows).
: Push the lever (1) into the throttle
trigger so that it fits snugly
against the throttle trigger
(arrow).
: Push the throttle cable nipple (1)
into the lever and engage it in the
slot (arrow).
0002RA157 TG
0002RA158 TG
11
0002RA159 TG
1
Version with throttle limiter
: Push the throttle trigger (1) onto
the pivot pin.
Version with throttle lock
: Push the throttle trigger (1) onto
the pivot pin.
Both versions
: Fit the torsion spring (1) on the
throttle trigger and position its
short leg against the web (arrow).
0002RA160 TG
1
0002RA500 TG
1
0002RA161 TG
1
