Subaru EX17 Service Manual

- 15 -
Step Parts to remove Remarks and procedures Fasteners
1 Drain the engine oill (1) Remove a drain plug (M14×12mm)
located on both sides of the case.
Take care not to lose the gaskets.
(2) To discharge oil quickly, remove the oil
guage.
14 mm spanner

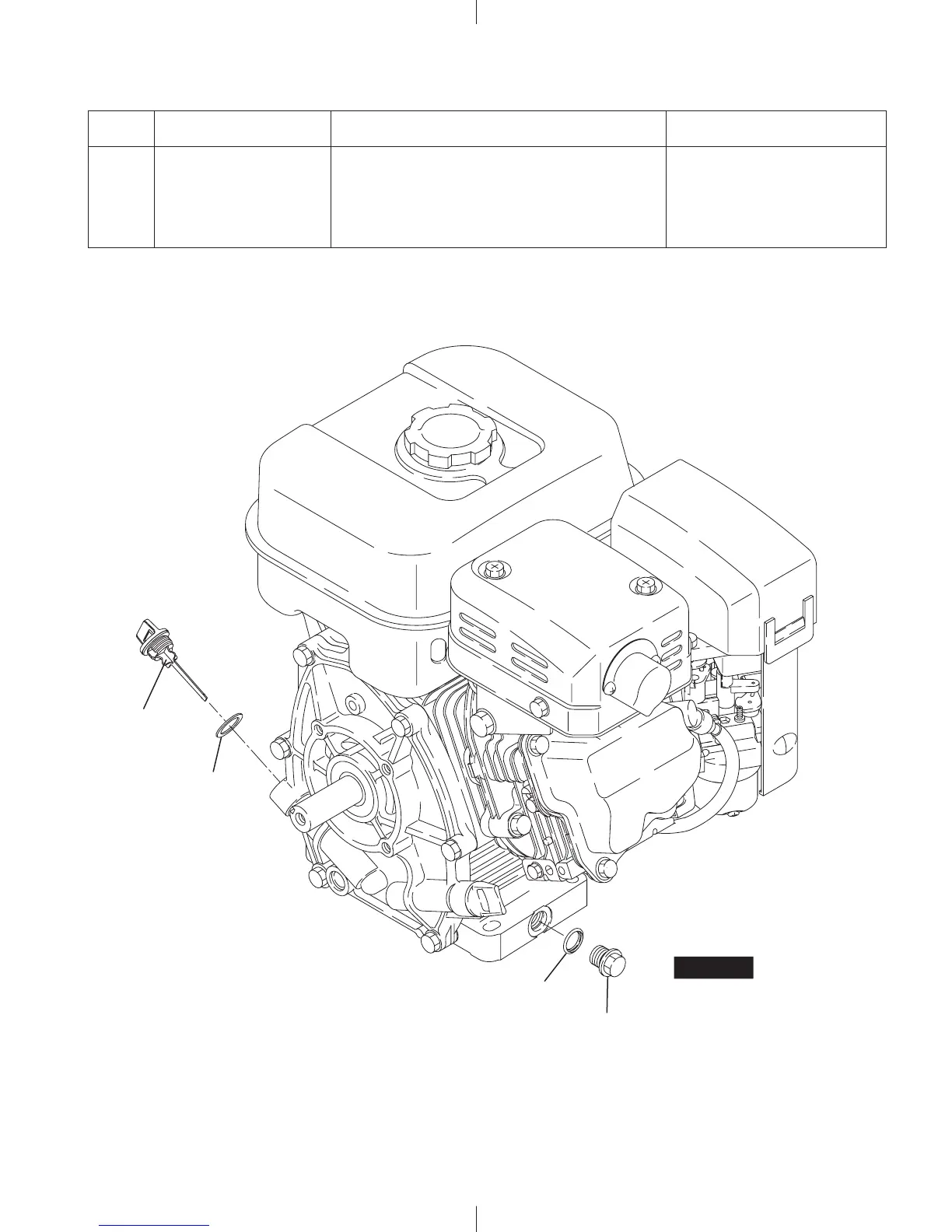

Fig. 5-2
OIL GAUGE
GASKET
GASKET
DRAIN PLUG
STEP 1
5-3 DISASSEMBLY PROCEDURE

Subaru EX17 Specifications

General

Displacement	169 cc
Compression Ratio	8.5:1
Maximum Output	4.2 kW (5.7 HP) / 4000 rpm
Ignition System	Transistorized magneto ignition
Starting System	Recoil starter
Dry Weight	15.0 kg
Oil Capacity	0.6 L
Bore x Stroke	67.0 x 48.0 mm
Maximum Torque	2500 rpm
Fuel Tank Capacity	3.6 L
Engine Type	4-stroke, OHV, single cylinder, air-cooled
