Subaru EX17 Service Manual

- 4 -

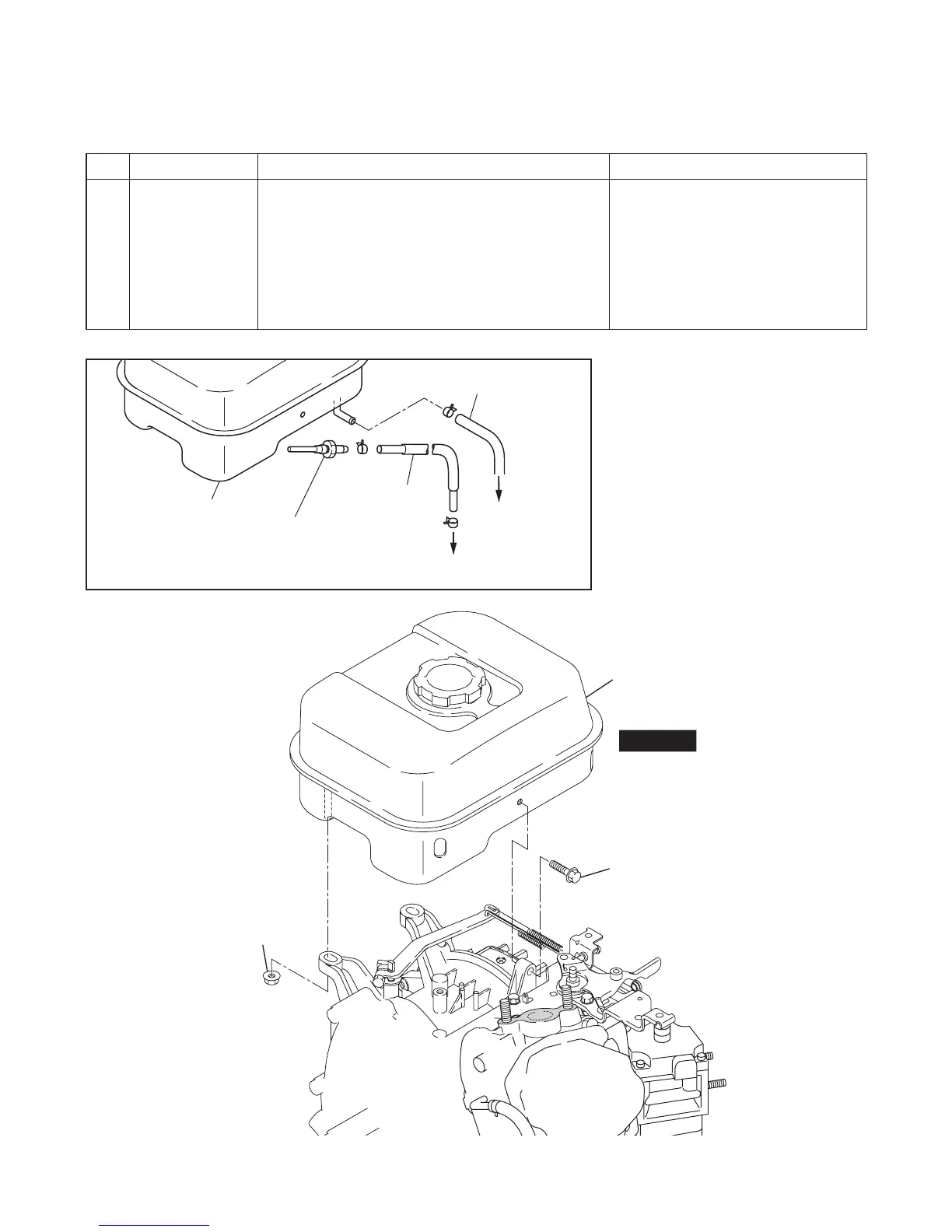

3-3 DISASSEMBLY PROCEDURES (DIFFERENCE)
Step Parts to remove Renarks and procedures Parts Fasteners
7
Fuel tank (1) Drain fuel from the tank.
(2) Remove the fuel tank mounting nuts and bolts from
the crankcase.
(3) Disconnect the fuel pipe from the tank outlet.
(See Fig. 3-1)
(4) Disconnect the fuel return line from the bottom of the
fuel tank. (See Fig. 3-1)
(5) Remove the fuel tank from the crankcase
10 mm spanner or box wrench
M6 nut : 2 pcs.
M6 × 25mm : 1 pc.
To throttle body
(Inlet fuel)
To throttle body
(Return)
FUEL TANK CP
FUEL PIPE
(FUEL INLET)
FUEL PIPE
(RETURN)
UNION
(FINE MESH FUEL FILTER)
Fig. 3-1
STEP 7
FUEL TANK
M6 x 25 BOLT : 1 pc.
M6 NUT : 2 pcs.

Subaru EX17 Specifications

General

Displacement	169 cc
Compression Ratio	8.5:1
Maximum Output	4.2 kW (5.7 HP) / 4000 rpm
Ignition System	Transistorized magneto ignition
Starting System	Recoil starter
Dry Weight	15.0 kg
Oil Capacity	0.6 L
Bore x Stroke	67.0 x 48.0 mm
Maximum Torque	2500 rpm
Fuel Tank Capacity	3.6 L
Engine Type	4-stroke, OHV, single cylinder, air-cooled
