- 7 -
3-4 REASSEMBLY PROCEDURES (DIFFERENCE)

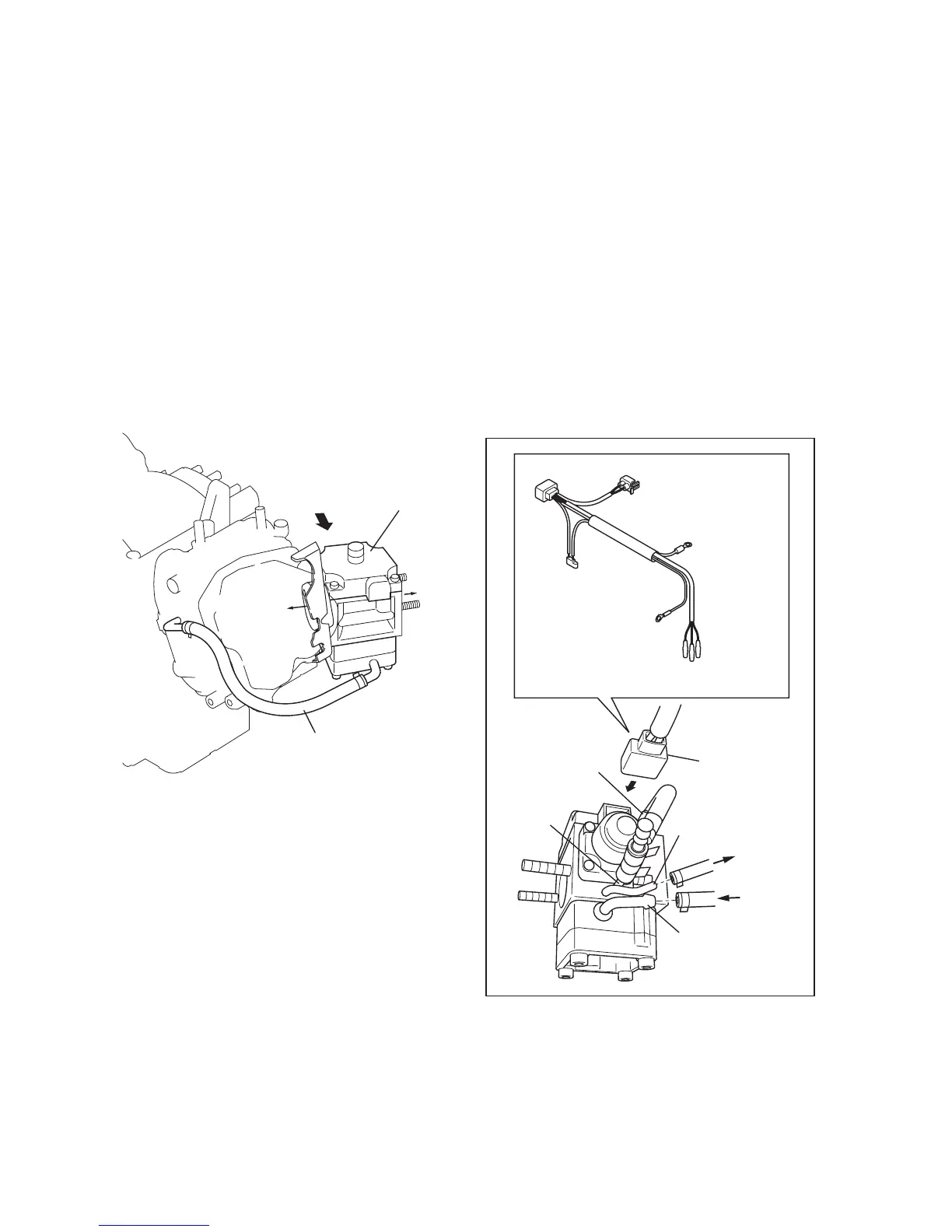

(22) THROTTLE BODY
(a) Replace the gasket of insulator with a new one and mount the insulator on the cylinder head
intake side.
(b) Mount the throttle body keeping the wire harness plugged into the throttle body.
Re-connect the fuel pump pulse line from the throttle body. Leaving the wire harness plugged
into the throttle body, re-connect the EFI wire harness to the engine. Connect the harness
ground (black) to the top of the crankcase.
Connect the engine temperature sensor (yellow) to the back throttle bracket mounting hole on
top of the throttle bracket. Connect the low oil sensor lead (orange) and the power generation
lead (red) to the harness.
(26) FUEL TANK
(1) Connect the fuel pipe and fix it with a clamp.
(2) Connect the fuel pressure return pipe and fix it with a clamp.
(3) Mount the fuel tank on the crankcase.
Pulse
Air
cleaner
side
A
VIEW A
THROTTLE BODY
Wire harness
Fuel
injection
Ignition coil
ECU
Injection
Yellow:
Speed control
bracket
Black:
(Earth wire)
Red:
Power coil
Black:
Stop switch
Orange:
Oil sensor
Inlet fuel
Return to
fuel tank
Return
Inlet to
fuel pump
Outlet
injection
Engine
side
To Next Page
