Install the timing belt

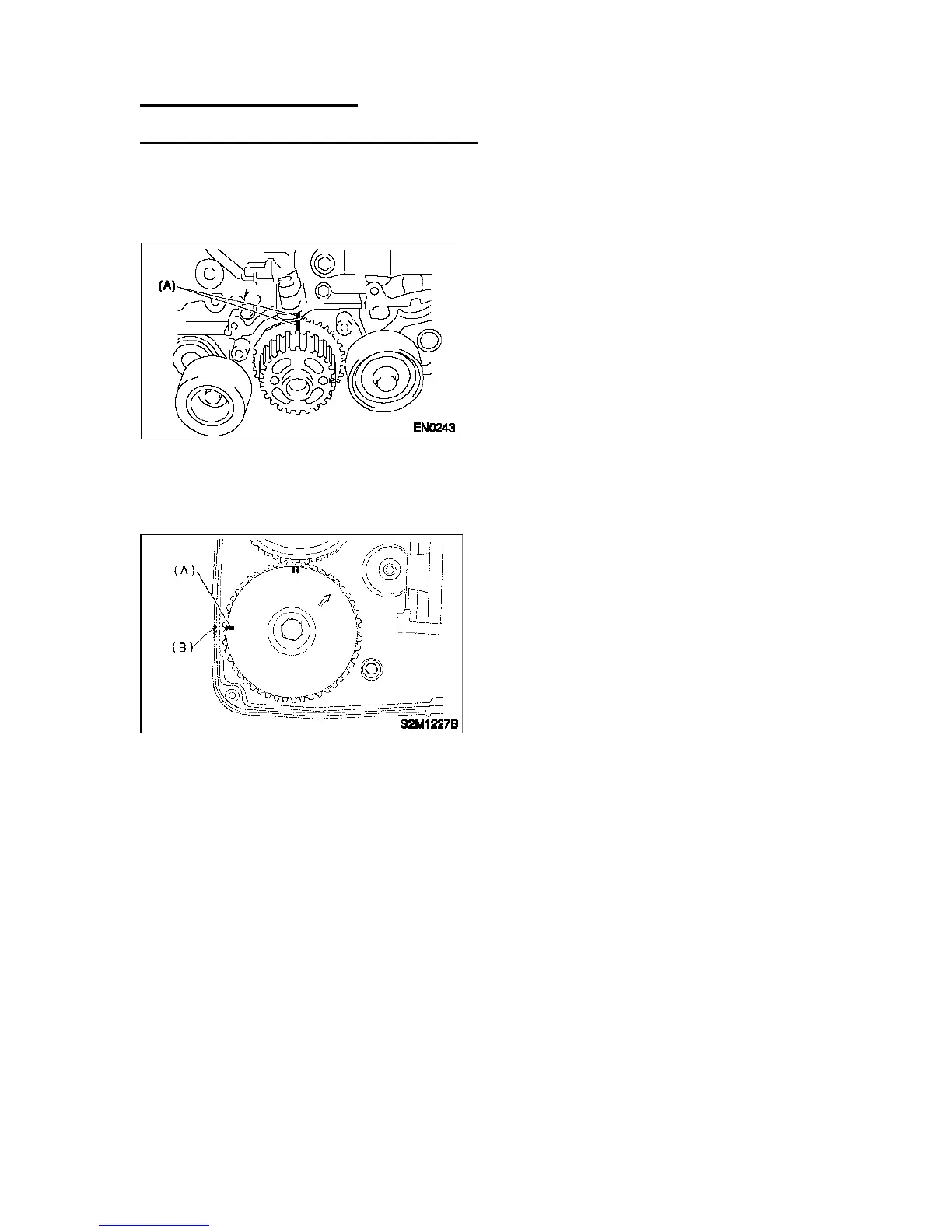

Crankshaft and camshaft sprocket alignment

(1) Align mark (A) on the crankshaft sprocket

with mark on the oil pump cover at cylinder

block.

(2) Align single line mark (A) on the right-hand

exhaust camshaft sprocket with notch (B) on

belt cover.

(3) Align single line mark (A) on the right-hand

intake camshaft sprocket with notch (B) on belt

cover.

(Make sure double lines (C) on intake camshaft
