Subaru STi TIMING BELT User Manual

4
2) If the alignment mark and/or arrow mark (which
indicates rotation direction) on timing belt fade
away, put new marks before removing the timing
belt as follows:
(A) Turn the crankshaft using ST 499987500 and align
alignment marks on crankshaft sprocket, lefthand
intake camshaft sprocket, left-hand exhaust
camshaft sprocket, right-hand intake camshaft
sprocket and right hand exhaust camshaft
sprocket with notches of belt cover and cylinder
block.

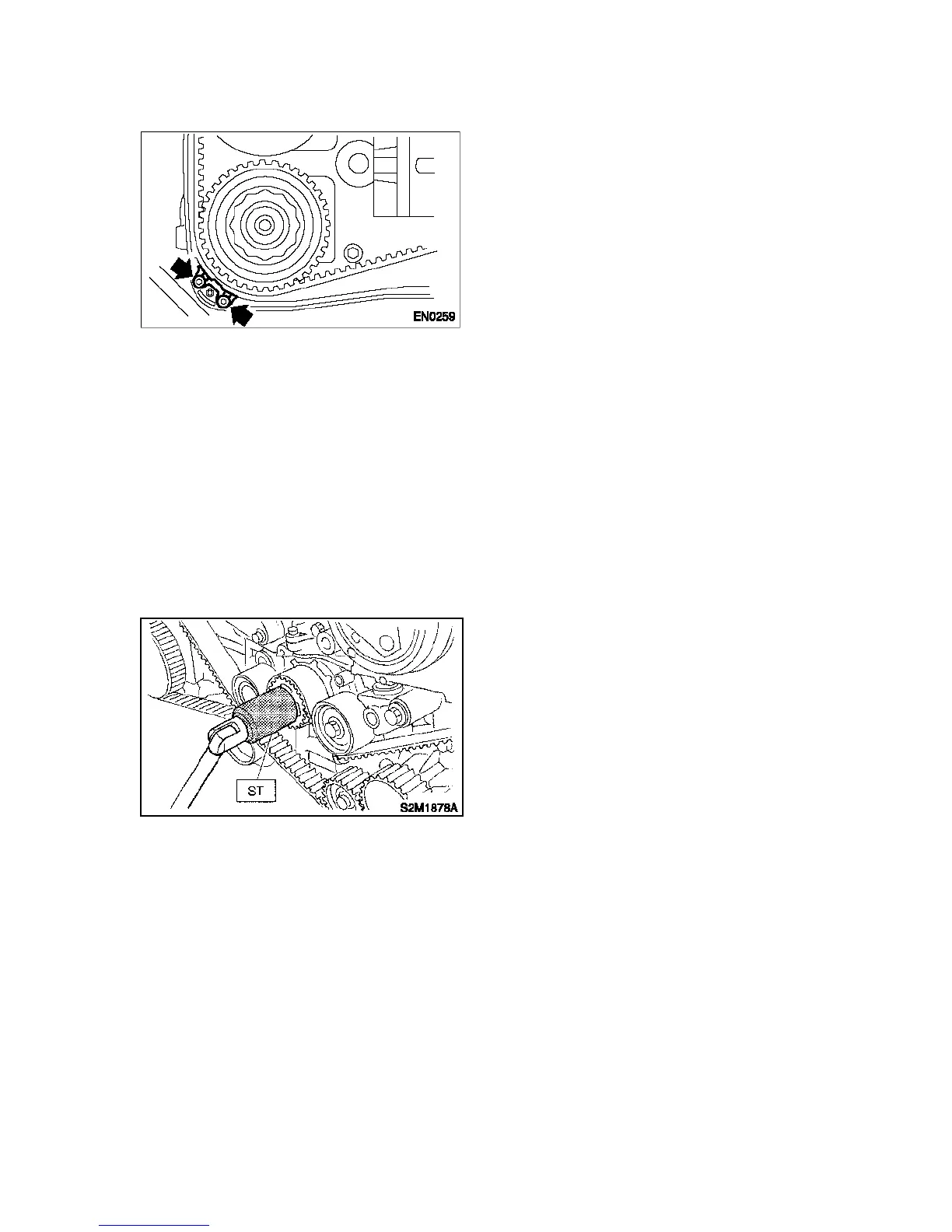

ST 499987500 CRANKSHAFT SOCKET
(B) Using white paint, put alignment and/or arrow
marks on the timing belts in relation to the
sprockets.
