Subaru STi TIMING BELT User Manual

16
Tightening torque:
5 N·m (0.5 kgf-m, 3.6 ft-lb)

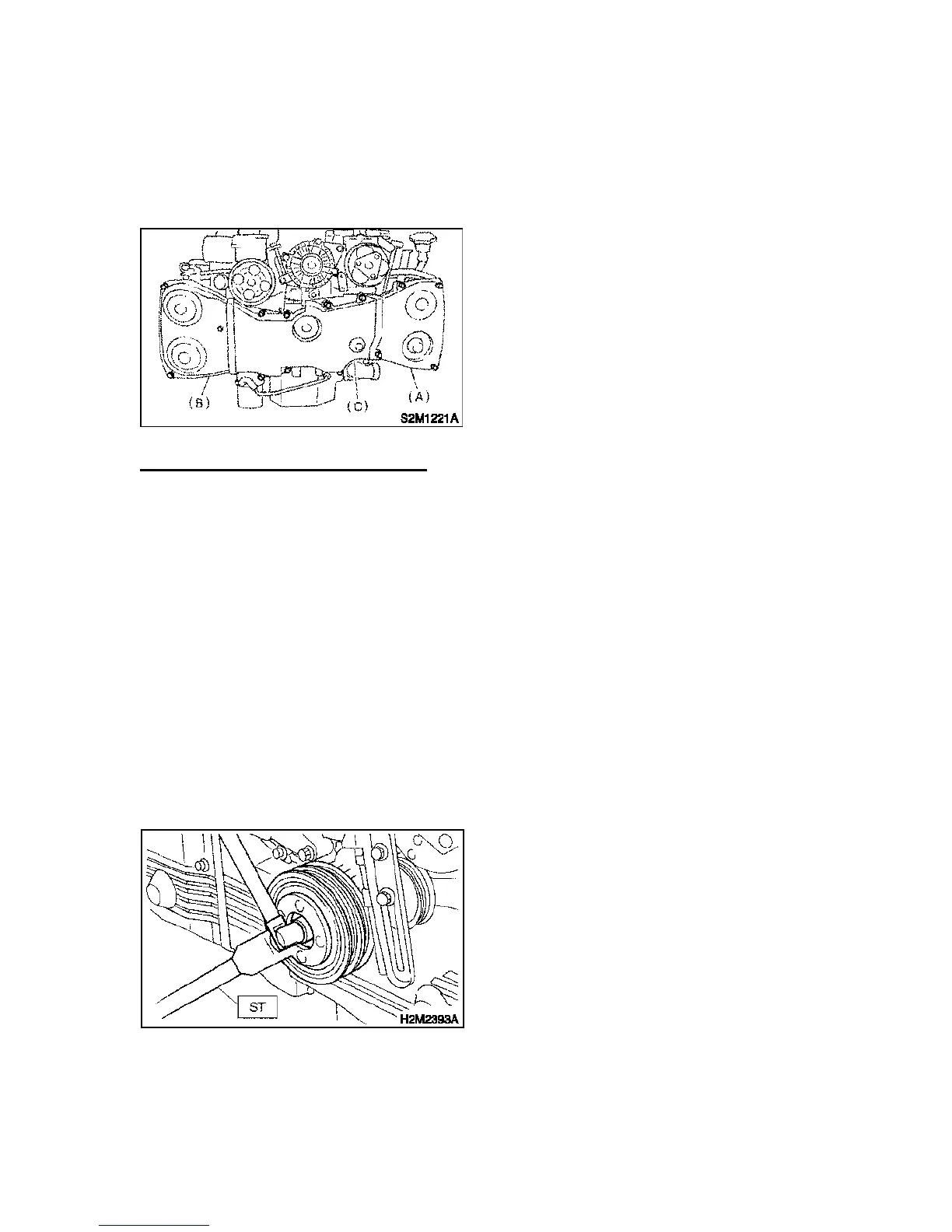

3) Install the left-hand belt cover (A).
Tightening torque:
5 N·m (0.5 kgf-m, 3.6 ft-lb)
Install the crankshaft pulley
1) Install the crankshaft pulley.
2) Install the pulley bolt.
To lock the crankshaft, use:
ST 499977300 CRANKSHAFT PULLEY
WRENCH
(3) Clean the crankshaft pulley thread using an
air jet.
(4) Apply engine oil to the crankshaft pulley bolt
seat and thread.
(5) Tighten the bolts temporarily with tightening
torque of 44 N·m (4.5 kgf-m, 33 ft-lb).
(6) Tighten the crankshaft pulley bolts.
Tightening torque:
127 N·m (13 kgf-m, 94.0 ft-lb)
7) Confirm that the tightening angle of the crankshaft
pulley bolt is 45 degrees or more. If not, conduct
the following procedures (1) through (4).
