Chapter 1: Introduction

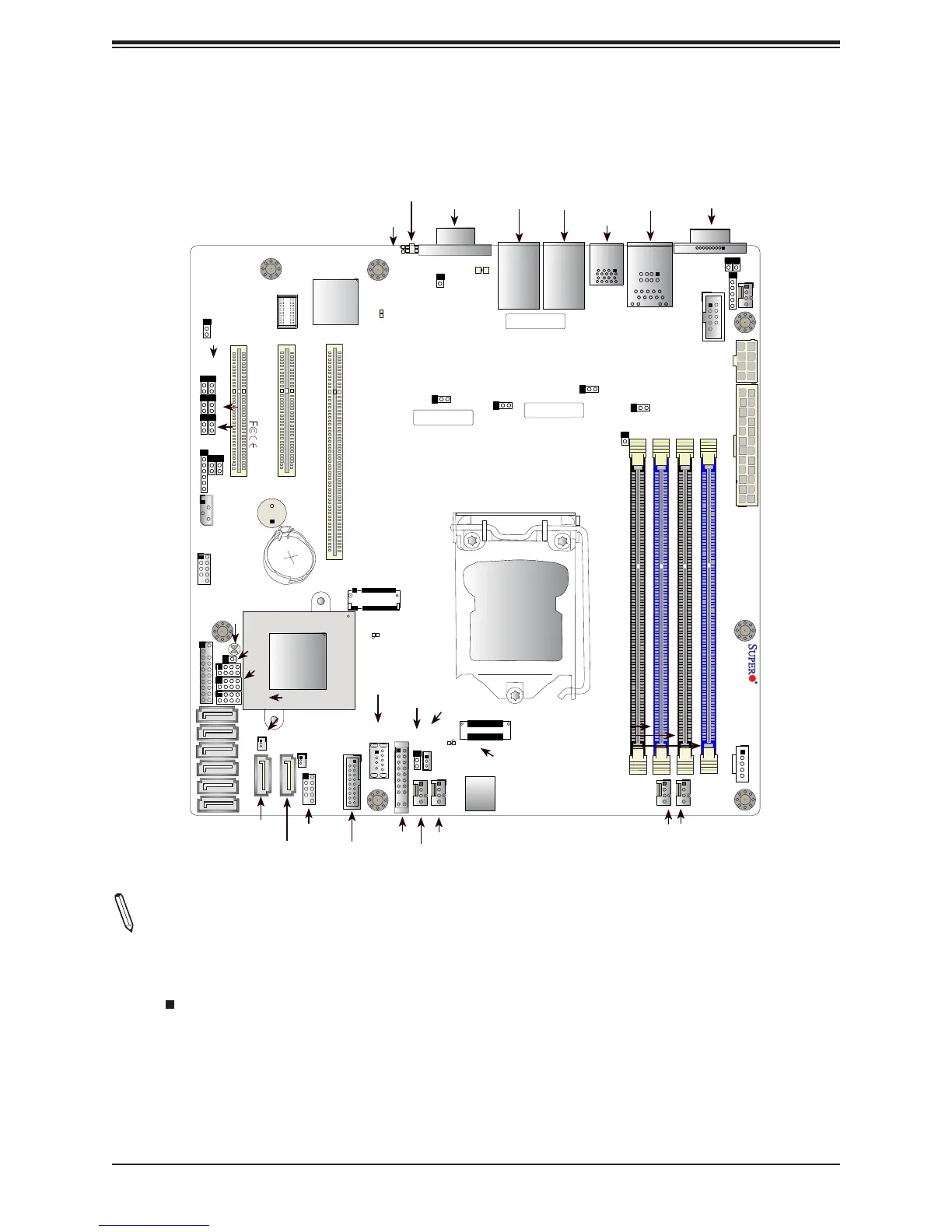

Quick Reference
Notes:
• See Chapter 2 for detailed information on jumpers, I/O ports, and JF1 front panel con-
nections.
• " " indicates the location of Pin 1.
• Jumpers/components not indicated are for testing only.
• When LEDPWR (Onboard Power LED indicator) is on, system power is on. Unplug the
power cable before installing or removing any components.
VGA
LAN2
LAN1
USB6/7
USB0/1
COM1
IPMI_LAN
JUIDB1
LE1
LAN3
LAN4
J7
J8
FAN4
COM2
JPWR2
JPWR1
FAN2FAN1
JPI
2
C1
FAN3
FANA
USB8/9
JF1
USB4/5
I-SATA0
I-SATA1
LEDPWR
JSTBY1
JWD1
USB10
I-SATA2
I-SATA3
I-SATA4
I-SATA5
I-SATA6
I-SATA7
JSD1
JSD2
JTPM1
LE3
J23
BT1
USB2/3
JIPMB1
JD1
JI2C1
SP1
JPB1
JBR1
JPG1
JPL4
JPL2
JPL3
JPL1
LEDBMC
JOH1
J7 J8
FAN4
JPWR2
JPWR1
JPL1
JPL3
I-SATA3
I-SATA2
JSD2
JSD1
JL1
LAN 1/3
LAN 2/4
USB 6/7
(3.0)
COM 1
JOH1
JUIDB1
DIMMB2
DIMMB1 DIMMA2
DIMMA1
J23
SP1
USB 2/3
JI2C2
JI2C1
JPB1
JPME2
JPG1
BAR CODE
MAC CODE
IPMI CODE
I-SGPIO2
I-SGPIO1
Intel PCH
USB 0/1
IPMI_LAN
VGA
LED BMC
COM2
JPL2
JPL4
JPI2C1
FAN1
FAN2
LED PWR
JSTBY1
JWD1
FAN3
FANA
JF1
USB 8/9
(3.0)
USB 10
(3.0)
USB 4/5
JTPM1
JBT1
JIPMB1
JD1
JBR1
PCH SLOT4 PCI-E 3.0 x4in x8
CPU SLOT5 PCI-E 3.0 x8
CPU SLOT6 PCI-E 3.0 x8in x16
BIOS
LICENSE
BMC
LE1
I-SATA7
I-SATA6
I-SATA5
I-SATA4
I-SATA1 I-SATA0
LE3
X11SSH-F/-LN4F
REV:1.01 Designed in the USA
JVRM2
BT1
CPU
DIMMA2
DIMMB1
DIMMA1
DIMMB2
I-SGPIO1
I-SGPIO2
JL1
JBT1
JI2C2
JPME2
